995310 (CL-125) - Gravely 25" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Drive Roller Assembly Parts Diagram

25" Walk-Behind Reel Mower, Kohler

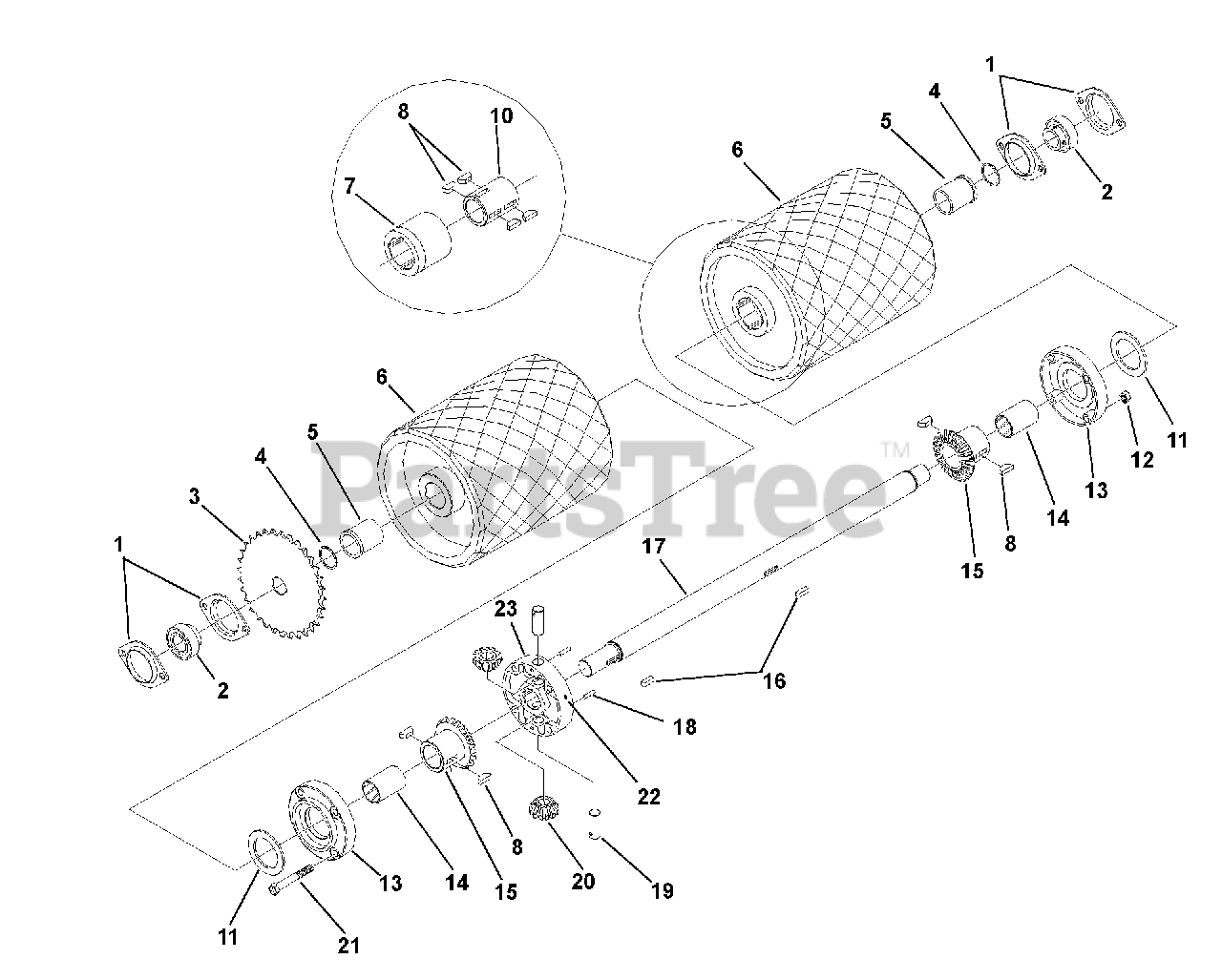

Drive Roller Assembly Parts Diagram

  • Title
1

Gravely 02814400

Bearing Flange

$

$

Not available

2

$

$

Not available

3

Gravely 02793300

Sprocket, 40-Tooth

$

$

Not available

4

Gravely 05700112

Snap Ring, Axle

$

$

Not available

5

$

$

Not available

6

Gravely 02817000

Roller, Traction

$

$

Not available

7

Gravely 02814500

Roller, Extension (995313)

Note: (995313)

$

$

Not available

8

Gravely 02863300

Key, Woodruff .25 x .875 (995310)

Note: (995310)

$

$

Not available

9

Gravely 02863300

Key, Woodruff .25 x .875 (995313)

Note: (995313)

$

$

Not available

10

Gravely 05500504

Sleeve, Keyed

$

$

Not available

11

$

$

Not available

12

Gravely 06500432

Nut, Hex .38-24

$

$

Not available

13

Gravely 02883100

Plate, Side

$

$

Not available

14

$

$

Not available

15

Gravely 02882500

Gear, Differential Axle With Bushing

$

$

Not available

16

Gravely 06600110

Key, Square .25 x .25 x .75

$

$

Not available

17

Gravely 02771000

Axle, 25-Inch (995310)

Note: (995310)

$

$

Not available

Gravely 02771100

Axle, 30-Inch (995313)

Note: (995313)

$

$

Not available

18

Gravely 02846900

Pin, Groove .187 x 1

$

$

Not available

19

Gravely 02882900

Shaft, Differential Pinion

$

$

Not available

20

$

$

Not available

21

Gravely 05901219

Cap Screw, Hex Head .38-24 x 2.75

$

$

Not available

22

Gravely 07000916

Grease Fitting .25-28

$

$

Not available

23

Gravely 02883000

Plate, Center

$

$

Not available
