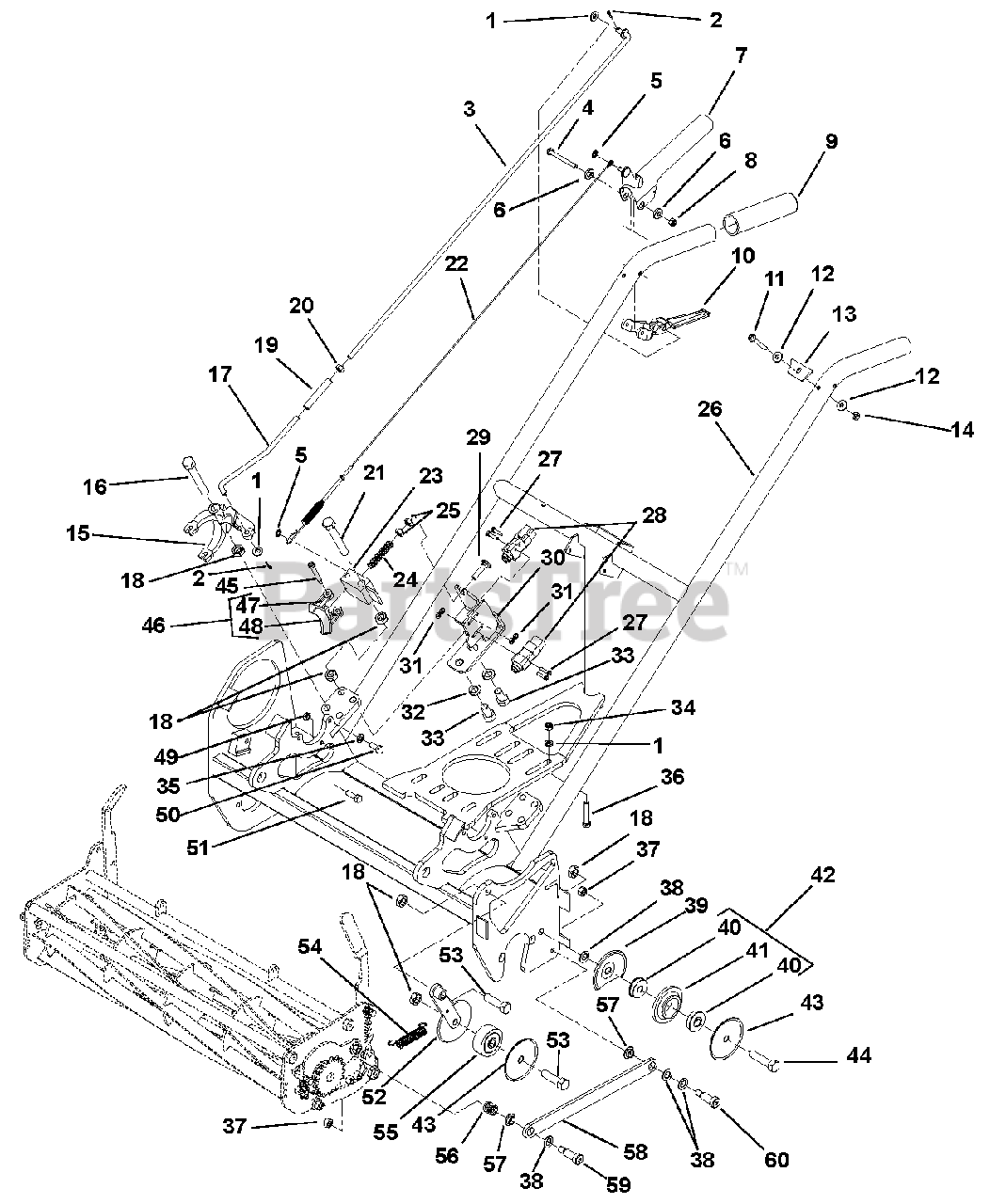

995313 (CL-130) - Gravely 30" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Frame Assembly- Left Side Parts Diagram

30" Walk-Behind Reel Mower, Kohler

Frame Assembly- Left Side Parts Diagram

  • Title

1

Gravely 0600807

Washer .312

$

$

Not available

2

Gravely 06700109

Pin, Cotter

$

$

Not available

3

Gravely 02818900

Rod, Clutch Straight

$

$

Not available

4

Gravely 05901323

Cap Screw, Hex Head .25-20 2.75

$

$

Not available

5

Gravely 05717600

Ring, Retaining .25

$0.99

$

In Stock, Qty 17

0

6

Gravely 00399300

Bushing, Flange

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 00398151

Paddle, Clutch Hand

$39.99

$

In Stock, only 4 left!

0

8

Gravely 06500513

Nut, Hex .25-20 Nyloc

$

$

Not available

9

2812600

Grip

$

$

Not available

10

2797000

Lever, Clutch Hand

$

$

Not available

11

2110600

Screw, Pan Head Slotted .25-20 x 2

$

$

Not available

12

6400532

Washer, Flat .25

$

$

Not available

13

3378400

Stop, Handle

$

$

Not available

14

6500429

Nut, hex .25-20

$

$

Not available

15

2103451

Lever, Clutch Fork

$

$

Not available

16

2816800

Cap Screw, Hex Head .50-20 x 3.5

$

$

Not available

17

2819000

Angle Rod, Left

$

$

Not available

18

2223900

Nut, Jam .50-20

$

$

Not available

19

2819200

Rod, Clutch Coupler

$

$

Not available

20

6500601

Nut, Hex .312-24

$

$

Not available

21

5901213

Cap Screw, Hex Head .50-20 x 3

$

$

Not available

22

3764200

Cable Assembly, CL Brake

$

$

Not available

23

3377551

Block, Braking Right Hand

$

$

Not available

24

Gravely 8300314

Spring

$

$

Not available

25

6500428

Nut, Hex .312-18

$

$

Not available

26

Gravely 4300553

Frame Weldment, CL-125 (995310)

Note: (995310)

$

$

Not available

4330453

Frame Weldment, CL-130 (995313)

Note: (995313)

$

$

Not available

27

6100126

Screw, Pan Head Phillips 10-24 x .75

$

$

Not available

28

1668500

Switch, Double Pole Plunger

$

$

Not available

29

6200022

Bolt, Carriage .312-18 x 1.5

$

$

Not available

30

3377851

Weldment, Braking Retainer Right Hand

$

$

Not available

31

Gravely 6536000

Nut, Nylock #10-24

$

$

Not available

32

6300028

Washer, Lock .50

$

$

Not available

33

5900717

Cap Screw, Hex Head .50-20 x 1

$

$

Not available

34

6500512

Nut, Hex .312-18 Nyloc

$

$

Not available

35

6400522

Washer, Lock .312

$

$

Not available

36

6200101

Bolt, Carriage .312-18 x 1.75

$

$

Not available

37

2091800

Nut, Hex .375-16

$

$

Not available

38

6400402

Washer, Metal Bushing .50 x 18 Gauge

$

$

Not available

39

2389053

Guard, Inner Chain (Cupped)

Note: (Cupped)

$

$

Not available

40

5400238

Bearing, Flange 1.375 O.D., .500 Bore

$

$

Not available

41

2094500

Shell, Chain Idler

$

$

Not available

42

2094400

Idler Assembly, Chain (Includes Items 40 and 41)

Note: (Includes Items 40 and 41)

$

$

Not available

43

2819853

Disc, Chain Guide

$

$

Not available

44

5900639

Cap Screw, Hex Head .50-20 x 2

$

$

Not available

45

2101700

Pin

$

$

Not available

46

2101500

Brake Assembly (Includes Items 47 and 48)

Note: (Includes Items 47 and 48)

$

$

Not available

47

2101400

Shoe, Brake

$

$

Not available

48

2101600

Pad, Brake

$

$

Not available

49

2221000

Nut, Jam .312-18

$

$

Not available

50

5900620

Cap Screw, Hex Head .312-18 x .75

$

$

Not available

51

5900621

Cap Screw, Hex Head .312-18 x 1

$

$

Not available

52

2383353

Bracket, Idler With Disc

$

$

Not available

53

2818000

Bolt, Idler .50-20 x 1.75

$

$

Not available

54

2100300

Spring, Idler High Tension

$

$

Not available

55

2094600

Idler

$

$

Not available

56

2815600

Spring, Reel

$

$

Not available

57

5500733

Bushing, Sintered Steel, Oil Impregnated

$

$

Not available

58

2799053

Arm, Reel

$

$

Not available

59

2799300

Screw, Shoulder .50 Diameter .38-16 x .75 Stainless Steel

$

$

Not available

60

5901019

Screw, Shoulder .50 Diameter .38-16 x 1 Stainless Steel

$

$

Not available

61

2117700

Sprocket, 10-Tooth

$

$

Not available

62

6400539

Spacer, Sprocket

$

$

Not available

63

6400512

Washer

$

$

Not available

64

5901215

Cap Screw, Hex Head 8 mm-1.25 x 20 8.8

$

$

Not available
