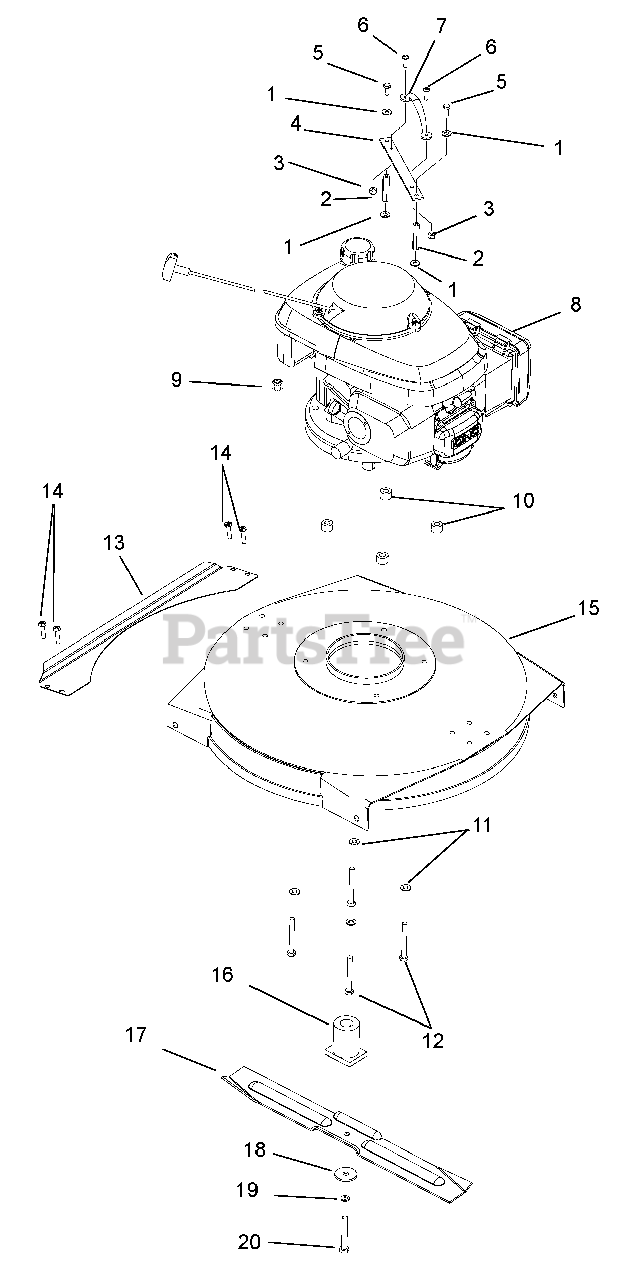

995408 - Gravely 21" SuperStriper Walk-Behind Mower, Honda GCV-160 (SN: 000101 & Above) Engine, Deck And Mower Blade Parts Diagram

21" SuperStriper Walk-Behind Mower, Honda GCV-160

Engine, Deck And Mower Blade Parts Diagram

  • Title

1

Gravely 06400214

WASHER, FLAT 1/4 SAE 02401

$

$

Not available

2

Gravely 01913200

STANDOFF, LIFT HANDLE I 405130

$

$

Not available

3

Gravely 06500619

FHN N/E #12-24

$

$

Not available

4

Gravely 01913600

CROSSBAR, CARRY HANDLE 405136

$

$

Not available

5

Gravely 05900532

HHCS M6 X 16MM LONG 02192

$

$

Not available

6

Gravely 06100131

PAN HEAD PHILLIPS 12-24U 02198

$

$

Not available

7

Gravely 01694600

CARRY HANDLE, I-EDGE 07912

$

$

Not available

8

Gravely 08270800

ENGINE, HONDA GCV

$

$

Not available

9

Gravely 06500312

FHN N/E 5/16-24 02262

$

$

Not available

10

Gravely 03268100

SPACER, ENGINE MOUNT

$

$

Not available

11

Gravely 06400215

WASHER, FLAT 5/16 SAE 02402
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05900409

HHCS 5/16-24 X 1 3/4 02016

$

$

Not available

13

Gravely 03366800

SHIELD,TRAILING

$

$

Not available

14

Gravely 06100128

PAN HEAD PHILLIPS 1/4-20 02175

$

$

Not available

15

Gravely 03299800

WELDMENT, ALUM DECK

$

$

Not available

16

Gravely 09734700

ADAPTER, BLADE HUB

$

$

Not available

17

Gravely 01252100

21" MOWER BLADE

$

$

Not available

18

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

19

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05901317

BLT-HEX 3/8-24 X2.25 GR8

$3.99

$

Usually ships in 4-12 days

0
