995408 - Gravely 21" SuperStriper Walk-Behind Mower, Honda GCV-160 (SN: 000101 & Above) Rollers And Height Adjustment Parts Diagram

21" SuperStriper Walk-Behind Mower, Honda GCV-160

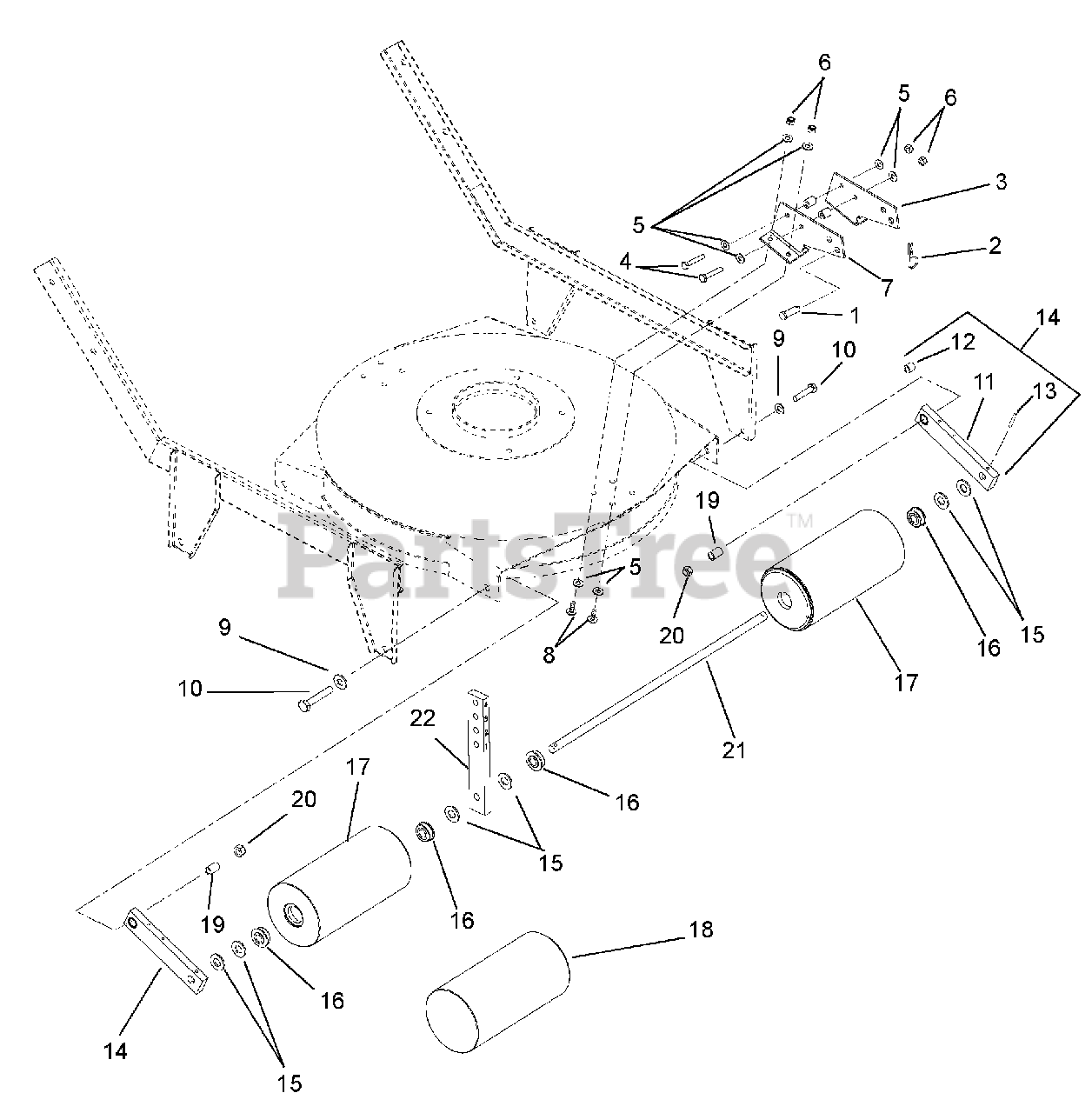

Rollers And Height Adjustment Parts Diagram

  • Title

1

Gravely 06800018

PIN, CLEVIS, 3/8" I.D. X 04022

$

$

Not available

2

Gravely 06700040

HAIRPIN, COTTER PIN, I- 07920

$

$

Not available

3

Gravely 01913000

BRACKET, LH ADJUSTMENT 405128

$

$

Not available

4

Gravely 05900603

HHCS 1/4-20 X 1.5
(Superseded to 05901739)

$1.99

$

In Stock, Qty 8

0

5

Gravely 06400214

WASHER, FLAT 1/4 SAE 02401

$

$

Not available

6

Gravely 06500311

FHN N/E 1/4-20 02261
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

7

Gravely 01912900

BRACKET, RH ADJUSTMENT 405127

$

$

Not available

8

Gravely 06100115

SCREW, #10-32 X 1/2 FHMS 02121

$

$

Not available

9

Gravely 06400215

WASHER, FLAT 5/16 SAE 02402
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05900407

HHCS 5/16-18 X 1 1/2 02014

$

$

Not available

11

Gravely 02951900

SWING ARM

$

$

Not available

12

Gravely 05500815

BUSHING, BRONZE .630 OD X .5ID

$

$

Not available

13

Gravely 05800038

ROLL PIN 3/16 X 1.0 04085
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 02951800

SWING ARM ASSEMBLY

Note: (Includes Items 11, 12 and 13)

$

$

Not available

15

Gravely 06400217

WASHER, FLAT 1/2 SAE 02405
(Superseded to 06400416)

$

$

Not available

16

Gravely 01659400

BEARING, FLANGE I-EDGE 06145

$

$

Not available

17

Gravely 03277100

ROLLER ASSY WITH VINYL CAP

Note: (Includes Item 18)

$

$

Not available

18

Gravely 03299700

COVER, VINYL WITH HOLE

Note: (Included with Item 17)

$

$

Not available

19

Gravely 01912500

SHAFT-SWING ARM PIVOT 405123

$

$

Not available

20

Gravely 06500317

FHN N/E 5/16-18 02267
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

21

Gravely 01912700

ROLLER SHAFT I-EDGE 405125

$

$

Not available

22

Gravely 01912800

ADJUSTMENT BAR, I-EDGE 405126

$

$

Not available
