995408 - Gravely 21" SuperStriper Walk-Behind Mower, Honda GCV-160 (SN: 000101 & Above) Rollers And Height Adjustment Parts Diagram

21" SuperStriper Walk-Behind Mower, Honda GCV-160

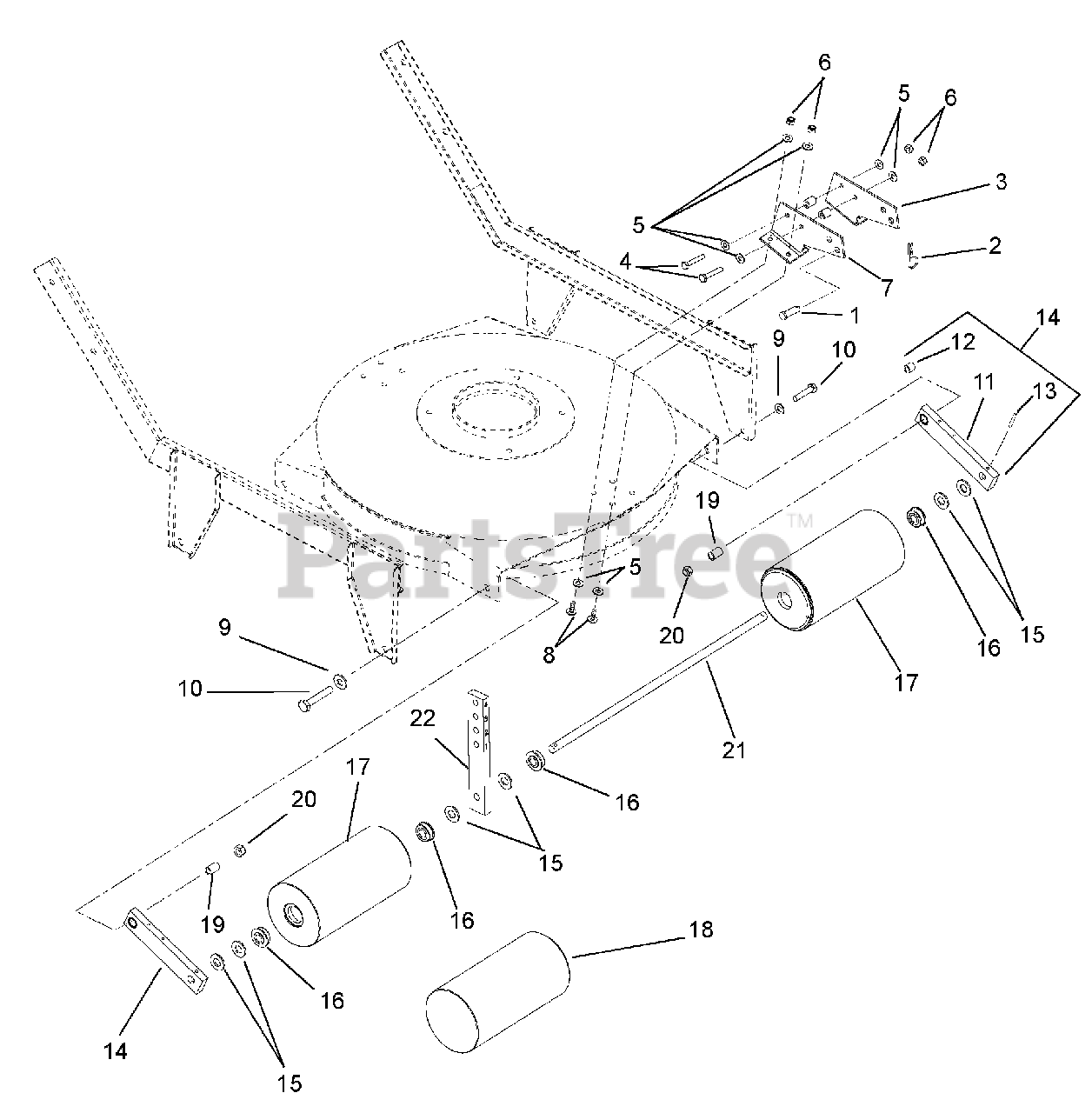

Rollers And Height Adjustment Parts Diagram

  • Title

1

Gravely 06800018

Pin, Clevis .38 x 1.25

$

$

Not available

2

Gravely 06700040

Pin, Cotter Hair

$

$

Not available

3

Gravely 01913000

Bracket, Left Hand Adjustment

$

$

Not available

4

Gravely 05900603

Capscrew, Hex Head .25-20 x 1.5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 7

0

5

Gravely 06400214

Washer, Flat .25

$

$

Not available

6

Gravely 06500311

Nut, Hex Nyloc .25-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

7

Gravely 01912900

Bracket, Right Hand Adjustment

$

$

Not available

8

Gravely 06100115

Screw, Panhead Phillips .25-20 x .75

$

$

Not available

9

Gravely 06400215

Washer, Flat .3125
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

10

Gravely 05900407

Capscrew, Hex Head .313-18 x 1.50

$

$

Not available

11

Gravely 02951900

Arm, Swing

$

$

Not available

12

Gravely 05500815

Bushing, Bronze

$

$

Not available

13

Gravely 05800038

Roll Pin .1875 x 1.0
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 02951800

Assembly, Swing Arm (Includes Items 11, 12 and 13)

Note: (Includes Items 11, 12 and 13)

$

$

Not available

15

Gravely 06400217

Washer, Flat .50
(Superseded to 06400416)

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 01659400

Bearing, Flange

$

$

Not available

17

Gravely 03277100

Roller Assembly (Includes Item 18)

Note: (Includes Item 18)

$

$

Not available

18

Gravely 03299700

Cover, Vinyl (Included with Item 17)

Note: (Included with Item 17)

$

$

Not available

19

Gravely 01912500

Shaft, Swing Arm Pivot

$

$

Not available

20

Gravely 06500317

Nut, Hex Nyloc .313-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

21

Gravely 01912700

Shaft, Roller

$

$

Not available

22

Gravely 01912800

Bar, Adjustment

$

$

Not available
