995420 (Pro-Vac 1060) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000101 - 002499) Hopper Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

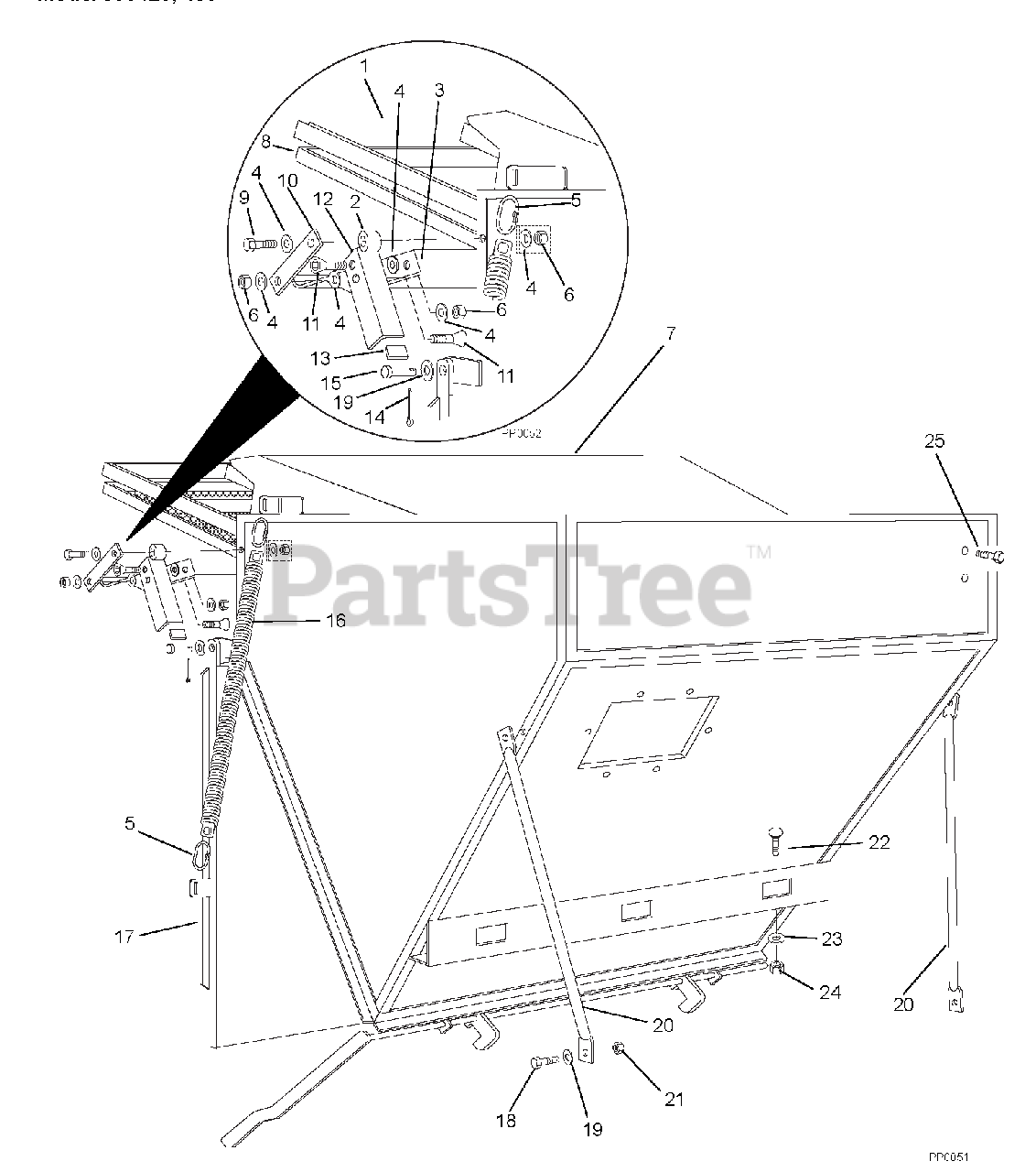

Hopper Parts Diagram

  • Title

1

Gravely 02084151

GRID WELDMENT 04204500

$

$

Not available

2

Gravely 02084551

SCREEN DOOR LINK SPAC 04204600

$

$

Not available

3

Gravely 02085053

SCREEN DOOR WELDMENT 04205500

$

$

Not available

4

Gravely 06400509

FLATWASHER 5/16 HARD SAE YZ
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 02084000

QUICK LINK 1/4 INCH 04204200

$

$

Not available

6

Gravely 06500522

HEX LOCK NUT 5/16-18 CP 44623

$1.99

$

Usually ships in 4-12 days

0

7

Gravely 02078853

HOPPER WELDMENT 04203000

$1106.99

$

Usually ships in 4-12 days

0

8

Gravely 02952900

SINGLE SCREEN 04204400

Note: (995420, 430)

$

$

Not available

Gravely 02141900

HARD SURFACE KIT SCREEN 200111

Note: (995430)

$

$

Not available

9

Gravely 05900738

HHCS 5/16-18 X 1-1/2 20011

$

$

Not available

10

Gravely 02084851

FILTER DOOR LINKAGE 04204900

$

$

Not available

11

Gravely 02221600

HEX SOC FHCS 5/16-18 X 1

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 02084651

FILTER DOOR LATCH RH 04204700

$

$

Not available

Gravely 02084751

FILTER DOOR LATCH LH 04204800

$

$

Not available

13

Gravely 02072000

GASKET 3/4 X 1/4 IN 00916400

$

$

Not available

14

Gravely 06700118

COTTER PIN 1/8 X 3/4 21020406

$

$

Not available

15

Gravely 02952400

CLEVIS PIN 3/8 x 1-1/8 013303

$

$

Not available

16

Gravely 08300351

SPRING 04204100

$

$

Not available

17

Gravely 02081853

DOOR WELDMENT 04203100

$

$

Not available

18

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06400417

FLATWASHER 3/8 SAE ZP 15830

$

$

Not available

20

Gravely 02083951

HOPPER BRACE 04203800

$

$

Not available

21

Gravely 02144300

LOCKNUT 3/8-16 YZ 20363

$

$

Not available

22

Gravely 06200107

CARR BOLT 1/2 X 1-1/2 5161614

$

$

Not available

23

Gravely 06400416

FLATWASHER 1/2 SAE ZP 15829

$

$

Not available

24

Gravely 02116500

TOP LOCKNUT 1/2-13 CP 15554

$

$

Not available

25

Gravely 05901107

HEX HD CPSC 3/8 X 3/4 44721

$

$

Not available
