995420 (Pro-Vac 1060) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000101 - 002499) Scoop Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

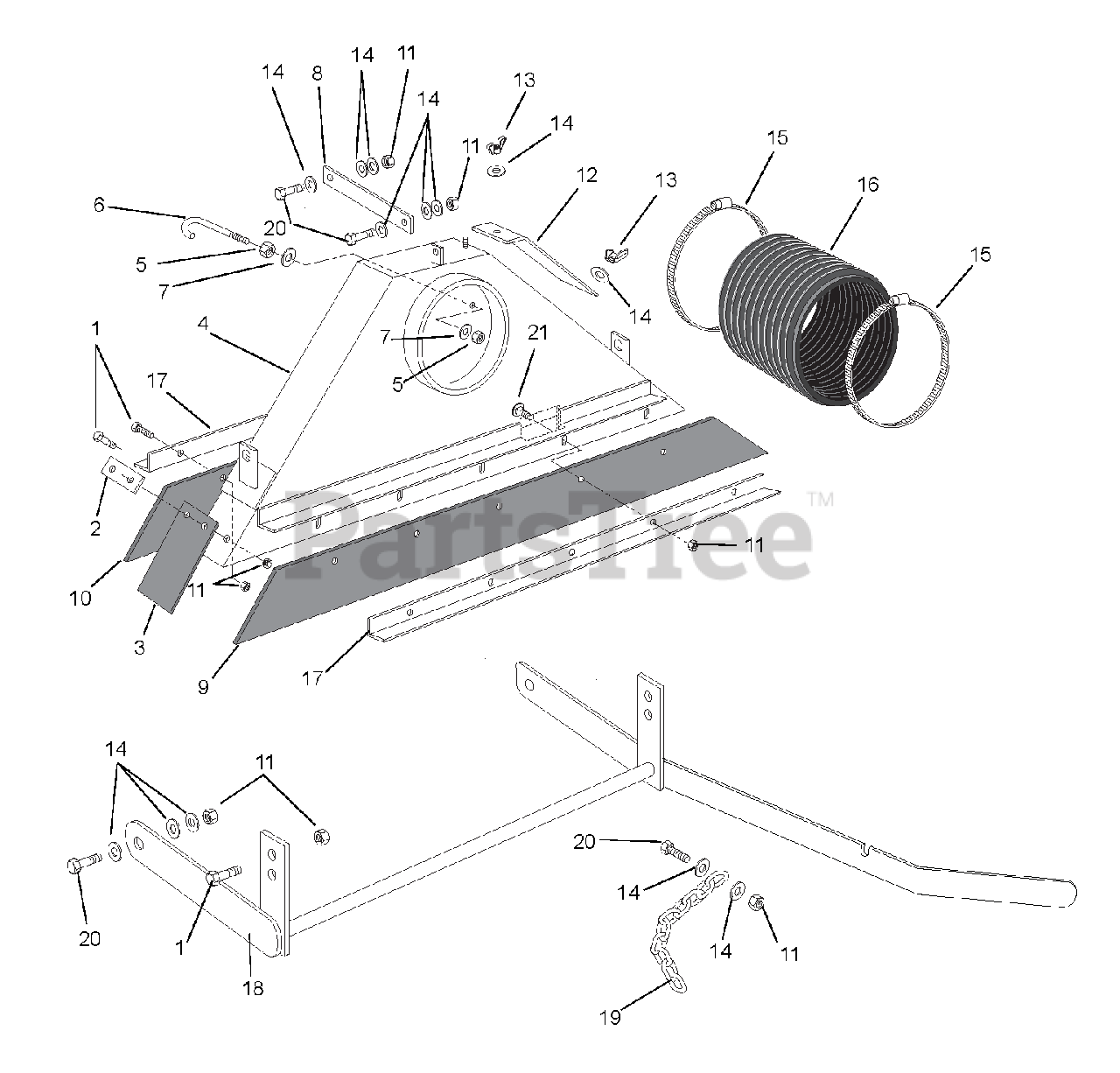

Scoop Parts Diagram

  • Title

1

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 02083851

END BOLTING STRIP 04203700

$

$

Not available

3

Gravely 02085300

FLEX SKIRT END CAP 04205600

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 02076053

SCOOP WELDMENT 04200800

$

$

Not available

5

Gravely 06500612

HEX NUT 1/2 CP 8151600

$

$

Not available

6

Gravely 05900613

J-BOLT 04205800

$

$

Not available

7

Gravely 06400416

FLATWASHER 1/2 SAE ZP 15829

$

$

Not available

8

Gravely 02083251

SCOOP STABILIZER BRAC 04203300

$

$

Not available

9

Gravely 02952300

FLEX SKIRT FRONT 04203500

$118.99

$

Usually ships in 4-12 days

0

10

Gravely 02085400

FLEX SKIRT REAR 04205700

$

$

Not available

11

Gravely 06500517

HEX NUT 3/8-16 CP NYLOCK 44601

$

$

Not available

12

Gravely 02077551

SCOOP SIDE COVER 04200900

$45.99

$

Usually ships in 4-12 days

0

13

Gravely 06500418

WING NUT 3/8-16 ZP #040 040028

$

$

Not available

14

Gravely 06400417

FLATWASHER 3/8 SAE ZP 15830

$

$

Not available

15

Gravely 02085700

CLAMP: WORM DRIVE 13 06943500

$

$

Not available

16

Gravely 02078700

FLEX HOSE TWELVE IN. 04202900A

$

$

Not available

17

Gravely 02077651

RETAINER STRIP 04201000

$

$

Not available

18

Gravely 02077751

SCOOP LIFT WELDMENT 04201200

$

$

Not available

19

Gravely 02084900

SUPPORT CHAIN 12 LINK 1/4"

$

$

Not available

20

Gravely 05900623

HHCS 3/8-16 X 1-1/4 G5 1161212

$

$

Not available

21

Gravely 06200031

CARR BOLT 3/8-16 X 1 G5 44109

$

$

Not available
