995420 (Pro-Vac 1060) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000101 - 002499) Trailer Frame and Wheels Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

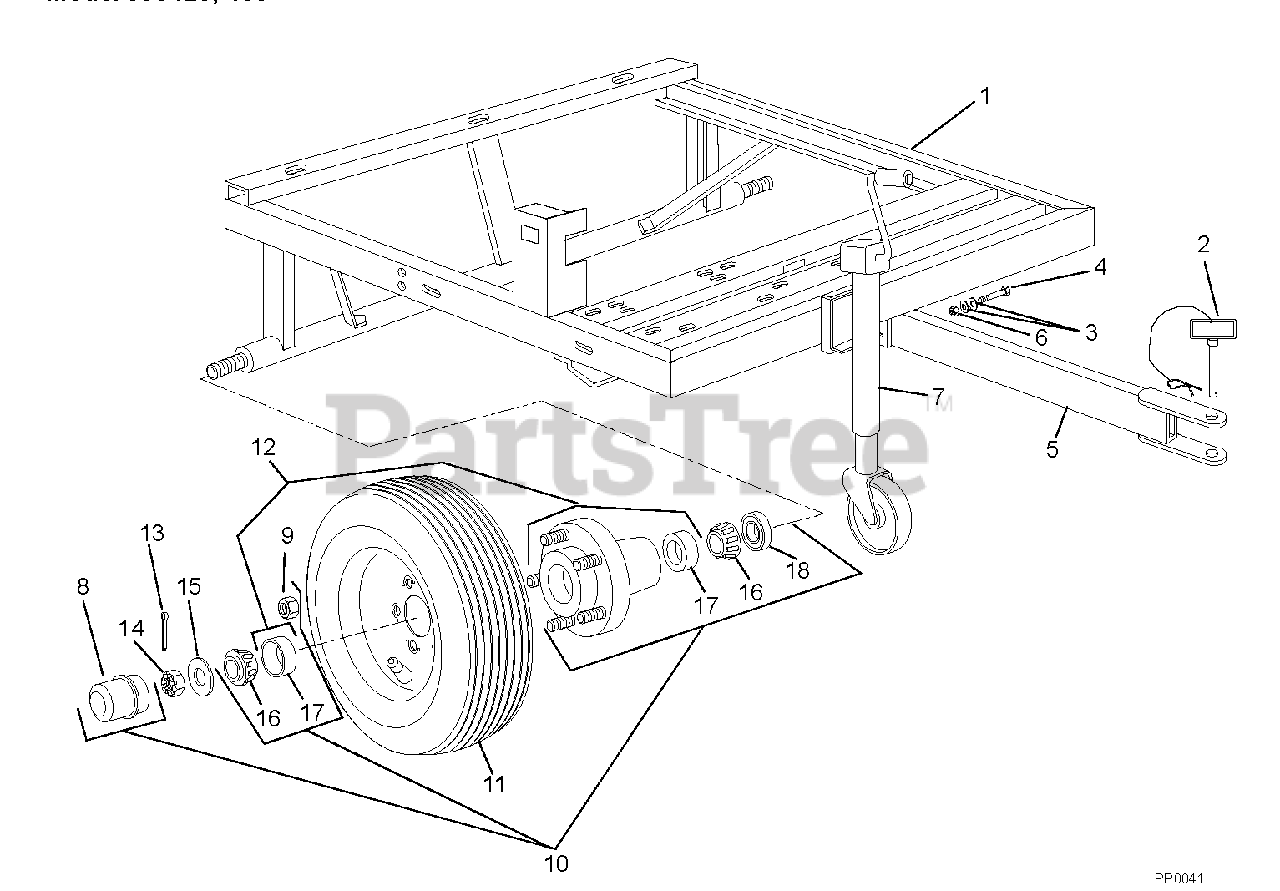

Trailer Frame and Wheels Parts Diagram

  • Title

1

Gravely 02088453

Weldment, Frame

$

$

Not available

2

Gravely 02087300

Pin, Hitch 1 x 4.50"

$

$

Not available

3

Gravely 06400511

Washer, Flat Steel .625

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 05900922

Cap Screw, Hex Head .625-11 x 3

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 02074051

Weldment, Tongue
(Superseded to 04200251)

$

$

Not available

6

Gravely 02144400

Nut, Flange Lock .625-11

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 02577300

Jack Assembly with Swivel Wheel

$

$

Not available

8

Gravely 07100603

Cap, Hub

$

$

Not available

9

Gravely 06500427

Nut, Hex Hub .50-20 UNF 2B-45D

$

$

Not available

10

Gravely 07100529

Assembly, Hub 5-Bolt (Contains Items 8, 9, 12, 16 and 18)

Note: (Contains Items 8, 9, 12, 16 and 18)

$122.99

$

Usually ships in 4-12 days

0

11

Gravely 07100525

Assembly, Tire & Wheel 18 x 8.5 x 8

$182.99

$

Usually ships in 4-12 days

0

12

Gravely 07100602

Hub With Bolts (Includes Item 17)

Note: (Includes Item 17)

$

$

Not available

13

Gravely 06700115

Pin, Cotter .125 x 1.25

$

$

Not available

14

Gravely 06500420

Nut, Hex .75-16 Castellated

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 06400614

Washer .75 Keyed

$

$

Not available

16

Gravely 05400320

Cone, Bearing

$16.99

$

Usually ships in 4-12 days

0

17

Gravely 05400318

Cup, Bearing

$

$

Not available

18

Gravely 05600313

Seal

$

$

Not available
