995430 (Pro-Vac 1060) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000101 - 002499) Hand Vac - 995430 Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

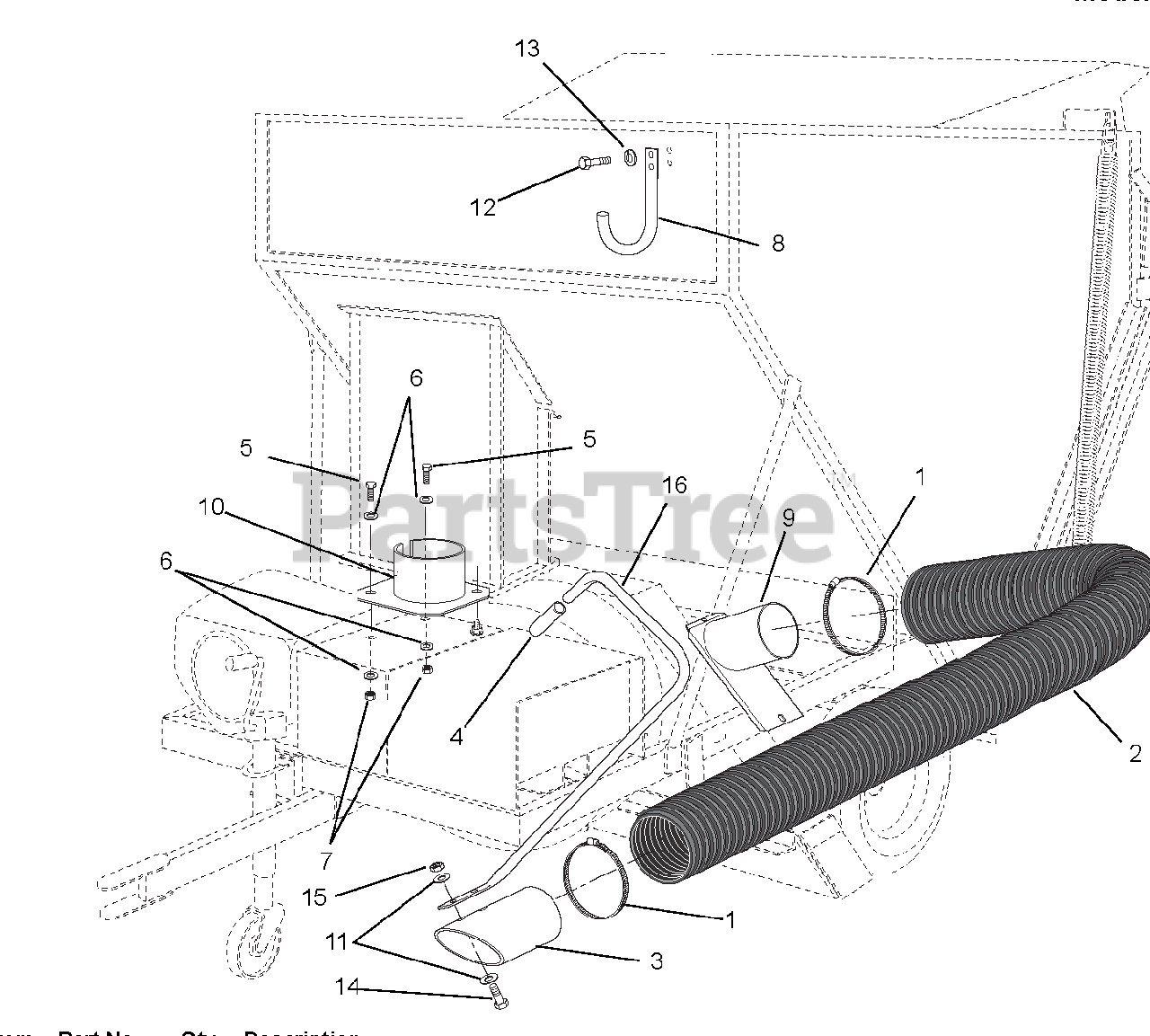

Hand Vac - 995430 Parts Diagram

  • Title

1

Gravely 02072400

CLAMP: WORMMIN 2.13 X 03022400

$

$

Not available

2

Gravely 07000831

HOSE 6 x 10'BLACK 09211800

$452.99

$

Usually ships in 4-12 days

0

3

Gravely 02088100

NOZZLE TUBE 09219900

$

$

Not available

4

Gravely 02085800

HAND GRIP 1IN. ID X 5 07518700

$

$

Not available

5

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06400417

FLATWASHER 3/8 SAE ZP 15830

$

$

Not available

7

Gravely 06500517

HEX NUT 3/8-16 CP NYLOCK 44601

$

$

Not available

8

Gravely 02087900

FLEX HOSE HANGER 09219500

$

$

Not available

9

Gravely 02087800

ADAPTER TUBE WELDMENT 09219300

$

$

Not available

10

Gravely 02089400

HOLDER-NOZZLE 09271500

$

$

Not available

11

Gravely 06400419

FLATWASHER 5/16 ZP 15907

$

$

Not available

12

Gravely 05900624

HEX HD CPSC 3/8-16 X 2 1161220

$

$

Not available

13

Gravely 06300030

LOCKWASHER 3/8 CP PG 3/8 15812

$

$

Not available

14

Gravely 05900621

HHCS 5/16-18 X 1 G5 ZP 1161010

$

$

Not available

15

Gravely 06500512

HEX NUT 5/16-18 CP NYLOC 44553
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

16

Gravely 02087500

NOZZLE HANDLE 09204400

$

$

Not available
