995430 (Pro-Vac 1060) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000101 - 002499) Trailer Frame and Wheels Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

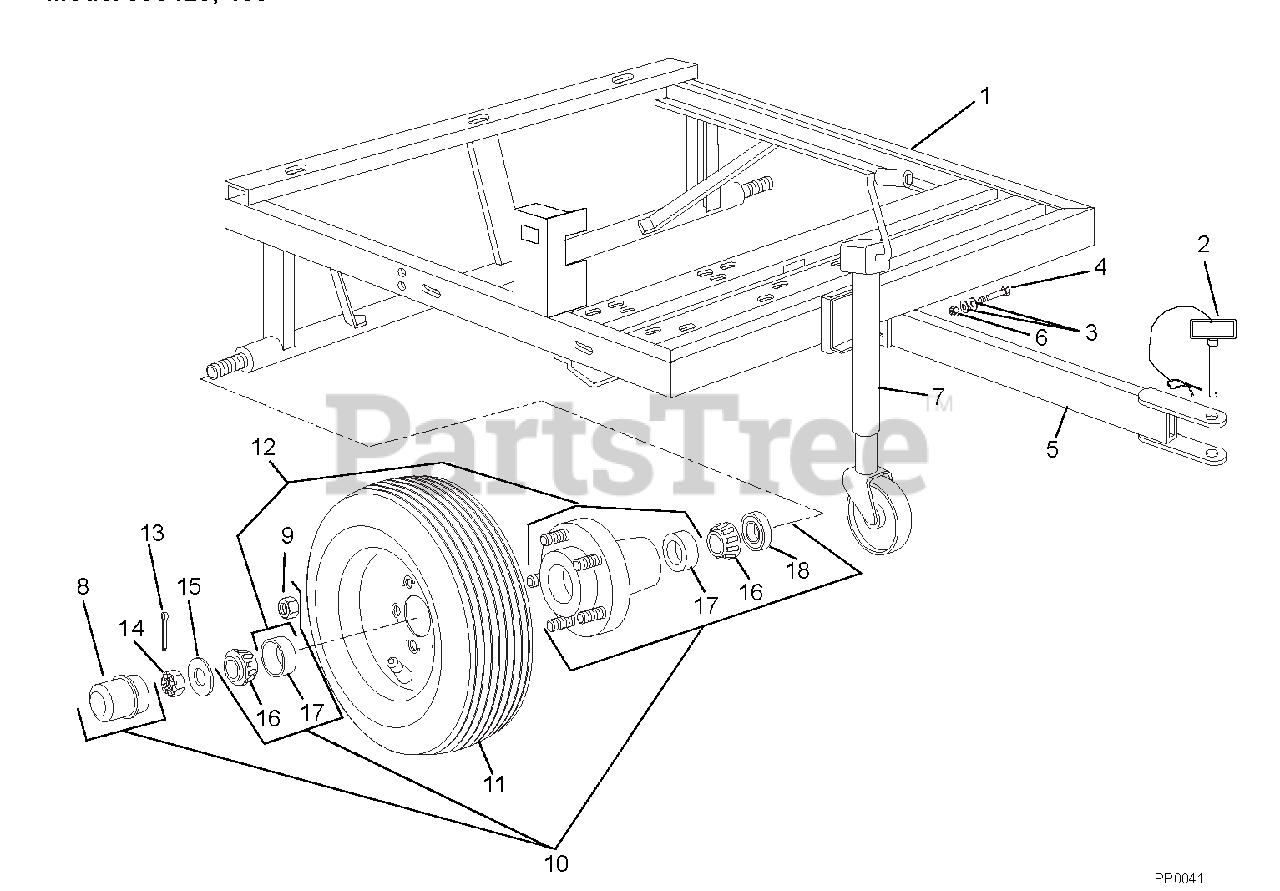

Trailer Frame and Wheels Parts Diagram

  • Title

1

Gravely 02088453

FRAME WELDMENT 09270600

$

$

Not available

2

Gravely 02087300

HITCH PIN 1 IN x 4.50 09200100

$

$

Not available

3

Gravely 06400511

FLATWASHER 5/8 SAE ZP 20748

$

$

Not available

4

Gravely 05900922

HEX HD CPSC 5/8-11 X 3 G 44057

$

$

Not available

5

Gravely 02074051

TONGUE WELDMENT 04200200
(Superseded to 04200251)

$

$

Not available

6

Gravely 02144400

NUT FLANGE LOC 5/8-11 20414

$

$

Not available

7

Gravely 02577300

JACK ASSEMBLY W/ SWIV 50022588

$

$

Not available

8

Gravely 07100603

HUB CAP 50022633

$

$

Not available

9

Gravely 06500427

HEX HUB NUT 1/2-20 UNF 15515

$

$

Not available

10

Gravely 07100529

HUB ASSEMBLY 5 BOLT 50022095

Note: (Contains Items 8, 9, 12, 16 and 18)

$

$

Not available

11

Gravely 07100525

TIRE AND WHEEL ASSEMB 50019920

$189.99

$

Usually ships in 4-12 days

0

12

Gravely 07100602

HUB W/ BOLTS AND BEAR 50022631

Note: (Includes Item 17)

$

$

Not available

13

Gravely 06700115

COTTER PIN 1/8 X 1-1/4 Z 20166

$

$

Not available

14

Gravely 06500420

HEX NUT 3/4-16 CP CASTELLA 120

$

$

Not available

15

Gravely 06400614

KEYED WASHER 3/4 PL 50019662

$

$

Not available

16

Gravely 05400320

BEARING CONE 1.000 BORE X 22

$

$

Not available

17

Gravely 05400318

BEARING CUP 1.9687 OD X 170

$

$

Not available

18

Gravely 05600313

SEAL CR# 12437 50022632

$

$

Not available
