995430 (Pro-Vac 1060) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 002500 & Above) Battery and Fuel Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

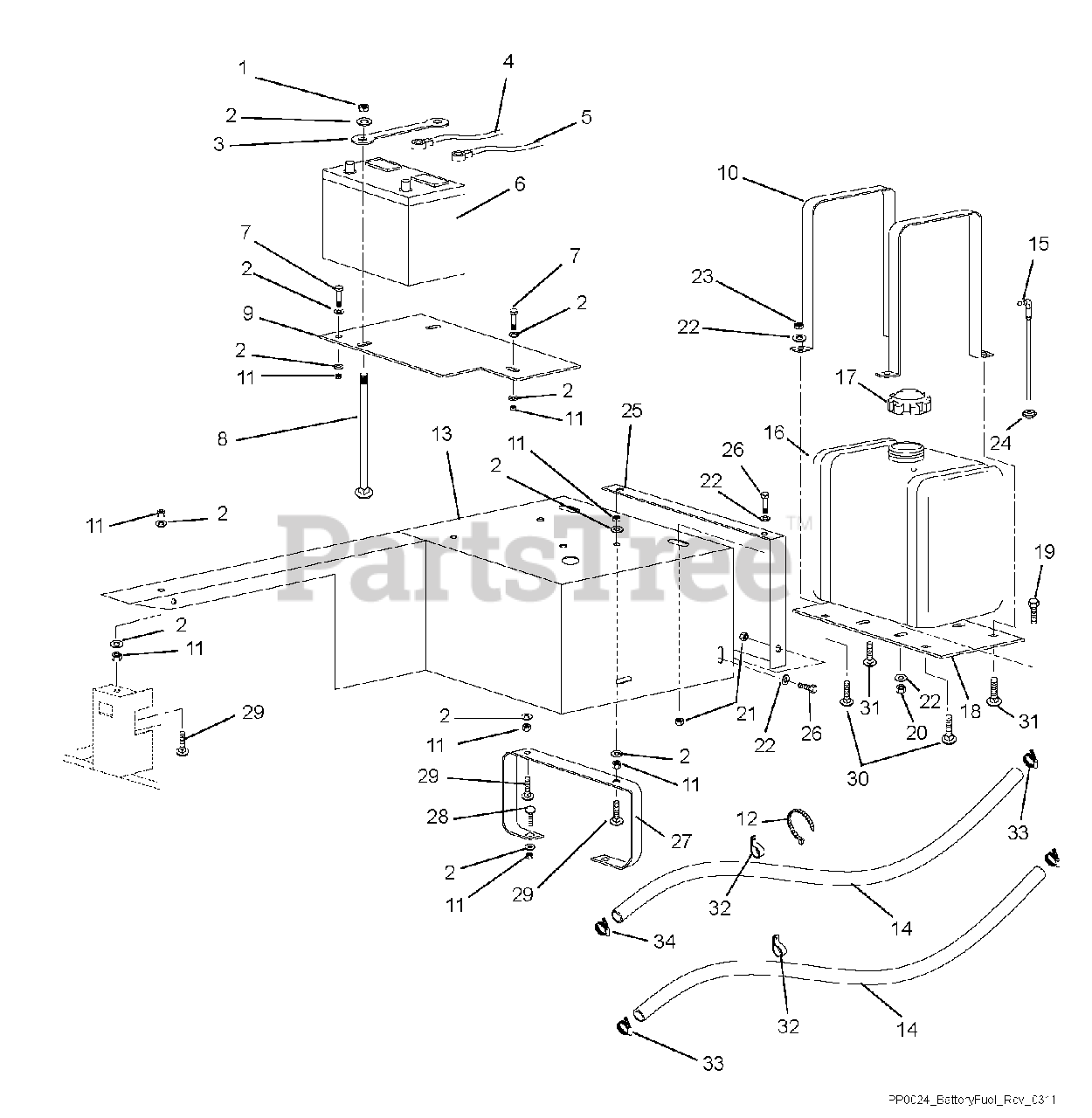

Battery and Fuel Parts Diagram

  • Title

1

Gravely 02174600

Nut, Hex Jam Nylock .38-16

$

$

Not available

2

Gravely 06400417

Washer, Flat .38

$

$

Not available

3

Gravely 02141251

Plate, Battery Hold Down

$

$

Not available

4

Gravely 02078400

Cable, Battery Positive

$56.99

$

Usually ships in 4-12 days

0

5

Gravely 02078300

Cable, Battery Ground

$

$

Not available

6

Gravely 02078500

Battery

$

$

Not available

7

Gravely 05900801

Cap Screw, Hex Head .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06200040

Bolt, Carriage .38-16 x 8

$

$

Not available

9

Gravely 02953051

Plate, Battery Mounting

$

$

Not available

10

Gravely 02141551

Strap, Fuel Tank Mounting

$

$

Not available

11

Gravely 02134300

Nut, Lock .38-16 Crimp

$

$

Not available

12

Gravely 02589600

Cable Tie .187 x 14.25

$

$

Not available

13

Gravely 02088953

Weldment, Belt Guard

$

$

Not available

14

Gravely 03278100

Hose, Fuel .25 I.D.

$0.99

$

In Stock, Qty 20+

0

15

Gravely 04350200

Assembly, Fuel Pickup

$

$

Not available

16

Gravely 04315300

Tank, Six Gallon Fuel

$419.99

$

Usually ships in 4-12 days

0

17

Gravely 04237300

Fuel Cap Vent-In Tethered
(Superseded to 09190300)

$33.99

$

Usually ships in 4-12 days

0

18

Gravely 02141451

Mounting Plate, Fuel Tank

$

$

Not available

19

Gravely 05900621

Cap Screw, Hex Head .312-18 x 1.00

$

$

Not available

20

Gravely 06500533

Nut, Hex Serrated Flange .312-18

$

$

Not available

21

Gravely 06529800

Nut, Locking Center .31-10
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06400509

Washer, Flat .312
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

23

Gravely 06500512

Nut, Hex Nyloc .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

24

Gravely 00387300

Grommet, Viton

$7.99

$

In Stock, Qty 10

0

25

Gravely 02089353

End Plate, Belt Guard

$

$

Not available

26

Gravely 05900620

Cap Screw, Hex Head .312-18 x .75

$

$

Not available

27

Gravely 02089251

Stand, Belt Guard

$

$

Not available

28

Gravely 06200031

Bolt, Carriage .38-16 x 1.00

$

$

Not available

29

Gravely 06200032

Bolt, Carriage .38-16 x 1.50

$

$

Not available

30

Gravely 06200034

Bolt, Carriage .312-18 x 1

$

$

Not available

31

Gravely 06200101

Bolt, Carriage .312-18 x 1.75

$

$

Not available

32

Gravely 02085600

P-Clamp

$

$

Not available

33

Gravely 01665200

Gasline Clamp

$

$

Not available

34

Gravely 02653200

Screw Clamp

$

$

Not available
