995430 (Pro-Vac 1060) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 002500 & Above) Battery and Fuel Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

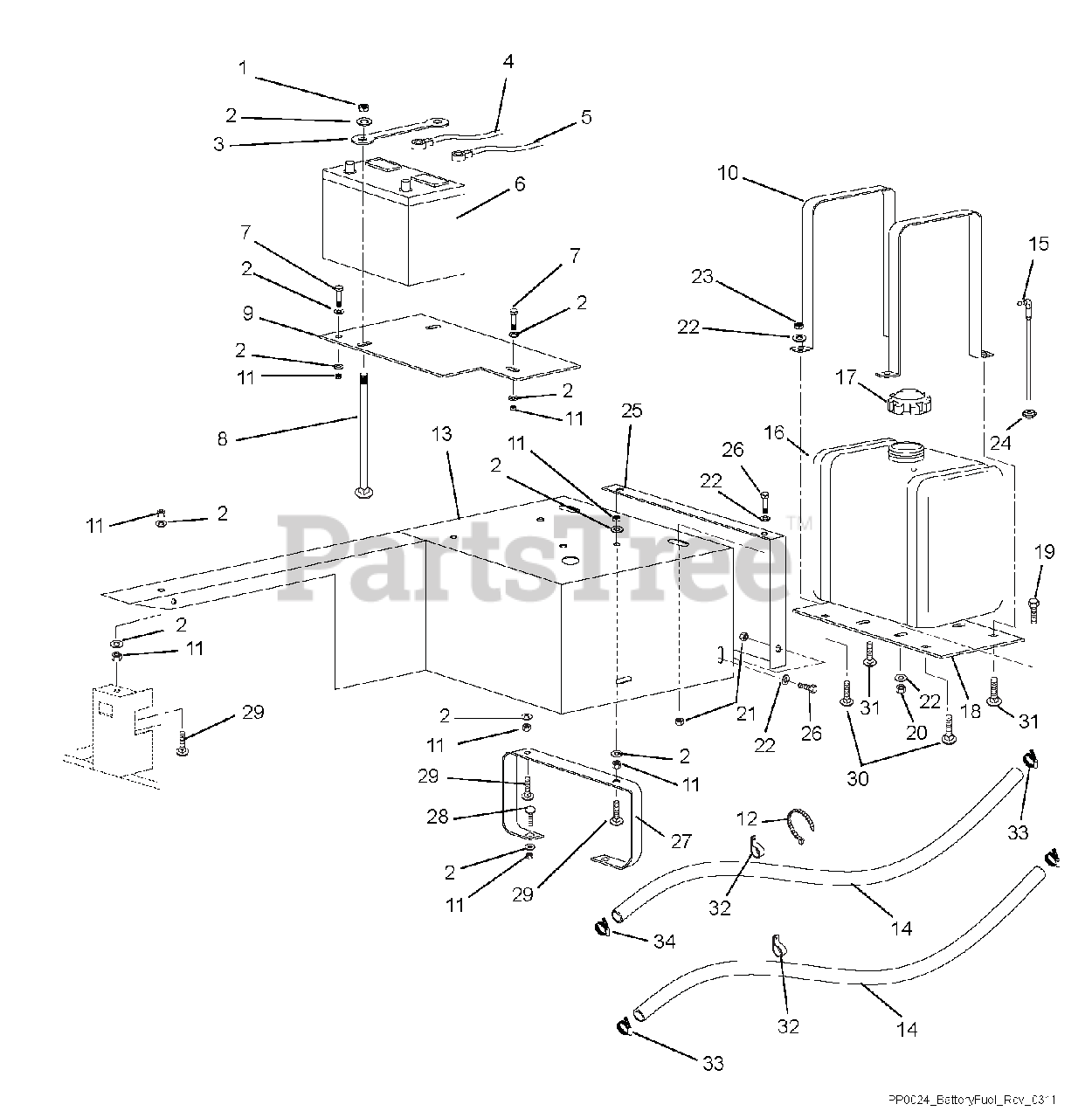

Battery and Fuel Parts Diagram

  • Title

1

Gravely 02174600

JAM NUT 3/8-16 NYLOCK 37026

$

$

Not available

2

Gravely 06400417

FLATWASHER 3/8 SAE ZP 15830

$

$

Not available

3

Gravely 02141251

BATTERY HOLD DOWN PLATE 200101

$

$

Not available

4

Gravely 02078400

BATTERY HOT CABLE 04202100

$

$

Not available

5

Gravely 02078300

BATTERY GROUND CABLE 04202000

$

$

Not available

6

Gravely 02078500

BATTERY 12V TOP POST 04202200

$

$

Not available

7

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06200040

CARR BOLT 3/8-16 X 8 G5 44726

$

$

Not available

9

Gravely 02953051

BATTERY MOUNTING PLAT 04205200

$

$

Not available

10

Gravely 02141551

FUEL TANK MOUNTING STRA 200107

$

$

Not available

11

Gravely 02134300

LOCK NUT 3/8-16 CRIMP 1735-1

$

$

Not available

12

Gravely 02589600

CABLE TIE .187 X 11 50022830

$

$

Not available

13

Gravely 02088953

BELT GUARD WELDMENT 09270700

$

$

Not available

14

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

15

Gravely 04350200

PICK UP TUBE, FLAMBEAU 468543

$

$

Not available

16

Gravely 04315300

FUEL TANK 6 GALLON

$

$

Not available

17

Gravely 04237300

CAP,3.50" VENT-IN RATCHET FUEL
(Superseded to 09190300)

$35.99

$

In Stock, Qty 16

0

18

Gravely 02141451

FUEL TANK MOUNTING PLAT 200106

$

$

Not available

19

Gravely 05900621

HHCS 5/16-18 X 1 G5 ZP 1161010

$

$

Not available

20

Gravely 06500533

SRATED FLNG HEX NUT 5 50005770

$

$

Not available

21

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06400509

FLATWASHER 5/16 HARD SAE YZ
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06500512

HEX NUT 5/16-18 CP NYLOC 44553
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

24

Gravely 00387300

GROMMET, DAPCO VITON #12240

$9.99

$

In Stock, Qty 20+

0

25

Gravely 02089353

END PLATE; BELT GUARD 09270900

$

$

Not available

26

Gravely 05900620

HHCS 5/16 X 3/4 G5 ZP 1161006

$

$

Not available

27

Gravely 02089251

STAND - BELT GUARD 09270800

$

$

Not available

28

Gravely 06200031

CARR BOLT 3/8-16 X 1 G5 44109

$

$

Not available

29

Gravely 06200032

CARR BOLT 3/8 X 1-1/2 44286

$

$

Not available

30

Gravely 06200034

CARR BOLT 5/16-18 X 1 G5 44319

$

$

Not available

31

Gravely 06200101

CARR BOLT 5/16-18 X 1- 5141016

$

$

Not available

32

Gravely 02085600

P-CLAMP 06909400

$

$

Not available

33

Gravely 01665200

GAS LINE CLAMP 07175

$

$

Not available

34

Gravely 02653200

CLAMP WORM DRV #6202. 50026280

$

$

Not available
