995430 (Pro-Vac 1060) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 002500 & Above) Engine and Drive Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

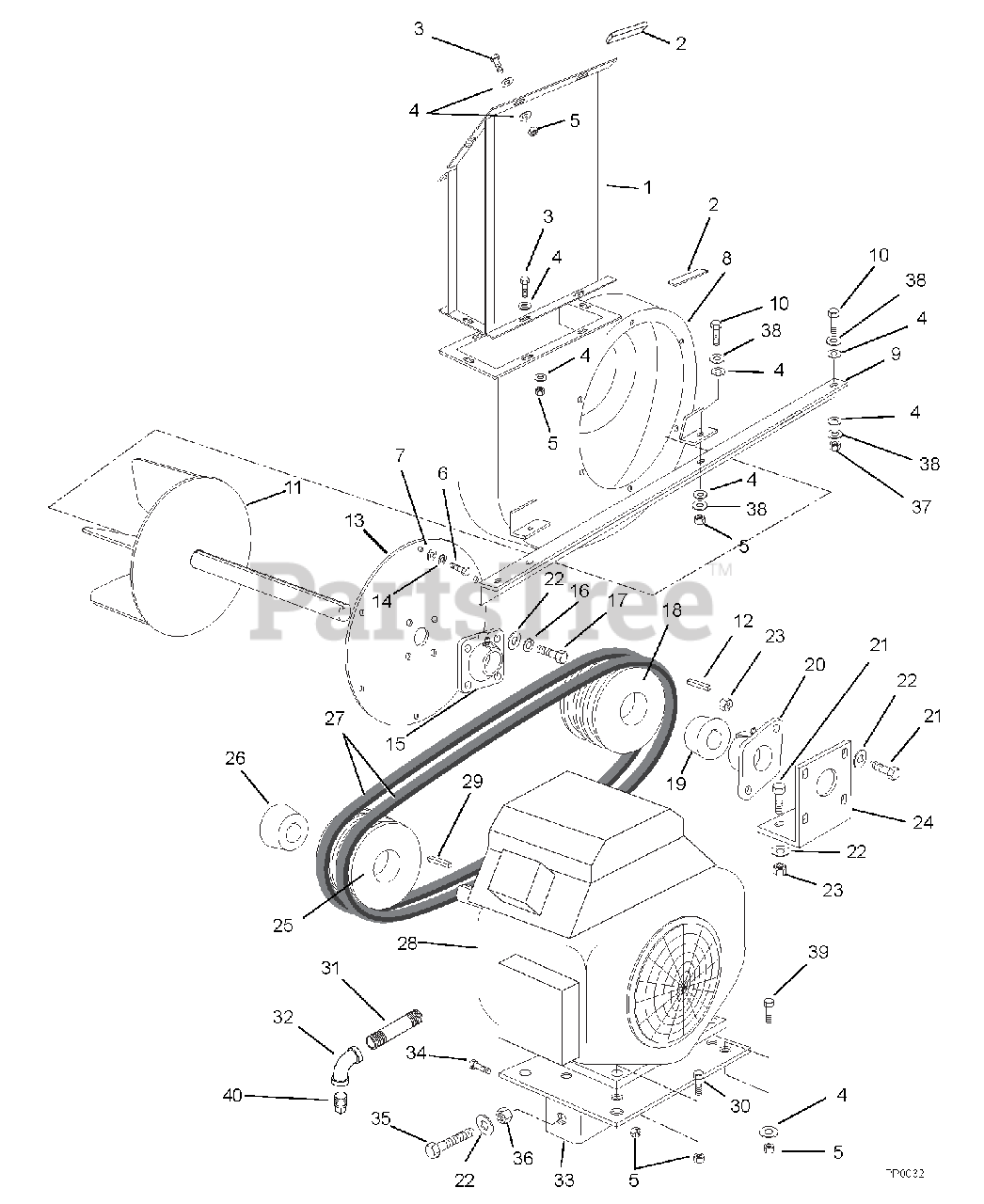

Engine and Drive Parts Diagram

  • Title

1

Gravely 02083353

DISCHARGE CHUTE WELD 04203600

$263.99

$

Usually ships in 4-12 days

0

2

Gravely 02071900

GASKET 1-1/4 X 3/16IN 00915900
(Superseded to 00915900)

$

$

Not available

3

Gravely 05901107

HEX HD CPSC 3/8 X 3/4 44721

$

$

Not available

4

Gravely 06400417

FLATWASHER 3/8 SAE ZP 15830

$

$

Not available

5

Gravely 06500517

HEX NUT 3/8-16 CP NYLOCK 44601

$

$

Not available

6

Gravely 05900620

HHCS 5/16 X 3/4 G5 ZP 1161006

$

$

Not available

7

Gravely 06400509

FLATWASHER 5/16 HARD SAE YZ
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 02074553

BLOWER WELDMENT 04200600

$

$

Not available

9

Gravely 02078651

BLOWER SUPPORT BEAM 04202600

$

$

Not available

10

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 02075600

IMPELLER FAN PROVAC 04200700

$798.99

$

Usually ships in 4-12 days

0

12

Gravely 06605600

KEY-STR .38X2.0X.38

$

$

Not available

13

Gravely 02074353

FAN COVER WELDMENT 04200500

$

$

Not available

14

Gravely 06300029

LOCKWASHER 5/16 CP PG 5/ 15808

$

$

Not available

15

Gravely 05400235

BEARING FOUR BOLT FLA 05418600

$125.99

$

Usually ships in 4-12 days

0

16

Gravely 06300031

LOCKWASHER 7/16 CP PG 7/ 15819

$

$

Not available

17

Gravely 05901022

HHCS 7/16-14 X 1-1/4 G5 44614

$

$

Not available

18

Gravely 07300310

PULLEY-V 2G 3V 6.5 SDS

$162.99

$

In Stock, only 1 left!

0

19

Gravely 05500439

BUSHING DRIVE SHEAVE 1-1/2 ID

$

$

Not available

20

Gravely 05400234

BEARING TWO BOLT FLAN 05418500

$106.99

$

Usually ships in 4-12 days

0

21

Gravely 05900703

HHCS 1/2-13 X 1-1/2 G5 15093

$

$

Not available

22

Gravely 06400416

FLATWASHER 1/2 SAE ZP 15829

$

$

Not available

23

Gravely 02116500

TOP LOCKNUT 1/2-13 CP 15554

$

$

Not available

24

Gravely 05400251

BEARING HOLDER 04202400

$

$

Not available

25

Gravely 07300311

PULLEY-V 2G 3V 5.5 SH

$

$

Not available

26

Gravely 05500438

BUSHING DRIVE SHEAVE 04201800

$

$

Not available

27

Gravely 07200329

V-BELT MATCHED SET OF TWO

Note: (Matched Set of Two)

$75.99

$

Usually ships in 4-12 days

0

28

Gravely 04315200

ENGINE 18 HP KOHLER CH620-3035

$

$

Not available

29

Gravely 06600112

KEY .25 X .25 X 1.25 19459

$

$

Not available

30

Gravely 05900931

HEX HD CPSC 3/8-16 X 1-3/4

$

$

Not available

31

Gravely 07000830

NIPPLE 3/8 x 3-1/2 SS(0 034758

$18.99

$

Usually ships in 4-12 days

0

32

Gravely 07001435

ELBOW .375-18 NPTF

$

$

Not available

33

Gravely 02089751

ENGINE BASE WELDMENT 09271700
(Superseded to 09271751)

$

$

Not available

34

Gravely 05900623

HHCS 3/8-16 X 1-1/4 G5 1161212

$

$

Not available

35

Gravely 05900921

HHCS 1/2-13 X 5 G5 ZP 44030

$

$

Not available

36

Gravely 06500612

HEX NUT 1/2 CP 8151600

$

$

Not available

37

Gravely 06500521

SERRATED FLNG HEX NUT 3/8-16

$

$

Not available

38

Gravely 06400418

FLATWASHER 1/2 SAE HARD 15906
(Superseded to 06401116)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 05900824

HEX HD CPSC 3/8-16 X 1-1/2

$

$

Not available

40

Plug, Oil Drain (Use drain plug supplied with engine)

Note: (Use drain plug supplied with engine)

$

$

Not available
