995430 (Pro-Vac 1060) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 002500 & Above) Hand Vac Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

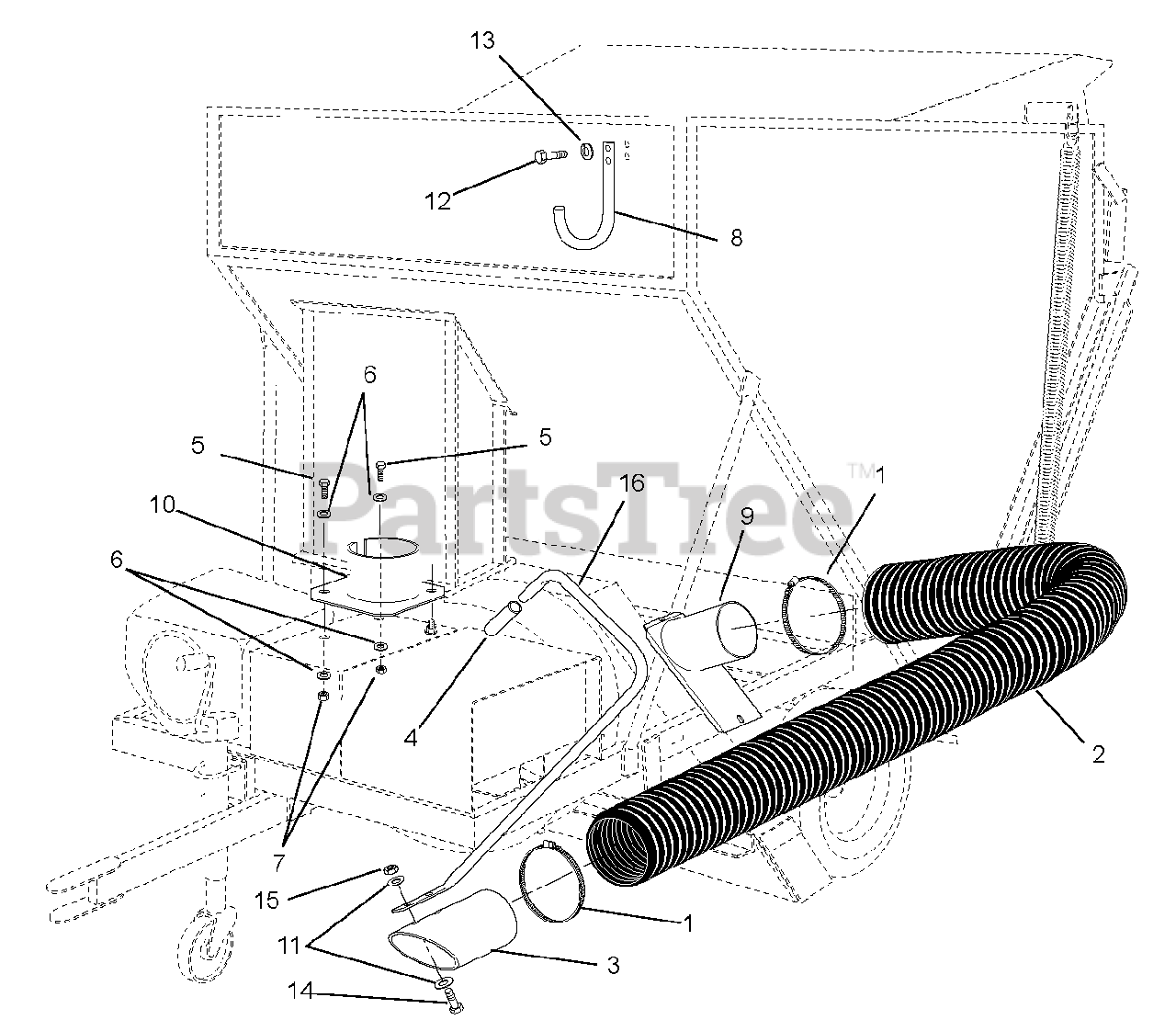

Hand Vac Parts Diagram

  • Title

1

Gravely 02072400

Clamp, Hose

$

$

Not available

2

Gravely 07000831

Hose, 6-in. x 10 ft.

$426.99

$

Usually ships in 4-12 days

0

3

Gravely 02088151

Tube, Nozzle

$

$

Not available

4

Gravely 02085800

Grip, Hand

$

$

Not available

5

Gravely 05900801

Cap Screw, Hex Head .375-16 x 1
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06400417

Washer, Flat .375

$

$

Not available

7

Gravely 06500517

Nut, Nyloc Hex .375-16

$

$

Not available

8

Gravely 02087951

Hanger, Flex Hose

$

$

Not available

9

Gravely 02087851

Weldment, Adapter Tube

$

$

Not available

10

Gravely 02089451

Holder, Nozzle

$

$

Not available

11

Gravely 06400419

Washer, Flat .312

$

$

Not available

12

Gravely 05900624

Cap Screw, Hex Head .375-16 x 2

$

$

Not available

13

Gravely 06300030

Washer, Lock .375

$

$

Not available

14

Gravely 05900621

Cap Screw, Hex Head .312-18 x 1

$

$

Not available

15

Gravely 06500512

Nut, Hex Flange Lock .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 02087551

Handle, Nozzle

$

$

Not available
