995520 - Simplicity 30" Walk-Behind Mower Mower Parts Group (3699I01) Parts Diagram

30" Walk-Behind Mower

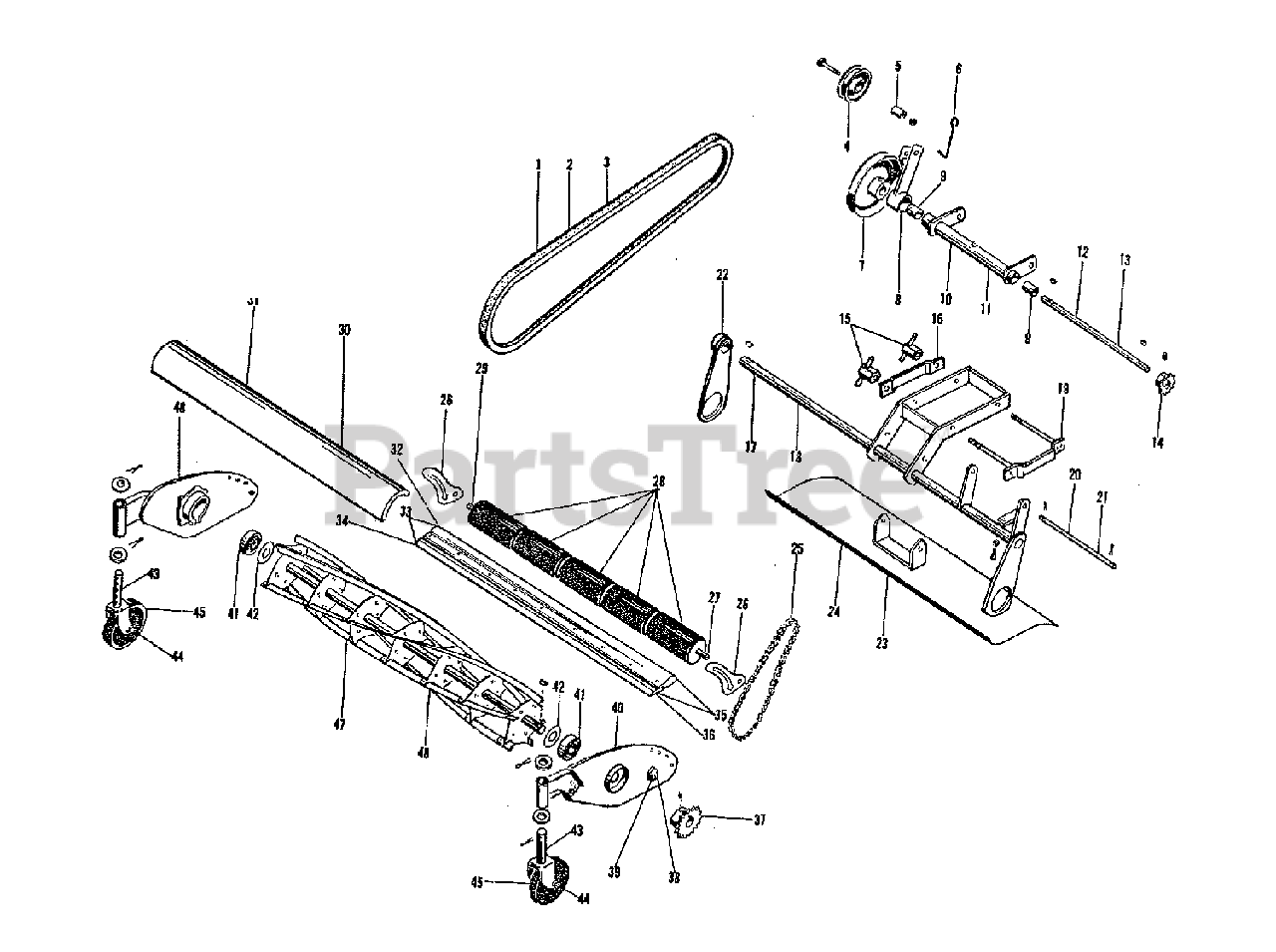

Mower Parts Group (3699I01) Parts Diagram

  • Title

1

Simplicity 2118068

BELT, 34" for 2 HP Only

$

$

Not available

2

Simplicity 1664457SM

V-BELT, 40"

$29.99

$

In Stock, only 2 left!

0

3

Simplicity 1665706SM

BELT, 39" for 5 HP Only

$31.99

$

Usually ships in 2-12 days

0

4

Simplicity 8161528

PULLEY, Idler

$

$

Not available

5

Simplicity 8191020

BUSHING, Idler Pulley

$

$

Not available

6

Simplicity 8161158

STOP, Belt

$

$

Not available

7

Simplicity 8111013

PULLEY, Drive

$

$

Not available

8

Simplicity 8171516

LEVER ASSEMBLY, Idler

$

$

Not available

9

Simplicity 8061052

BEARING, Pulley Shaft

$

$

Not available

10

Simplicity 8172506

HOUSING ASSEMBLY, Bearing, 24" Only

$

$

Not available

11

Simplicity 8172507

HOUSING ASSEMBLY, Bearing, 30" Only

$

$

Not available

12

Simplicity 8171052

SHAFT, Pulley, 24" Only

$

$

Not available

13

Simplicity 8171061

SHAFT, Pulley, 30" Only

$

$

Not available

14

Simplicity 8111002

SPROCKET

$

$

Not available

15

Simplicity 8161041

NUT, Wing, Complete

$0.99

$

Usually ships in 2-12 days

0

16

Simplicity 8161029

HITCH, Side Plate

$

$

Not available

17

Simplicity 8173515

ARM ASSEMBLY, Push, 30" Only

$

$

Not available

18

Simplicity 8173514

ARM ASSEMBLY, Push, 24" Only

$

$

Not available

19

Simplicity 8162501

CLAMP ASSEMBLY, Hitch

$

$

Not available

20

Simplicity 8171062

SHAFT, Bearing, Housing Arm, 30" Only

$

$

Not available

21

Simplicity 8171053

SHAFT, Bearing, Housing Arm, 24" Only

$

$

Not available

22

Simplicity 8171515

BAR ASSEMBLY, Push, R.H.

$

$

Not available

23

Simplicity 8173516

FENDER ASSEMBLY, Grass, 30" Only

$

$

Not available

24

Simplicity 8173513

FENDER ASSEMBLY, Grass, 24" Only

$

$

Not available

25

Simplicity 8171063

REEL CHAIN, 25" Long

$

$

Not available

26

Simplicity LP-475

BRACKET, Roller

$

$

Not available

27

Simplicity LP412

SHAFT, Roller, 24" Only

$

$

Not available

28

Simplicity LP411

ROLLER, 24" Only

$

$

Not available

28

Simplicity LP411

ROLLER, 30" Only

$

$

Not available

29

Simplicity LP696

SHAFT, Roller, 30" Only

$

$

Not available

30

Simplicity LP677

BRUSH BAR, 30" Only

$

$

Not available

31

Simplicity LPA473

BRUSH BAR, 24" Only

$

$

Not available

32

Simplicity LP610

BAR, Cutter, 30" Only

$

$

Not available

33

Simplicity LPA518

BAR ASSEMBLY, Cutter, 30" Only

$

$

Not available

34

Simplicity LP676

BAR, Cutter Blade, w/Rivets, 30" Only

$

$

Not available

35

Simplicity LPA406

BAR, Cutter, Complete, w/Blade, 24" Only

$

$

Not available

36

Simplicity LP434

BAR, Cutter, Blade, w/Rivets, 24" Only

$

$

Not available

37

Simplicity PSA17

SPROCKET

$

$

Not available

38

Simplicity L-114

ADJUSTING CAM

$

$

Not available

39

Simplicity F5-350

CAPSCREW, Hex, Head, 3/8"-24 x 7/8"

$

$

Not available

40

Simplicity LPA517

FRAME ASSEMBLY, L.H. Side

$

$

Not available

41

Simplicity LP-215-7

BEARING, Ball

$

$

Not available

42

Simplicity LP469

BEARING, Reel Washer

$

$

Not available

43

Simplicity LPA512-1

YOKE ASSEMBLY, Caster

$

$

Not available

44

Simplicity LP-513

AXLE, Caster

$

$

Not available

45

Simplicity LP-512

WHEEL, Caster, w/Bearings

$

$

Not available

46

Simplicity LPA515

REEL ASSEMBLY, L.H., w/Bearing, 30" Only

$

$

Not available

47

Simplicity LPA514

REEL ASSEMBLY, L.H., w/Bearing, 24" Only

$

$

Not available

48

Simplicity LPA516

FRAME ASSEMBLY, R.H. Side

$

$

Not available
