995621 - Simplicity Garden Tractors, Implements Tractor Parts Group (3697I01) Parts Diagram

Garden Tractors, Implements

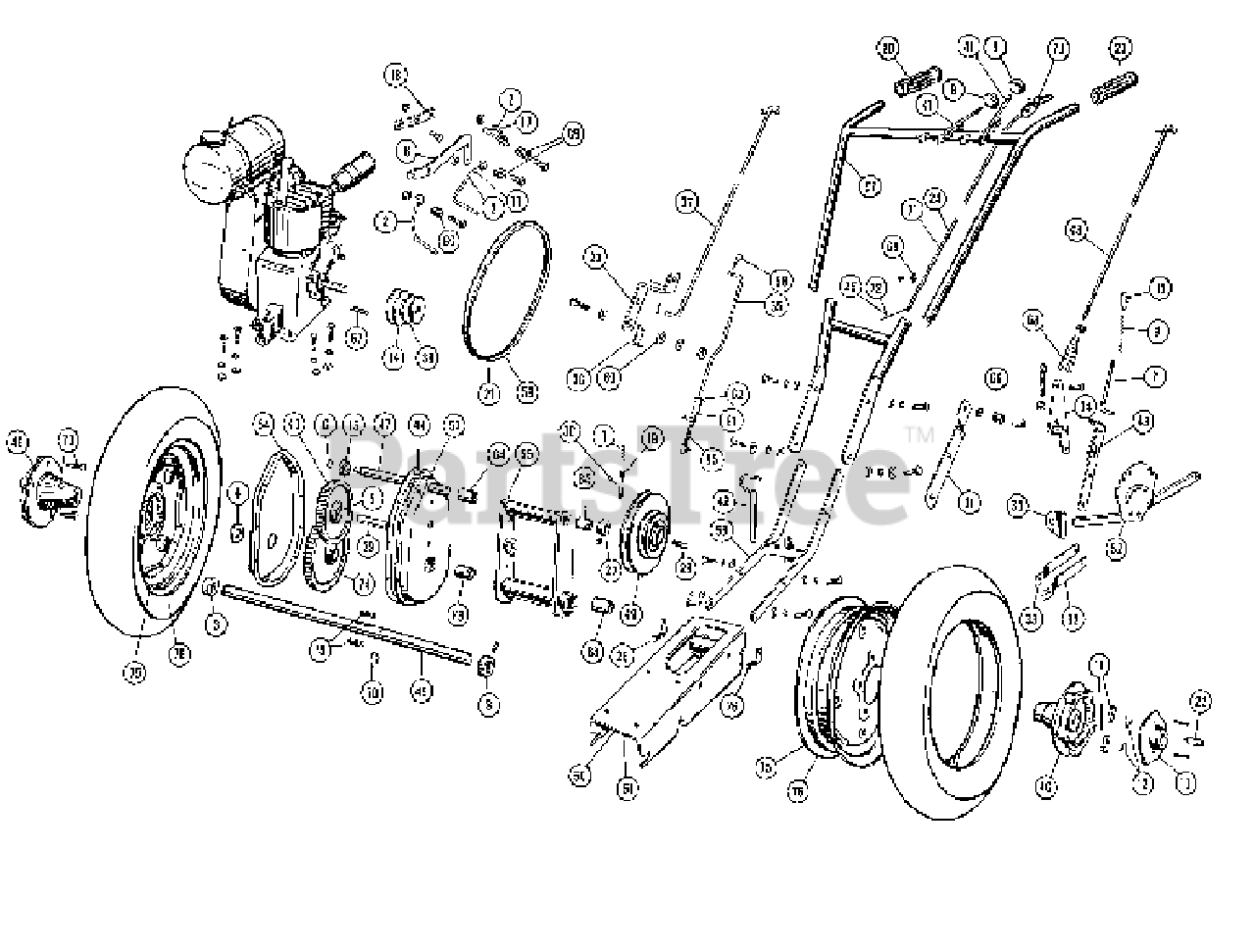

Tractor Parts Group (3697I01) Parts Diagram

  • Title

1

Simplicity 8021011

SPRING, Transmission Pulley

$

$

Not available

2

Simplicity 8021014

STOP, Belt

$

$

Not available

3

Simplicity 8021028

COLLAR, Set

$

$

Not available

4

Simplicity 8021031

GROMMET

$

$

Not available

5

Simplicity 8021032

BUSHING, Intermediate

$

$

Not available

6

Simplicity 8021035

RING, Retaining

$

$

Not available

7

Simplicity 8021041

PLUNGER

$

$

Not available

8

Simplicity 8021048

HOLDER, Belt Stop

$

$

Not available

9

Simplicity 1729255SM

BALL, Clutch Lever

$12.99

$

In Stock, only 1 left!

0

10

Simplicity 8021051

KNOB, Plunger

$

$

Not available

11

Simplicity 8021061

DOG, Ratchet

$

$

Not available

12

Simplicity 8021062

SPRING, Ratchet

$

$

Not available

13

Simplicity 8021063

CAGE, Ratchet

$

$

Not available

14

Simplicity 8021064

PULLEY, Engine (3 Hp Only)

$

$

Not available

15

Simplicity 8021066

PINION, Reduction

$

$

Not available

16

Simplicity 8021068

KEY, Axle

$

$

Not available

17

Simplicity 8021073

STOP, Belt (3 HP Only)

$

$

Not available

18

Simplicity 8021074

BRACKET, Belt Holder (3 HP Only)

$

$

Not available

19

Simplicity 8021075

PIN, Transmission Pulley

$

$

Not available

20

Simplicity 8021076

GRIP, Rubber

$

$

Not available

21

Simplicity 1665706SM

BELT, 39", Transmission (3 HP Only)

$24.99

$

Usually ships in 2-12 days

0

22

Simplicity 8021078

KEY (Ratchet Cage)

$

$

Not available

23

Simplicity 8021091

LEVER, Lower Clutch

$

$

Not available

24

Simplicity 8021095

CABLE, Throttle (3 HP only)

$

$

Not available

25

Simplicity 152016

WIRE, Throttle (3 HP only)

$

$

Not available

26

Simplicity 8021103

CLAMP, Bearing

$

$

Not available

27

Simplicity 1729254SM

COLLAR, Set (Pulley Shaft)
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

28

Simplicity 8021105

KEY, Transmission Pulley

$

$

Not available

29

Simplicity 8021106

SPINDLE, Intermediate

$

$

Not available

30

Simplicity 8021109

GUIDE, Shaft

$

$

Not available

31

Simplicity 8021110

EXTENSION, Frame

$

$

Not available

32

Simplicity 8021112

LINK, Throw-Out

$

$

Not available

33

Simplicity 8021113

LINK, Tapped, Throw-Out

$

$

Not available

34

Simplicity 8021114

LEVER, Lower Clutch

$

$

Not available

35

Simplicity 8061090

ROD, Lower Idler

$

$

Not available

36

Simplicity 8021121

STOP, Lever

$

$

Not available

37

Simplicity 8021122

ROD, Upper Idler

$

$

Not available

38

Simplicity 8021123

PULLEY, Engine (2 HP Only)

$

$

Not available

39

Simplicity 150001

PIN, Transmission Sheave Spring

$

$

Not available

40

Simplicity 8021503

GEAR ASSEMBLY, Cluster

$

$

Not available

41

Simplicity 8021504

LEVER ASSEMBLY, Clutch

$

$

Not available

42

Simplicity 8061502

PIN ASSEMBLY, Draw Bar

$

$

Not available

43

Simplicity 8021506

LEVER ASSEMBLY, Shift

$

$

Not available

44

Simplicity 8022008

GASKET, Gear Case

$

$

Not available

45

Simplicity 8022016

AXLE

$

$

Not available

46

Simplicity 8022021

HUB, Wheel

$

$

Not available

47

Simplicity 8022030

SHAFT, Pulley

$

$

Not available

48

Simplicity 8022035

ROD, Clutch

$

$

Not available

49

Simplicity 8022504

PULLEY ASSEMBLY, Transmission

$

$

Not available

50

Simplicity 8022506

BASE ASSEMBLY, 2 HP Only

$

$

Not available

51

Simplicity 8022510

BASE ASSEMBLY, 3 HP Only

$

$

Not available

52

Simplicity 8022511

THROW-OUT ASSEMBLY

$

$

Not available

53

Simplicity 8023001

CASE, Gear

$

$

Not available

54

Simplicity 8023002

COVER, Gear Case

$

$

Not available

55

HOUSING ASSEMBLY, Bearing

$

$

Not available

56

Simplicity 8023509

FRAME ASSEMBLY

$

$

Not available

57

Simplicity 8023510

HANDLE ASSEMBLY

$

$

Not available

58

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

59

Simplicity 8121083

BELT, Transmission, 43" (2 HP Only)

$

$

Not available

60

Simplicity 1663752SM

BUSHING

$5.99

$

In Stock, only 3 left!

0

61

Simplicity 8161518

SOCKET ASSEMBLY

$

$

Not available

62

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

63

Simplicity 8191043

AXLE, Bushing

$

$

Not available

64

Simplicity 8191044

SHAFT BEARING, Pulley

$

$

Not available

65

Simplicity 1729277SM

SPRING

$6.99

$

Usually ships in 2-12 days

0

66

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

67

Simplicity 1729279SM

KEY, Engine Pulley
(Superseded to 703889)

$4.49

$

In Stock, only 4 left!

0

68

Simplicity 8221104

END ASSEMBLY, Rod

$

$

Not available

69

Simplicity 8251071

CLAMP, Cable

$

$

Not available

70

Simplicity 8261032

RING, Retaining

$

$

Not available

71

Simplicity 8261285

CABLE, Throttle (2 HP Only)

$

$

Not available

72

Simplicity 8261086

WIRE, Throttle (2 HP Only)

$

$

Not available

73

Simplicity 1729280SM

BOLTS, Hub

$6.49

$

In Stock, Qty 5

0

74

Simplicity 8262002

GEAR, Drive

$

$

Not available

75

Simplicity 8262024

WHEEL, 4" Rim (2 HP Only)

$

$

Not available

76

Simplicity 8262023

WHEEL, 5" Rim (3 HP Only)

$

$

Not available

77

LEVER ASSEMBLY, Throttle

$

$

Not available

-

FITTINGS, Grease, Alemite #1641

$

$

Not available

-

TOOK KIT ONLY

$

$

Not available

-

GUN, Grease

$

$

Not available

-

WRENCH, Allen, 5/16", Short

$

$

Not available
