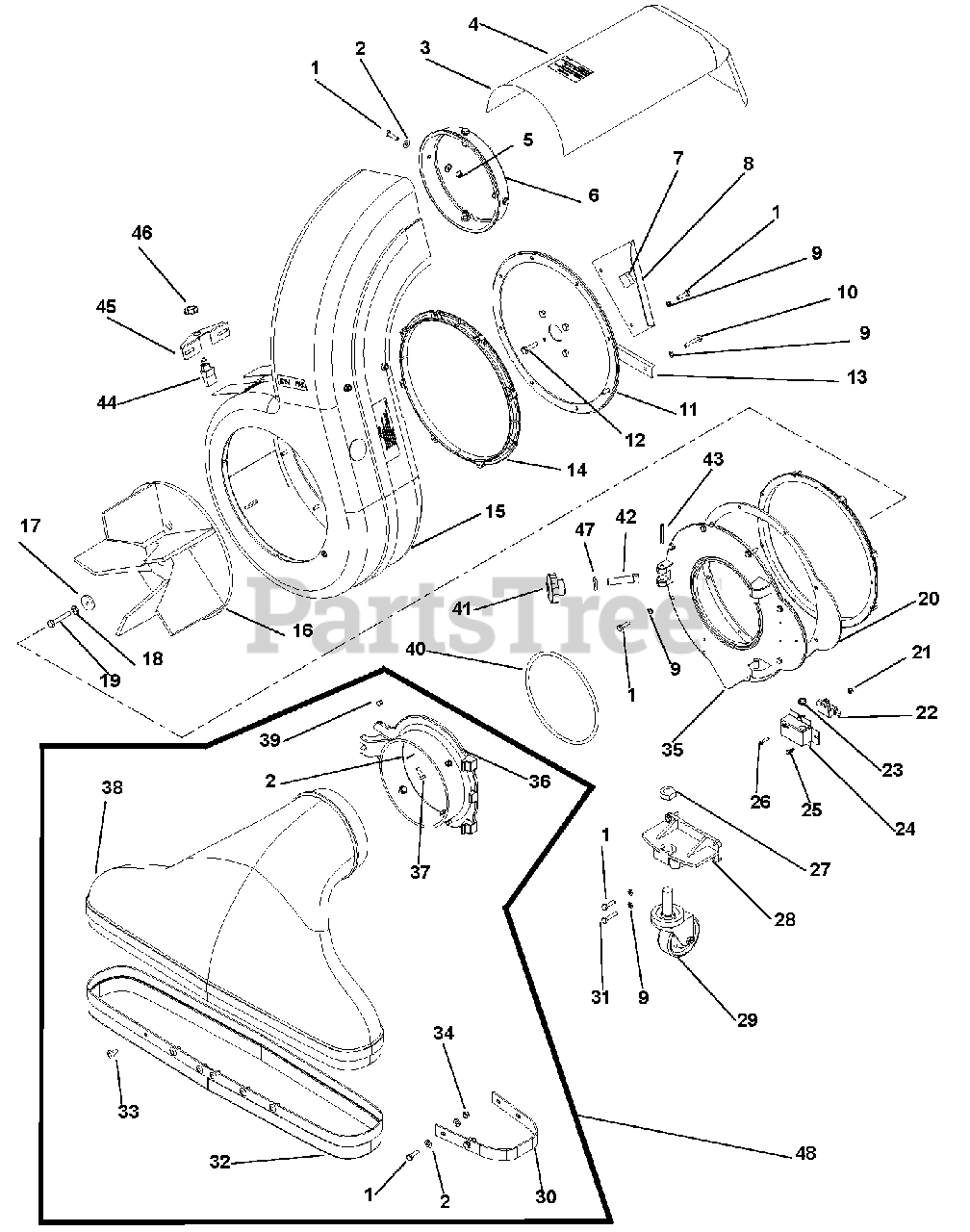

995810 - Parker Vac 35 Push Vacuum (SN: 000101 & Above) Intake, Blower Housing And Front Cover Assembly Parts Diagram

Vac 35 Push Vacuum

Intake, Blower Housing And Front Cover Assembly Parts Diagram

  • Title

1

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

2

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely P85-110-B

SPIN PAK DEFLECTOR

$296.99

$

Usually ships in 4-12 days

0

4

Gravely 04148000

DECAL, DANGER DISCHARGE

$

$

Not available

5

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

6

Gravely P85-59-C

RETAINING RING MACHINED

$88.99

$

Usually ships in 4-12 days

0

7

Gravely P350319

ANTI VIBRATION SPONGE

$

$

Not available

8

Gravely P81-194-D

HEAT SHIELD

$

$

Not available

9

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

10

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, Qty 8

0

11

Gravely P84-239-C

BACK COV.& GASKET ASSY.T

$

$

Not available

Gravely P62-187-C

RUBBER GASKET

Note: (not shown)

$

$

Not available

12

Gravely 05901423

BLT-HEX .31-24X1.25 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 04068168

SHIM PLATE, BLOWER HOUSING

$

$

Not available

14

Gravely P64-78-C

ANTI-WRAP SEGMENTS

$42.99

$

Usually ships in 4-12 days

0

15

Gravely P70-103-FR

HOUSING BLOWER VAC35 (RED)

Note: (Red)

$

$

Not available

16

Gravely P61-14-E

FAN WHEEL 3/4 BORE 5HP

$

$

Not available

17

Gravely 00102819

WASHER, .344X1.25X.179 FEND U

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 00967312

WASHER, M8XM19XM1 BLVL LOCK Y

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 05900132

BLT-HEX .31-24X1.75 G8 YZ

$3.99

$

Usually ships in 4-12 days

0

20

Gravely P75-03-C

GASKET FRONT COVER

$39.99

$

Usually ships in 4-12 days

0

21

Gravely 06531300

NUT-LK-NYL 8-32 W/INSTR YWZC

$0.99

$

Usually ships in 4-12 days

0

22

Gravely P740282

SWITCH-DELTA 6400-51

$

$

Not available

23

Gravely P101008

GROMMET, RUBBER - 3/8 ID, 1/2

$3.99

$

Usually ships in 4-12 days

0

24

Gravely P350130

SWITCH BKT 6400 18GA

$

$

Not available

25

Gravely 07415800

SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 06117000

SCR-MCH 8-32X.75 HWH YWZC

$4.99

$

Usually ships in 4-12 days

0

27

Gravely 06539900

NUT-JAM .75-16 YWZC

$3.99

$

In Stock, only 2 left!

0

28

Gravely P66-430-C

CASTER BKT

$95.99

$

Usually ships in 4-12 days

0

29

Gravely P64-71-A

CASTER 3.5 -36 - 314GF W/DUS

$95.99

$

Usually ships in 4-12 days

0

30

Gravely P62-98-C

GUARD

$36.99

$

Usually ships in 4-12 days

0

31

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

32

Gravely P73-67-D

SKIRT 30" HOUSING

$111.99

$

Usually ships in 4-12 days

0

33

Gravely P80-332-A

XMAS TREE FASTNER-BLACK

$2.99

$

In Stock, Qty 11

0

34

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 50527000

FRONT COVER CASTING W/DECAL

$336.99

$

Usually ships in 4-12 days

0

36

Gravely P350152

COLLAR CV

$164.99

$

Usually ships in 4-12 days

0

37

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

38

Gravely P77-18-F

INTAKE HOUSING 30"

$

$

Not available

39

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

40

Gravely P63-190-A

O- RING GASKET

$27.99

$

Usually ships in 4-12 days

0

41

Gravely P80-29-A

KNOB-PLASTIC

$17.99

$

Usually ships in 4-12 days

0

42

Gravely P63-192-A

PIVOT BOLT

$

$

Not available

43

Gravely 00967129

PIN, ROL .250X1.00

$

$

Not available

44

Gravely P740283

SESWITCH-DELTA (7050-10 REV D)

Note: (705-10 Reverse D)

$

$

Not available

45

Gravely P350129

SWITCH BRACKET FOR 7050-10 16G

$17.99

$

Usually ships in 4-12 days

0

46

Gravely P350135

SWITCH NUT 9250

$3.99

$

Usually ships in 4-12 days

0

47

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

48

Gravely PSA-911-DR

30" INTAKE ASSY VAC35 (RED)

Note: (Red, Includes Items 1, 2, 30-39)

$424.99

$

Usually ships in 4-12 days

0
