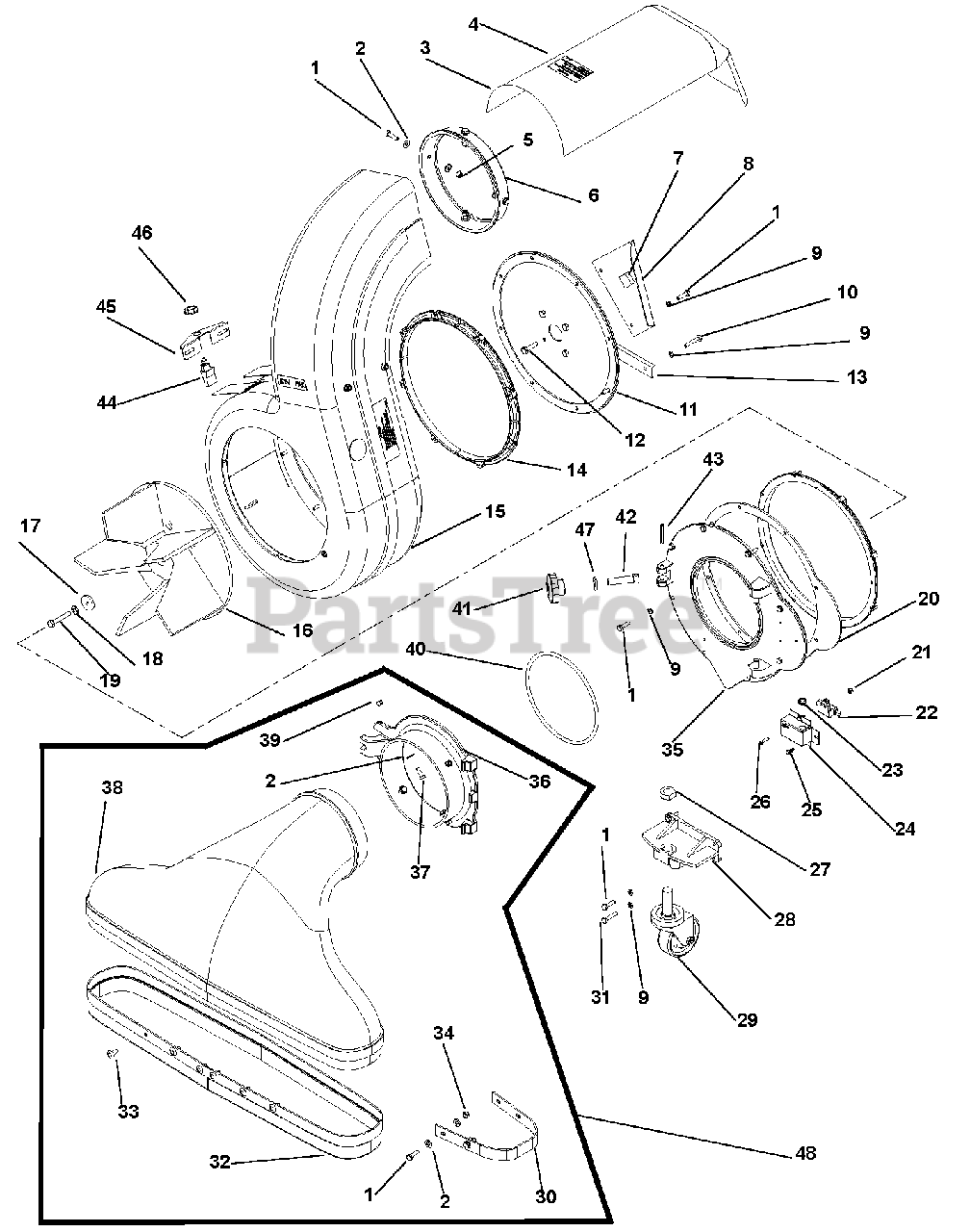

995810 - Parker Vac 35 Push Vacuum (SN: 000101 & Above) Intake, Blower Housing And Front Cover Assembly Parts Diagram

Vac 35 Push Vacuum

Intake, Blower Housing And Front Cover Assembly Parts Diagram

  • Title

1

Gravely 05947700

Bolt, Hex .25-20 x 1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

2

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

3

Gravely P85-110-B

Spin Pak Deflector

$285.99

$

Usually ships in 4-12 days

0

4

Gravely 04148000

Decal, Danger Discharge

$21.99

$

Usually ships in 4-12 days

0

5

Gravely 06531000

Nut, Locking Nylon .250-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

6

Gravely P85-59-C

Retaining Ring

$86.99

$

Usually ships in 4-12 days

0

7

Gravely P350319

Anti Vibration Sponge

$

$

Not available

8

Gravely P81-194-D

Heat Shield

$

$

Not available

9

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

10

Gravely 05952500

Bolt, Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

11

Gravely P84-239-C

Back Cover and Gasket Assembly

$

$

Not available

Gravely P62-187-C

Rubber Gasket (not shown)

Note: (not shown)

$

$

Not available

12

Gravely 05901423

Bolt, Hex .31-24 x 1.25 Grade 5

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 04068168

Shim Plate, Blower Housing

$

$

Not available

14

Gravely P64-78-C

Anti-Wrap Segments

$40.99

$

Usually ships in 4-12 days

0

15

Gravely P70-103-FR

Housing, Blower VAC 35 (Red)

Note: (Red)

$

$

Not available

16

Gravely P61-14-E

Fan, 3/4" Shaft

$

$

Not available

17

Gravely 00102819

Washer, .344 x 1.25 x .179 Fend

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 00967312

Washer, M8 x M19 x M1 Bellville Lock

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 05900132

Bolt, Hex .31-24 x 2.00

$3.99

$

Usually ships in 4-12 days

0

20

Gravely P75-03-C

Gasket, Front Cover

$37.99

$

Usually ships in 4-12 days

0

21

Gravely 06531300

Nut, Locking, Nylon 8-32 with Insert

$1.99

$

Usually ships in 4-12 days

0

22

Gravely P740282

Switch, Delta 6400-51

$9.49

$

Usually ships in 4-12 days

0

23

Gravely P101008

Grommet, Rubber, 3/8 ID, 1/2

$3.99

$

Usually ships in 4-12 days

0

24

Gravely P350130

Switch Bracket

$

$

Not available

25

Gravely 07415800

Screw, Tapping 10-4 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400130)

$2.49

$

In Stock, Qty 7

0

26

Gravely 06117000

Screw, Machine, 8-32 x .75 Hex Washer Head

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06539900

Nut, Jam .75-16

$3.49

$

In Stock, only 2 left!

0

28

Gravely P66-430-C

Caster Mount

$93.99

$

Usually ships in 4-12 days

0

29

Gravely P64-71-A

Caster

$91.99

$

Usually ships in 4-12 days

0

30

Gravely P62-98-C

Guard

$35.99

$

Usually ships in 4-12 days

0

31

Gravely 05947400

Bolt, Hex .25-20 x 1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

32

Gravely P73-67-D

Skirt 30" Intake

$108.99

$

Usually ships in 4-12 days

0

33

Gravely P80-332-A

Fastener

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 06529700

Nut, Locking Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 50527000

Front Cover Casting w/Decal

$323.99

$

Usually ships in 4-12 days

0

36

Gravely P350152

Collar CV

$160.99

$

Usually ships in 4-12 days

0

37

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

38

Gravely P77-18-F

Intake Housing 30"

$

$

Not available

39

Gravely 06529700

Nut, Locking Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

40

Gravely P63-190-A

O-Ring Gasket

$26.99

$

Usually ships in 4-12 days

0

41

Gravely P80-29-A

Knob, Plastic

$16.99

$

Usually ships in 4-12 days

0

42

Gravely P63-192-A

Pivot Bolt

$

$

Not available

43

Gravely 00967129

Pin, Roll .250 x 1.00

$

$

Not available

44

Gravely P740283

SE Switch, Delta (705-10 Reverse D)

Note: (705-10 Reverse D)

$31.99

$

Usually ships in 4-12 days

0

45

Gravely P350129

Switch Bracket for 7050-10 16 Ga

$16.99

$

Usually ships in 4-12 days

0

46

Gravely P350135

Switch Nut 9250

$3.49

$

Usually ships in 4-12 days

0

47

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

48

Gravely PSA-911-DR

30" Intake Assembly Vac-35 (Red, Includes Items 1, 2, 30-39)

Note: (Red, Includes Items 1, 2, 30-39)

$407.99

$

Usually ships in 4-12 days

0
