995821 - Parker APV Vacuum with Hose (SN: 000101 & Above) Blower Assembly Parts Diagram

APV Vacuum with Hose

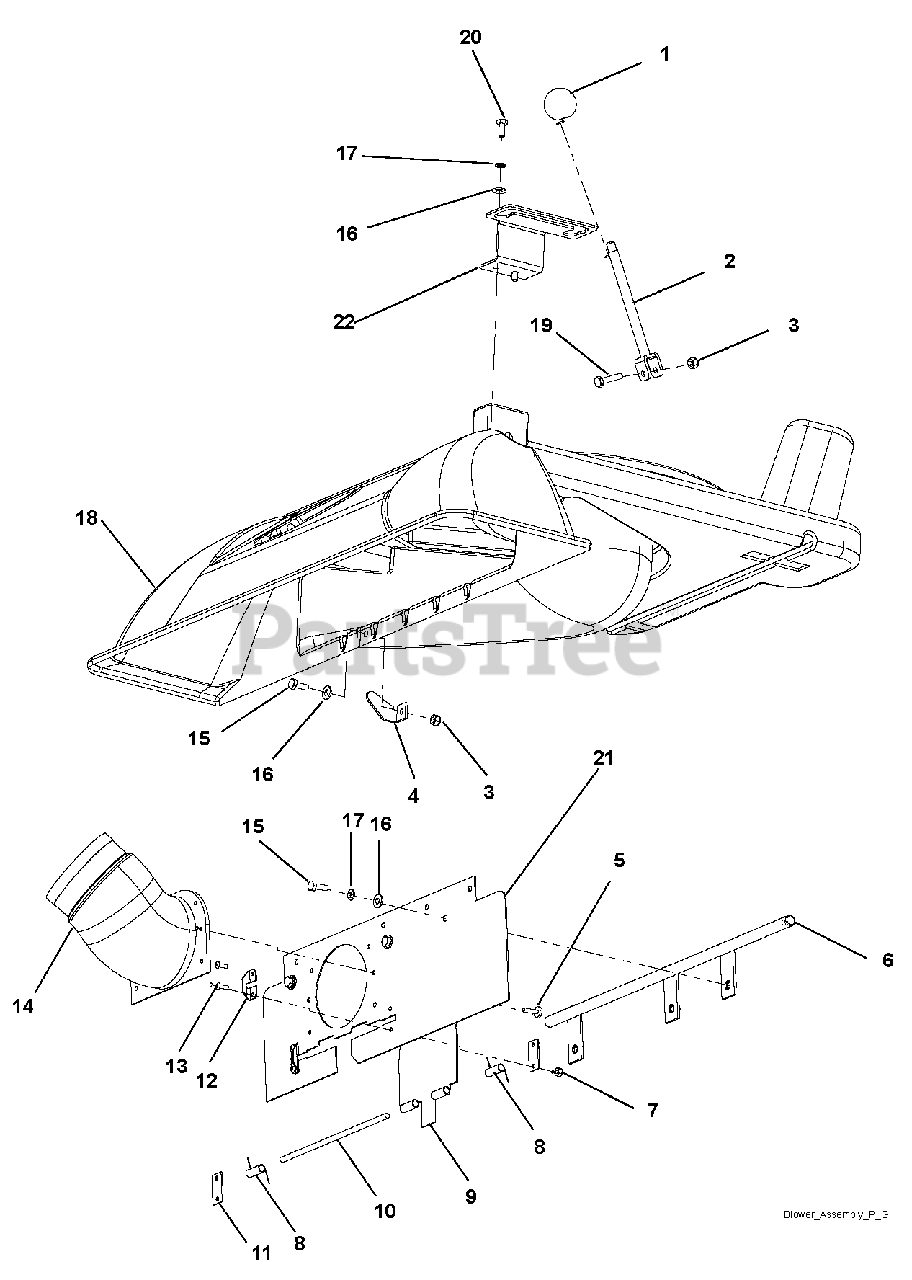

Blower Assembly Parts Diagram

  • Title

1

Gravely 07533500

Knob, Ball, Black 1.47" .375-16

$9.99

$

In Stock, only 4 left!

0

2

Gravely 04079568

Lever Assembly, APV

$38.99

$

Usually ships in 4-12 days

0

3

Gravely 06531000

Nut, Locking, Nylon .250-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

4

Gravely P410041

APV Activator, Secondary Flap

$12.99

$

Usually ships in 4-12 days

0

5

Gravely P92-28

Bulb Tite Rivet

$

$

Not available

6

Gravely 04080968

Hinge Assembly

$31.99

$

Usually ships in 4-12 days

0

7

Gravely 06531300

Nut, Locking, Nylon 8-32 w/Insert

$1.99

$

Usually ships in 4-12 days

0

8

Gravely P410035

APV Spring, Hose Door

$5.99

$

Usually ships in 4-12 days

0

9

Gravely P410032

APV Secondary Flap Weldment

$42.99

$

Usually ships in 4-12 days

0

10

Gravely P410034

APV Hinge Pin Secondary Flap

$21.99

$

Usually ships in 4-12 days

0

11

Gravely P410036

APV Retaining Bracket, Secondary Flap

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 04319668

Clamp, Diverter Shaft, APV

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 06100209

Screw, 8-32 X .50, Pan, Allen

$

$

Not available

14

Gravely P410006R

APV Adapter Flange, Hose, '07 Parker Red

$

$

Not available

15

Gravely 05946800

Bolt, Hex .25-20 X .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

16

Gravely 06437300

Washer, Flat, Steel .281 X .62 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

17

Gravely 06308400

Washer, Locking .25 X .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

18

Gravely P410001R

APV Main Housing, w/Hose, '07 Parker Red

$

$

Not available

19

Gravely 05947400

Bolt, Hex .25-20 X 1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

20

Gravely 05900338

Bolt, Hex .25-20 X .63
(Superseded to 05901722)

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 04079768

Diverter Flap, APV

$37.99

$

Usually ships in 4-12 days

0

22

Gravely 04079668

Lever Stop, APV

$

$

Not available
