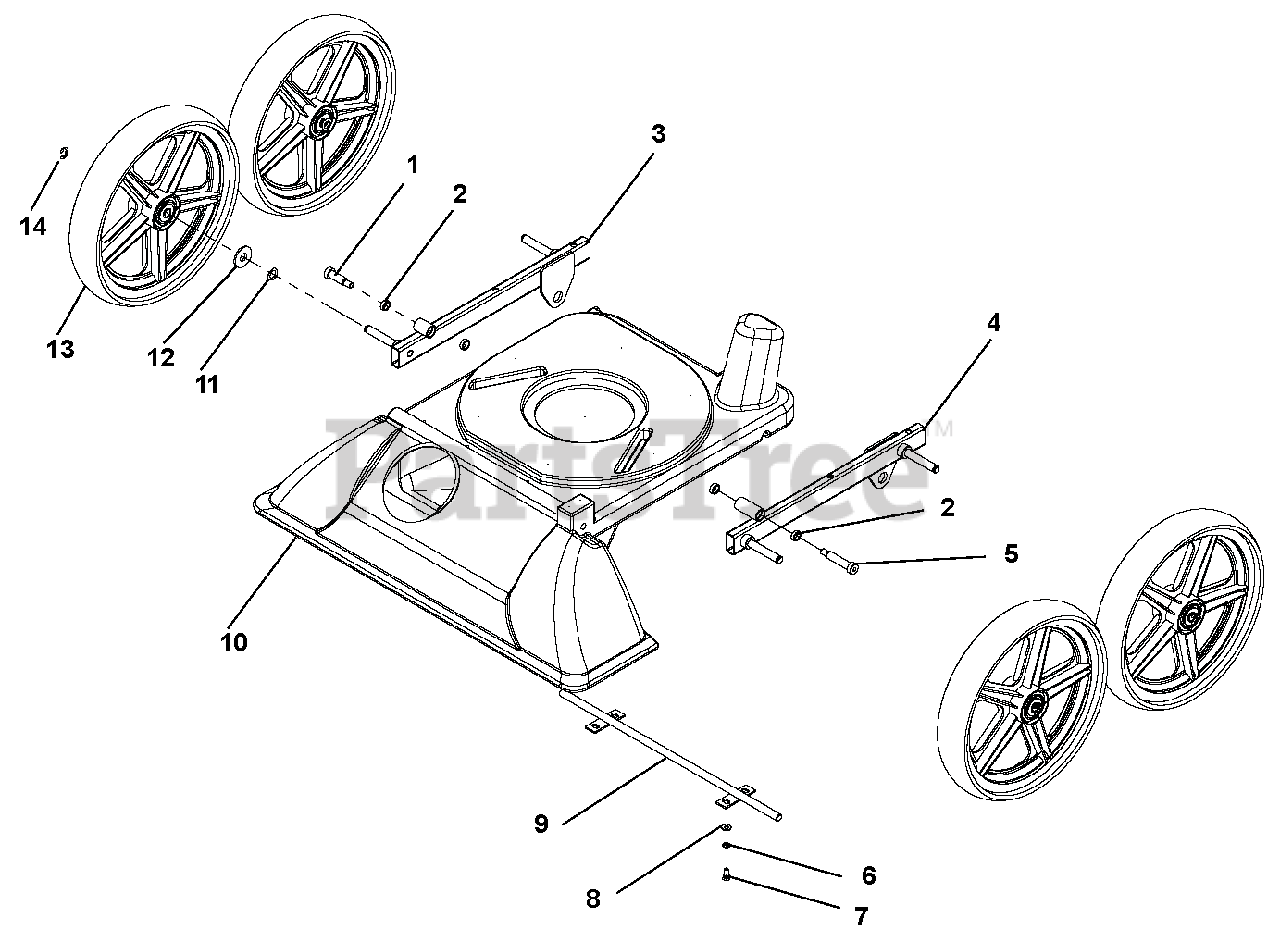

995821 - Parker APV Vacuum with Hose (SN: 000101 & Above) Wheel Assembly Parts Diagram

APV Vacuum with Hose

Wheel Assembly Parts Diagram

  • Title

1

Gravely 07070121

BLT-SHLDR .5X1.25X.38-16

$6.49

$

Usually ships in 4-12 days

0

2

Gravely P361103

OILITE SLEEVE AA-618-16

$3.99

$

Usually ships in 4-12 days

0

3

Gravely P410076

APV-SIDE RAIL WMT ASSY - RIGHT

$149.99

$

Usually ships in 4-12 days

0

4

Gravely P410071

APV-SIDE RAIL WMT ASSY - LEFT

$

$

Not available

5

Gravely 07070127

BLT-SHLDR .5X2.0X.38-16 U

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 7

0

7

Gravely 05900338

BLT-HEX .25-20X.63 GR5 YWZC
(Superseded to 05901722)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Gravely P410077

APV-BAR-BODY ADJUST

$80.99

$

Usually ships in 4-12 days

0

10

Gravely P410001R

APV-MAIN HOUSING,W/HOSE '07 PA

$

$

Not available

11

Gravely P711524

WSR-WAVE .52 X .87 X .01

$3.99

$

Usually ships in 4-12 days

0

12

Gravely P711510

WSR-FLT .50 X 1.37 X .10

$3.99

$

Usually ships in 4-12 days

0

13

Gravely P410051

APV-WHEEL-SPARTECH 14IN

$50.99

$

Usually ships in 4-12 days

0

14

Gravely 05700138

RET RING-E EXT .50

$

$

Not available
