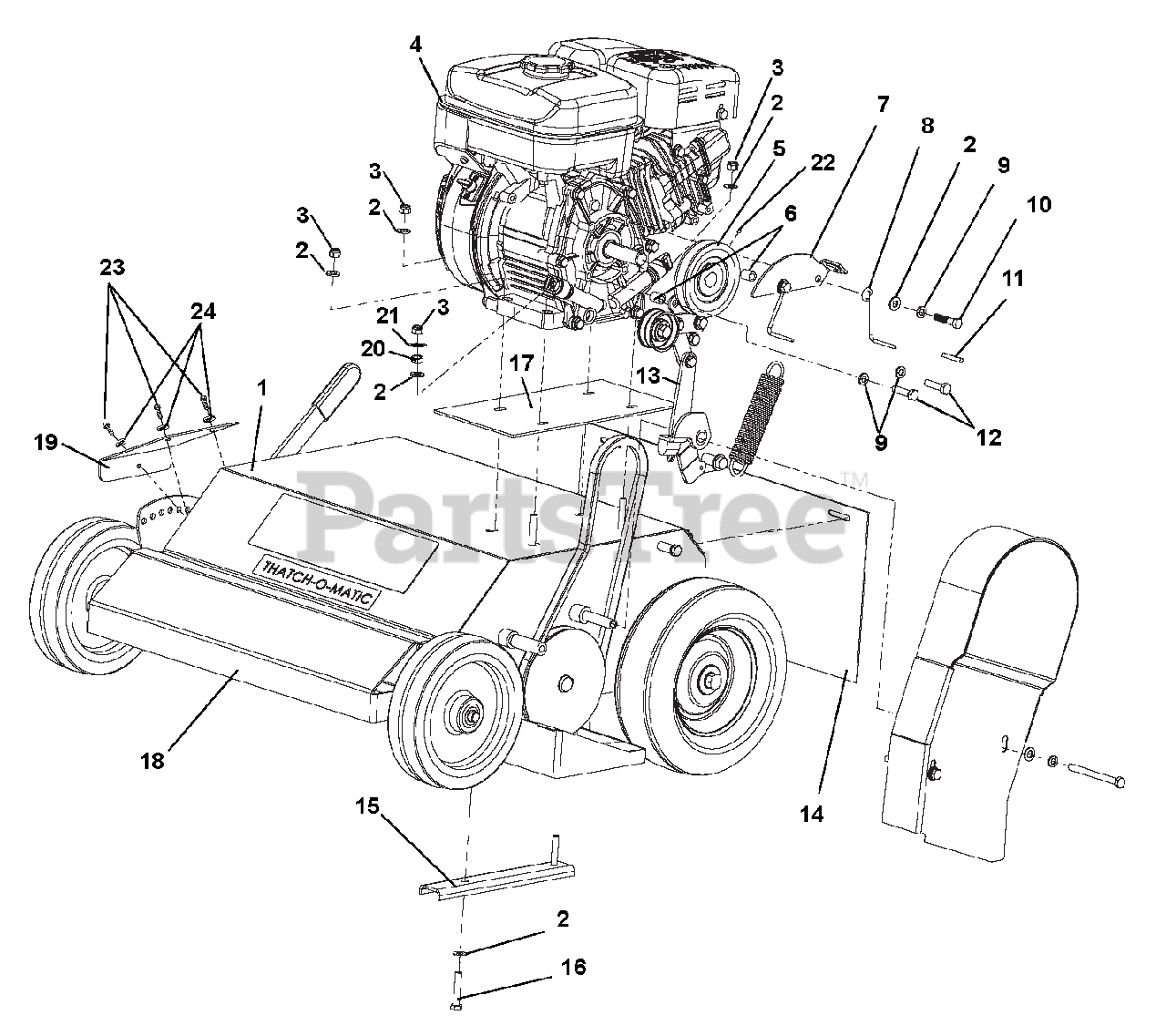

995862 - Gravely Thatch-O-Matic, Tine (SN: 000101 & Above) Frame And Engine Parts Diagram

Thatch-O-Matic, Tine

Frame And Engine Parts Diagram

  • Title

1

Gravely 04286200

HOUSING, WLDT,W/DECALS GRAVELY

$205.99

$

Usually ships in 4-12 days

0

2

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

4

Gravely 08200429

ENGINE,SUBARU 6HP SP170 (CARB)

Note: (Carb)

$

$

Not available

5

Gravely P77-62-A

SHEAVE, 2275-3/4" BORE

Note: (995862)(Used with spring tine reel)

$37.99

$

Usually ships in 4-12 days

0

Gravely P89-133-B

AK39-3/4 PULLY-SHEAVE

Note: (995863 Thatch-O-Matic with Flail Assembly)(Used with flail reel)

$

$

Not available

6

Gravely 04260800

SPACER

$17.99

$

Usually ships in 4-12 days

0

7

Gravely P88-41-A

WELD-BRKT

$

$

Not available

8

Gravely P70-71-A

BELT POPPER

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

10

Gravely P60-516-24

BLT-HH 5/16-24 X 1.5 #5 (02CSF
(Superseded to 05963500)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely P68-137-A

KEY 3/16" X 1 1/4"

$3.99

$

Usually ships in 4-12 days

0

12

Gravely P60-516-20

BLT-HH 5/16-24 X 1.25 #5
(Superseded to 05901423)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 04348400

CLUTCH PULLEY ASSY, DETHATCHER

$224.99

$

Usually ships in 4-12 days

0

14

Gravely P89-143-C

DRAG STRIP

$59.99

$

Usually ships in 4-12 days

0

15

Gravely P90-13

STIFFENER

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 9

0

17

Gravely P90-12

MOUNTING PLATE

$12.99

$

Usually ships in 4-12 days

0

18

Gravely 04228868

FRONT BUMPER WLDT
(Superseded to 04228851)

$77.99

$

Usually ships in 4-12 days

0

19

Gravely 04258353

GUARD, RH

Note: (995863 Thatch-O-Matic with Flail Assembly)

$32.99

$

Usually ships in 4-12 days

0

20

Gravely 06500011

NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 13

0

21

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, Qty 8

0

22

Gravely 06005500

SCR-SET .31-18X.38 SKHCUPDL

$3.49

$

In Stock, only 2 left!

0

23

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 2 left!

0

24

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 7

0
