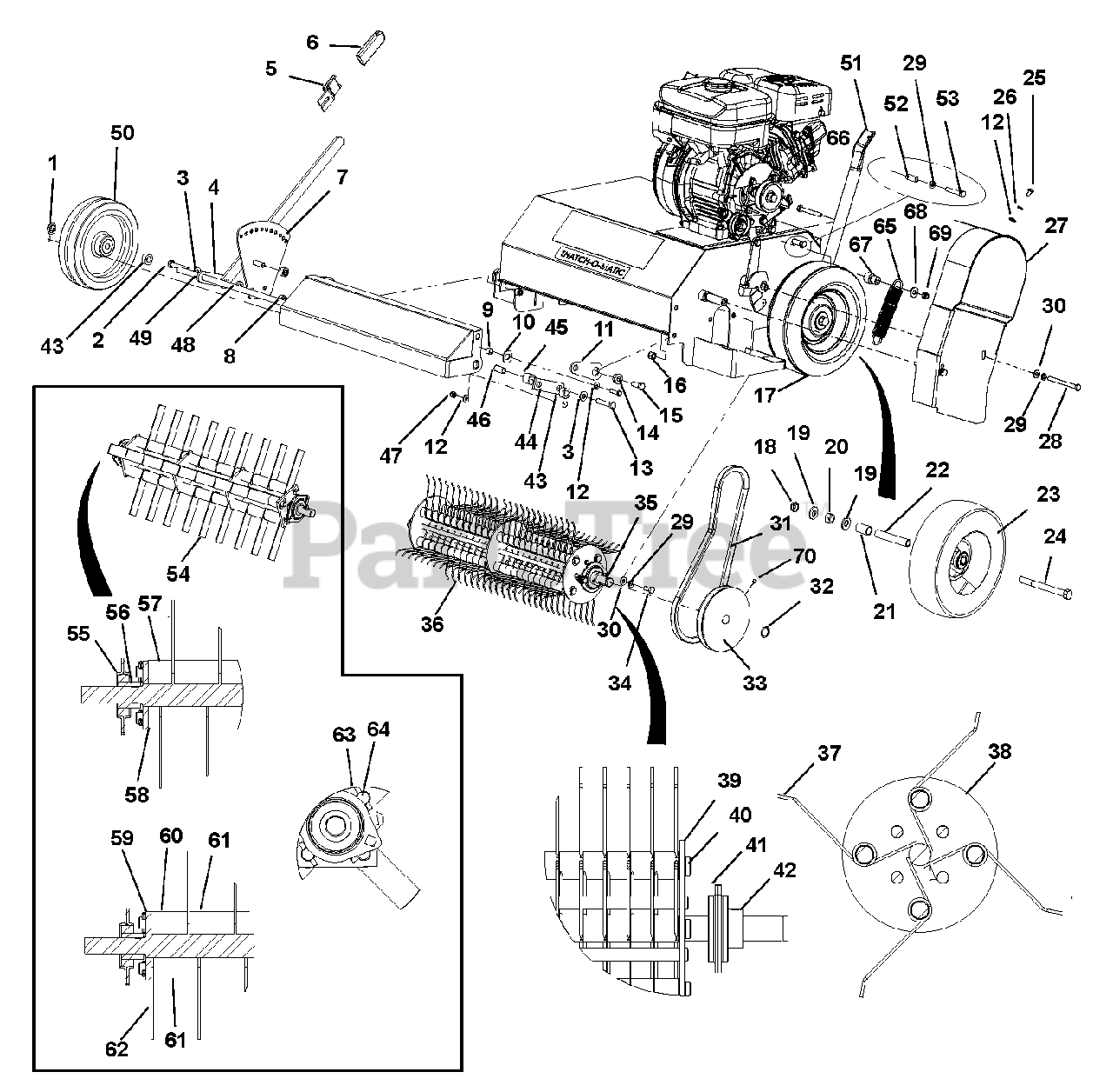

995863 - Gravely Thatch-O-Matic, Flail (SN: 000101 & Above) Tine, Belt And Wheel Assembly Parts Diagram

Thatch-O-Matic, Flail

Tine, Belt And Wheel Assembly Parts Diagram

  • Title

1

Gravely P130032

Cap, Retainer, 1/2"

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 05963300

Bolt, Hex .38-16 x 2.00
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

4

Gravely P89-84-A

Spacer .386 x .50 x .56

$20.99

$

Usually ships in 4-12 days

0

5

Gravely P85-99-B

Weld-Latch

$32.99

$

Usually ships in 4-12 days

0

6

Gravely P76-80-A

Grip, Lever
(Superseded to D18079)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 04245968

Weldment Bracket, HOC Adjustment
(Superseded to 04245951)

$45.99

$

Usually ships in 4-12 days

0

8

Gravely P83-181-A

Spacer .413 x .75 x .39

$

$

Not available

9

Gravely 04221300

Spacer, Long Dethatcher

$26.99

$

Usually ships in 4-12 days

0

10

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

11

Gravely 04227300

Link, Front Bumper

$7.49

$

Usually ships in 4-12 days

0

12

Gravely 06437300

Flat Washer .250 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

13

Gravely 05958500

Bolt, Hex .38-16 x 1.75
(Superseded to 05901809)

$1.99

$

In Stock, only 4 left!

0

14

Gravely 04227400

Spacer, Front Bumper

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06535800

Locknut, Nylock 3/8-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

17

Gravely PSA-1190-A

PR-Rear Wheel Assembly (PSA-1190-A includes items 18 through 24)

Note: (PSA-1190-A includes items 18 through 24)

$

$

Not available

18

Gravely 06544000

Nut, Jam, Nyloc .50-20 Grade 2
(Superseded to 06500818)

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

20

Gravely 06510400

Nut, .50-20

$

$

Not available

21

Gravely P86-118A114

Spacer, Axle

$24.99

$

Usually ships in 4-12 days

0

22

Gravely P90-31

Spacer .527 x .625 x 3.40

$15.99

$

Usually ships in 4-12 days

0

23

Gravely P84-137-C

Wheel

$

$

Not available

24

Gravely P713067

Bolt, Hex .50-13 x 5.00 Grade 5

$

$

Not available

25

Gravely 05947900

Bolt, Hex .25-20 x .50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

26

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 13

0

27

Gravely 04277600

Belt Guard with Warning Decal

$142.99

$

Usually ships in 4-12 days

0

28

Gravely 05948000

Bolt, Hex .31-18 x 3.50

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

31

Gravely P89-134-A

Belt, Gates A35 (995862 Thatch-O-Matic with Tine Assembly)(Used with flail reel)

Note: (995862 Thatch-O-Matic with Tine Assembly)(Used with flail reel)

$42.99

$

Usually ships in 4-12 days

0

Gravely P77-01-A

Belt, A35 (Used with spring tine reel)

Note: (Used with spring tine reel)

$48.99

$

Usually ships in 4-12 days

0

32

Gravely 05700135

Snap Ring, .750 x .042 External (Only used with tine reel)

Note: (Only used with tine reel)

$2.99

$

In Stock, only 2 left!

0

33

Gravely P76-377-B

AK-59-3/4 Pulley-Sheave

$

$

Not available

34

Gravely 05947000

Bolt, Hex, .31-18 x .75
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 06608700

Key, Woodruff .19 x .75 HRD #9

$1.49

$

In Stock, Qty 20+

0

36

Gravely PSA-1189-B

Tine and Bearing Assembly (995862 Thatch-O-Matic with Tine Assembly)

Note: (995862 Thatch-O-Matic with Tine Assembly)

$

$

Not available

37

Gravely P66-238-A

Spring, Tine

$

$

Not available

Gravely P66-238-A-1

Tine Spring, Box of 101

$

$

Not available

38

Gravely P83-44-C

Tine Shaft Assembly

$90.99

$

Usually ships in 4-12 days

0

39

Gravely 05700192

513350 .50 E Ring Y-Zinc

$3.99

$

Usually ships in 4-12 days

0

40

Gravely P83-45-A

Rod Spring

$65.99

$

Usually ships in 4-12 days

0

41

Gravely P340742

Bearing, Flange Presweep Zinc

$17.99

$

In Stock, only 1 left!

0

42

Gravely P66-138-A

Bearing

$17.99

$

Usually ships in 4-12 days

0

43

Gravely P79-16-A

Spacer-Clutch

$

$

Not available

44

Gravely 04288600

Weldment, Axle Arm

$40.99

$

Usually ships in 4-12 days

0

45

Gravely P73-414-A

Spacer .513 x .875x .750

$

$

Not available

46

Gravely P83-193-A

Spacer .384 x .50 x .97

$

$

Not available

47

Gravely 06531000

Nut, Locking, Nylon .250-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

48

Gravely P86-86-A

Spacer .391 x .75 x .156

$

$

Not available

49

Gravely 04229000

Axle Weldment, Front

$78.99

$

Usually ships in 4-12 days

0

50

Gravely P360133

Wheel Assembly
(Superseded to 07100911)

$41.99

$

Usually ships in 4-12 days

0

51

Gravely P88-94-C

Handle Back Brace

$228.99

$

Usually ships in 4-12 days

0

52

Gravely P80-238-A

Bushing .437 OD x 1.00

$

$

Not available

53

Gravely 05957400

Bolt, Hex .31-18 x 1.75 GR5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 7

0

54

SA-1001-D

Flail Reel Assembly

$

$

Not available

55

Gravely P340742

Bearing, Flange Presweep Zinc

$17.99

$

In Stock, only 1 left!

0

56

Gravely P66-138-A

Bearing

$17.99

$

Usually ships in 4-12 days

0

57

Gravely P66-54-A

Spacer .625 x 1.00 x 1.062

$6.49

$

Usually ships in 4-12 days

0

58

Gravely P66-55-A

Spacer .625 x 1.00 x .50

$6.99

$

Usually ships in 4-12 days

0

59

Gravely P70-52-B

Weld, Flail Reel

$171.99

$

Usually ships in 4-12 days

0

60

Gravely P66-53-A

Spacer .625 x 1.00 x 1.594

$10.99

$

Usually ships in 4-12 days

0

61

Gravely P66-52-A

Spacer .625 x 1.00 x 1.984

$10.99

$

Usually ships in 4-12 days

0

62

Gravely P66-56-A

Thatching Blade

$6.49

$

Usually ships in 4-12 days

0

Gravely P66-56-A-1

Flail Blade, 36 Pack

$

$

Not available

63

Gravely P57-97-A

Pin, Roll 5/32 x 1.00 Plain
(Superseded to 05802900)

$0.99

$

In Stock, Qty 16

0

64

Gravely P70-48-A

Rod Flail Reel, 20.063"

$36.99

$

Usually ships in 4-12 days

0

65

Gravely 04232100

Spring, Extension

$48.99

$

Usually ships in 4-12 days

0

66

Gravely 05952600

Bolt, Hex .31-18 x 2.50 GR5
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

67

Gravely 04348653

Spring Standoff

$11.99

$

Usually ships in 4-12 days

0

68

Gravely 06435700

Washer, Flat, Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

69

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

70

Gravely 06005500

Screw, Set .31-18 x .38 Socket Head

$3.49

$

In Stock, only 2 left!

0
