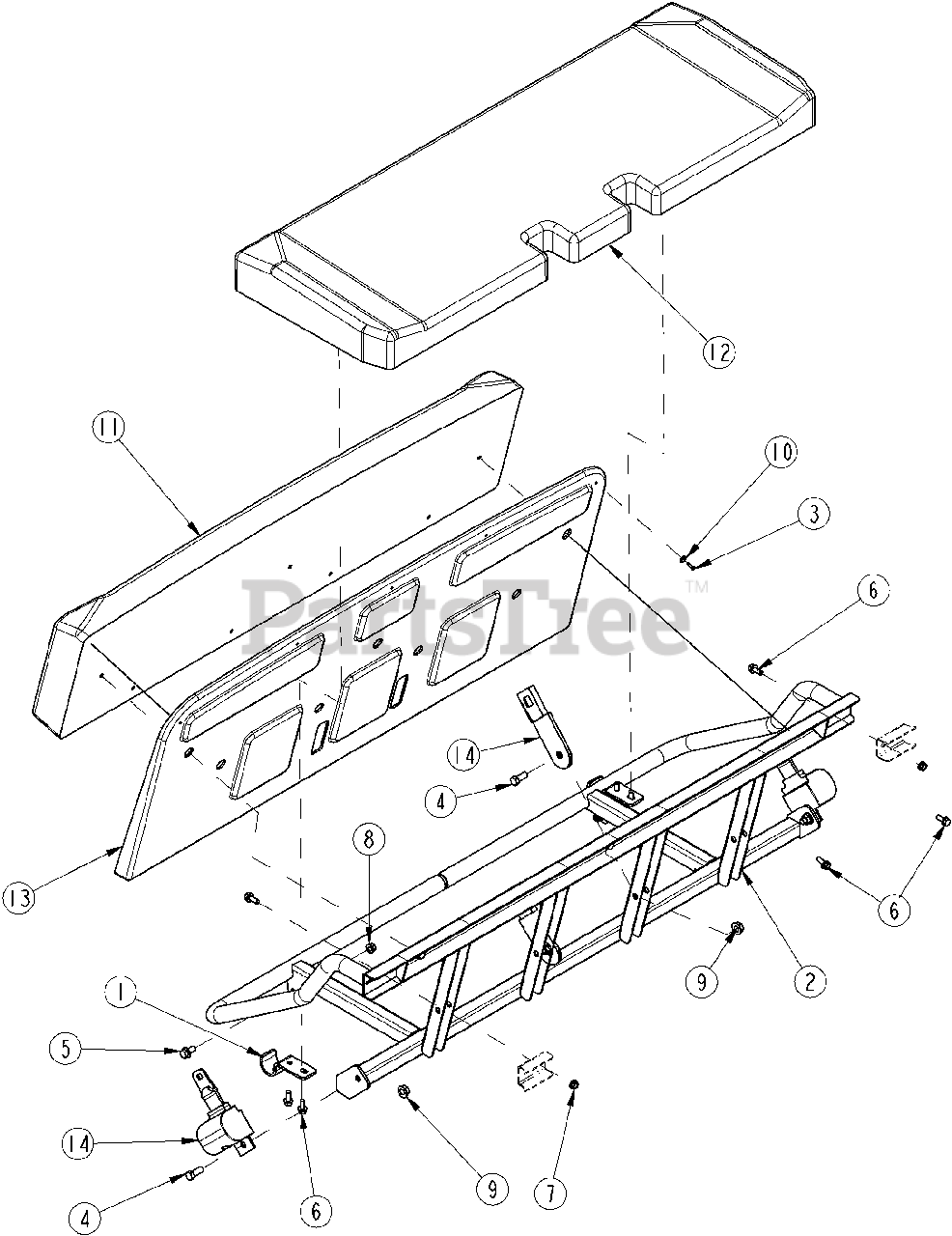

996120 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) > Parts Diagrams (39) > Bench Seat

  • Title
700-389D

1

SEAT PIVOT PLATE

Part# 700-389D

Not available

700-460H

2

BENCH SEAT WELDMENT

Part# 700-460H

Not available

801-214C

3

SCREW, OVPH SM 8 X 3/4 SS

Part# 801-214C

Not available

05958700

4

BOLT, HEX 7/16-14 X 1 GR5

Part# 05958700

OEM Warranty Repair Part for Gravely

Not available

802-185C

5

HFSS 3/8-16X3/4 LG

Part# 802-185C

Not available

802-387C

6

HFS 5/16-18X3/4 GR5

Part# 802-387C

Not available

803-177C

7

NUT HEX FLG TP LK 5/16-18ZNYCR

Part# 803-177C

OEM Warranty Repair Part for Gravely

Not available

803-209C

8

NUT FLANGE LOCK 3/8-16 PLT

Part# 803-209C

Not available

803-229C

9

NUT HEX FLANGE LOC 7/16-14 PLT

Part# 803-229C

Not available

804-223C

10

WASHER, #8 FINISH CUP

Part# 804-223C

Not available

839-409C

11

BENCH SEAT BACK TAN (ST)

Part# 839-409C

Note: (ST)

Not available

840-317C

11

BENCH SEAT BACK CUSH, BLACK

Part# 840-317C

Not available

839-410C

12

BENCH SEAT BOTTOM TAN (ST)

Part# 839-410C

Note: (ST)

Not available

840-316C

12

BENCH SEAT BOTTOM CUSH, BLACK

Part# 840-316C

Not available

840-269C

13

BENCH SEAT BACK PANEL

Part# 840-269C

Not available

840-272C

14

SEAT BELT, RETRACTABLE

Part# 840-272C

Not available
