996120 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999)

Treker Utility Vehicle, 4x2, Red

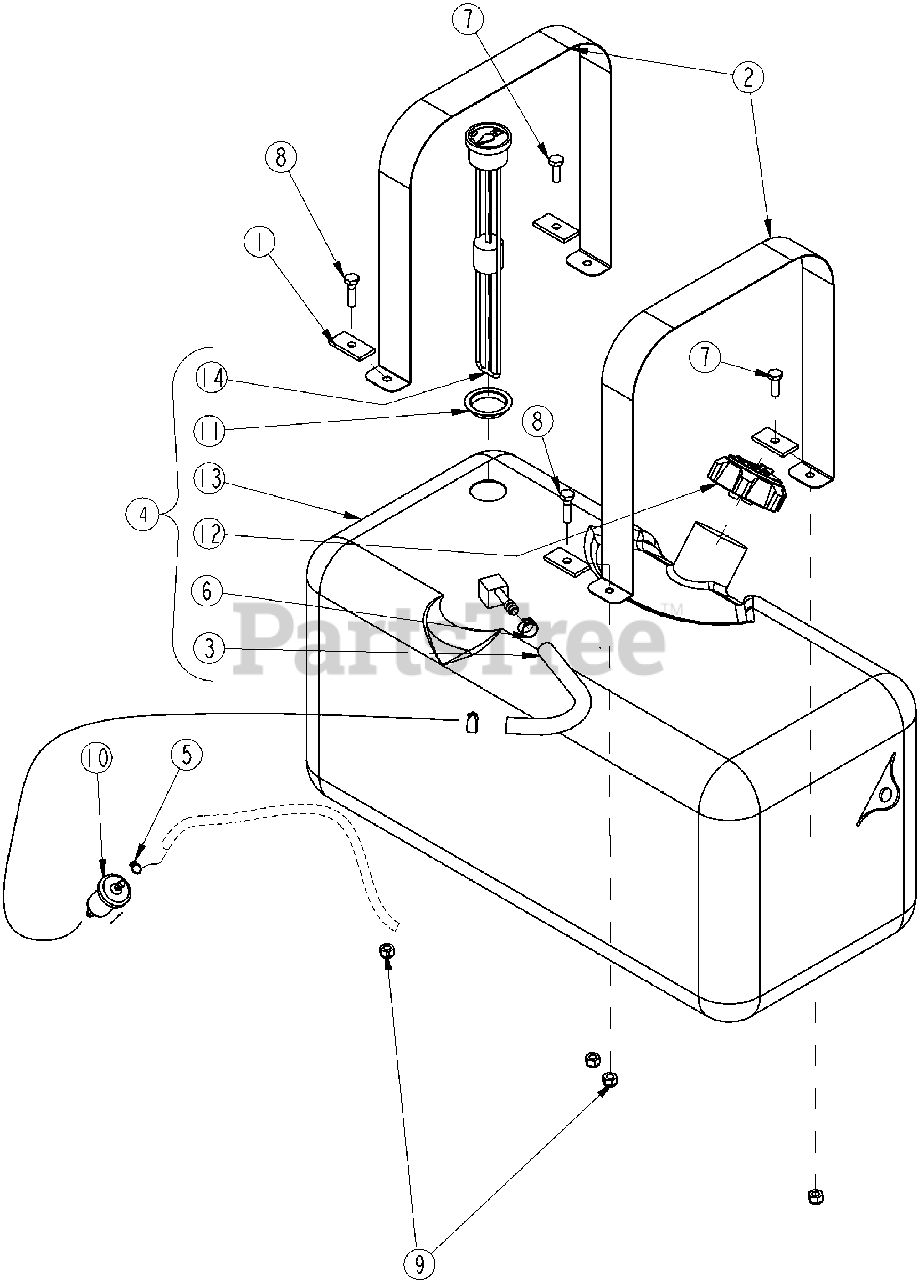

996120 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) > Parts Diagrams (39) > Fuel System Components

  • Title
700-017D

1

GAS TANK MOUNT SPACER

Part# 700-017D

Not available

700-175D

2

GAS TANK STRAP, WIDE

Part# 700-175D

Not available

700-213D

3

FUEL LINE 9" ST MODEL

Part# 700-213D

Not available

700-368S

4

ST FUEL TANK ASSY

Part# 700-368S

Not available

800-007C

5

PINCH CLAMP HONDA .32OD HOSE

Part# 800-007C

Not available

800-356C

6

CLAMP PINCH FOR .50 OD HOSE

Part# 800-356C

Not available

802-004C

7

HHCS 1/4-20X3/4 GR5

Part# 802-004C

Not available

802-005C

8

HHCS 1/4-20X1 GR5

Part# 802-005C

Not available

803-255C

9

NUT HEX NYLOCK 1/4-20

Part# 803-255C

OEM Warranty Repair Part for Gravely

Not available

831-035C

10

HONDA FUEL FILTER

Part# 831-035C

Not available

839-297C

11

GROMMET FOR FUEL GAUGE

Part# 839-297C

Not available

839-298C

12

FUEL CAP TALL

Part# 839-298C

Not available

839-301C

13

FUEL TANK 8 GALLON ST

Part# 839-301C

Not available

839-302C

14

FUEL GAUGE

Part# 839-302C

Not available
