996120 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999)

Treker Utility Vehicle, 4x2, Red

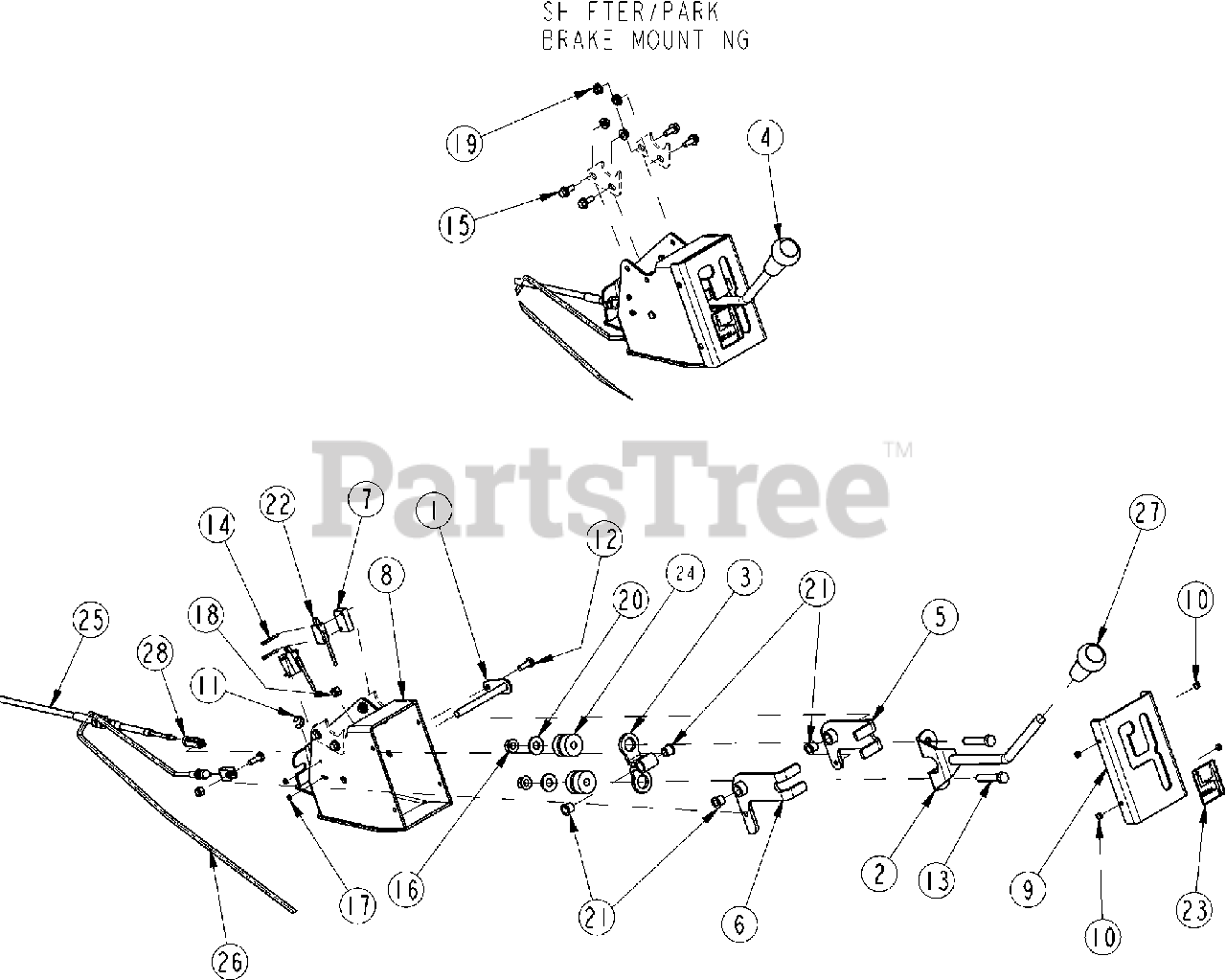

996120 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) > Parts Diagrams (39) > Parking Brake and Shifter Dash Mount

  • Title
700-255H

1

PIN WELDMENT

Part# 700-255H

Not available

700-271H

2

SHIFT LEVER WLDMNT

Part# 700-271H

Not available

700-272H

3

SHIFT LEVER LOWER WLDMNT

Part# 700-272H

Not available

700-273S

4

SHIFTER ASSEMBLY

Part# 700-273S

Not available

700-414H

5

WELDMENT, F-N-R LEVER

Part# 700-414H

Not available

700-415H

6

WELDMENT, PARK BRAKE LEVER

Part# 700-415H

Not available

700-419D

7

SPACER PLATE

Part# 700-419D

Not available

700-449H

8

WELDMENT, SHIFTER HOUSING

Part# 700-449H

Not available

700-450D

9

PLATE, SHIFTER GATE

Part# 700-450D

Not available

800-128C

10

RIVET POP 3/16 .375 SSD66BS

Part# 800-128C

Not available

800-351C

11

E RETAINING RING EXTERNAL

Part# 800-351C

Not available

802-004C

12

HHCS 1/4-20X3/4 GR5

Part# 802-004C

Not available

802-143C

13

HHCS 3/8-16X2 GR5

Part# 802-143C

Not available

802-788C

14

HSHCS #4-40X1

Part# 802-788C

Not available

802-811C

15

HFS 1/4-20X5/8 GR5 ZNYCR

Part# 802-811C

Not available

803-209C

16

NUT FLANGE LOCK 3/8-16 PLT

Part# 803-209C

Not available

803-211C

17

NUT HEX #4-40 PLT

Part# 803-211C

Not available

803-255C

18

NUT HEX NYLOCK 1/4-20

Part# 803-255C

OEM Warranty Repair Part for Gravely

Not available

803-293C

19

NUT HEX FLG TL 1/4-20 ZNYCR

Part# 803-293C

Not available

804-011C

20

WASHER FLAT 3/8 USS PLT

Part# 804-011C

Not available

817-019C

21

BUSHING 1/2ODX3/8IDX1/2 FLG

Part# 817-019C

Not available

833-330C

22

PARK BRAKE MICRO-SWITCH

Part# 833-330C

Not available

838-777C

23

DASH SHIFTER DECAL

Part# 838-777C

Not available

840-080C

24

MOUNT MOTOR H SYTLE

Part# 840-080C

Not available

840-270C

25

SHIFT CABLE (DASH)

Part# 840-270C

Note: (DASH)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $119.96

840-271C

26

PARK BRAKE CABLE 105.00" LG

Part# 840-271C

Not available

840-288C

27

DASH SHIFTER KNOB

Part# 840-288C

Not available

890-884C

28

YOKE 10-32 W/ LOCK

Part# 890-884C

Not available
