996122 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Bench Seat Parts Diagram

Treker Utility Vehicle, 4x2, Red

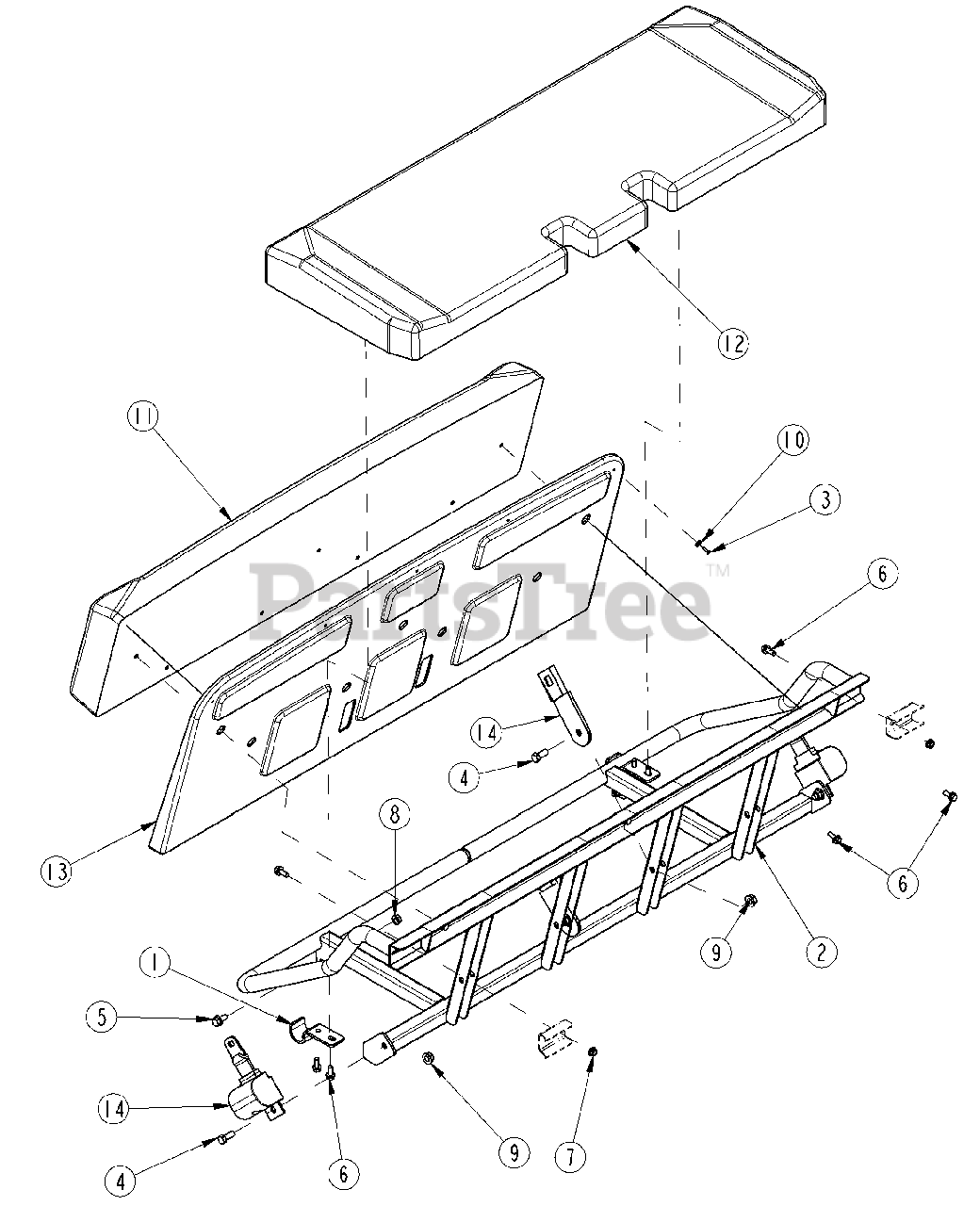

Bench Seat Parts Diagram

  • Title

1

Gravely T700-389D

SEAT PIVOT PLATE

$

$

Not available

2

Gravely T700-460H

BENCH SEAT WELDMENT

$

$

Not available

3

Gravely 06120226

SCREW, OVPH SM 8 X 3/4 SS

$

$

Not available

4

Gravely 05958700

BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

5

Gravely T802-185C

HFSS 3/8-16X3/4 LG

$

$

Not available

6

Gravely T802-387C

HFS 5/16-18X3/4 GR5

$

$

Not available

7

Gravely 803-177C

NUT HEX FLG TP LK 5/16-18ZNYCR

$

$

Not available

8

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06501900

NUT-LK-TOP .437-14 GR C PL
(Superseded to 06536400)

$3.49

$

In Stock, only 4 left!

0

10

Gravely T804-223C

WASHER, #8 FINISH CUP

$

$

Not available

11

Gravely T839-409C

BENCH SEAT BACK TAN (ST)

Note: (ST)

$

$

Not available

12

Gravely T840-317C

BENCH SEAT BACK CUSH, BLACK

$

$

Not available

13

Gravely T839-410C

BENCH SEAT BOTTOM TAN (ST)

Note: (ST)

$

$

Not available

14

Gravely T840-316C

BENCH SEAT BOTTOM CUSH, BLACK

$

$

Not available
