996122 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Cargo Box Components Parts Diagram

Treker Utility Vehicle, 4x2, Red

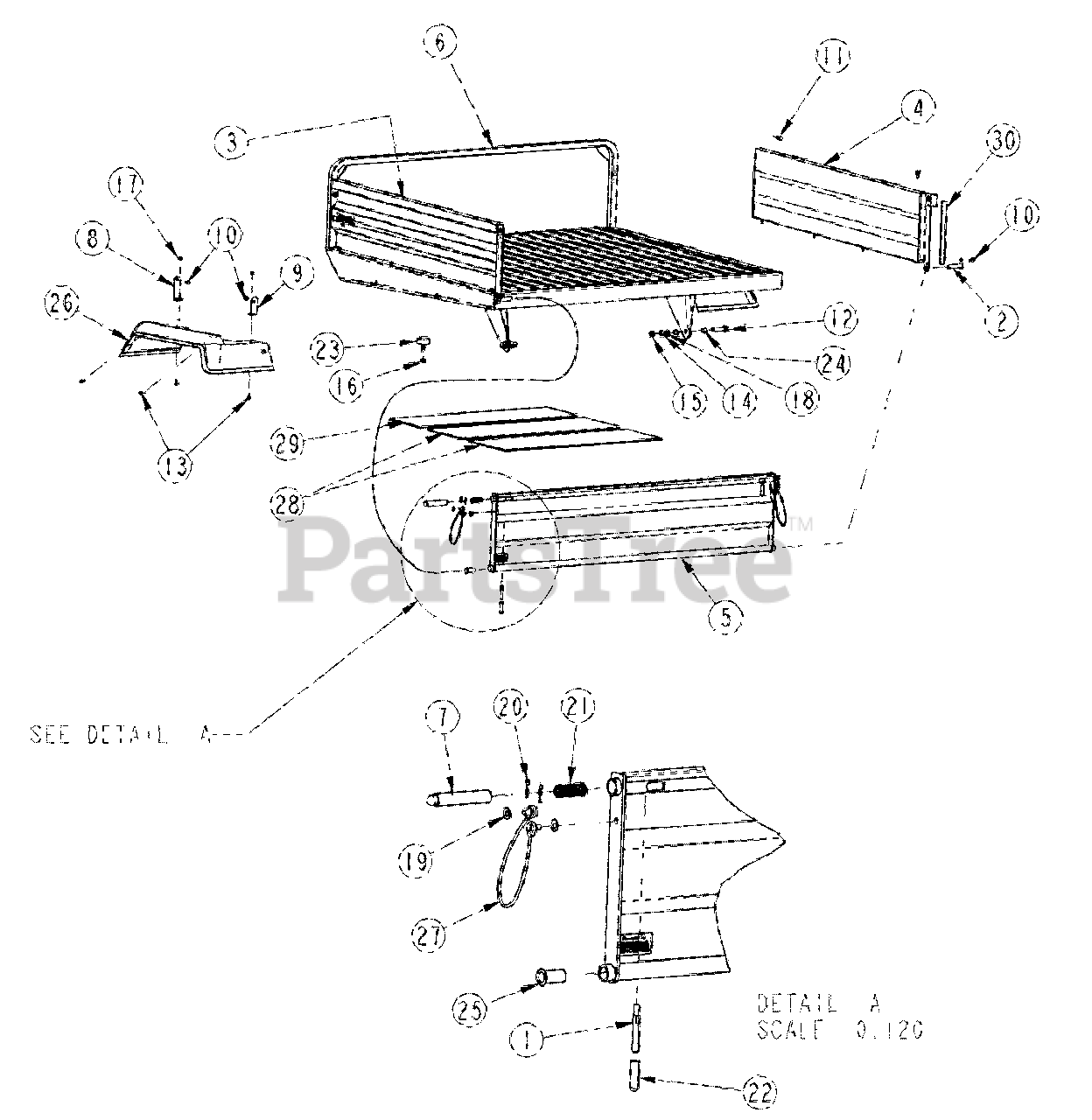

Cargo Box Components Parts Diagram

  • Title

1

Gravely T700-318D

TAILGATE LATCH HANDLE

$

$

Not available

2

Gravely T700-461H

WELDMENT, TAILGATE PIVOT

$

$

Not available

3

Gravely T700-479V

LH BED SIDE ASSY, RED 4220

$

$

Not available

Gravely T700-480V

LH BED SIDE ASSY, RED

$

$

Not available

Gravely T700-481V

LH BED SIDE ASSY, CAMO

$

$

Not available

4

Gravely T700-487V

RH BED SIDE ASSY, RED 4220

$

$

Not available

Gravely T700-488V

RH BED SIDE ASSY, RED

$

$

Not available

Gravely T700-489V

RH BED SIDE ASSY, CAMO

$

$

Not available

5

Gravely T700-493V

TAILGATE ASSEMBLY, RED

$

$

Not available

Gravely T700-495V

TAILGATE ASSEMBLY, CAMO 4420

$

$

Not available

6

Gravely T700-499V

BED BASE SUB-ASSY, BLACK

$

$

Not available

7

Gravely T700-573D

LATCH PIN

$

$

Not available

8

Gravely T700-588D

BRACKET, FENDER MOUNT FRONT

$

$

Not available

9

Gravely T700-590D

BRACKET, FENDER MOUNT REAR

$

$

Not available

10

Gravely 07430103

SCREW HEX SELF-TAP 1/4-20X 1/2

$

$

Not available

11

Gravely T802-387C

HFS 5/16-18X3/4 GR5

$

$

Not available

12

Gravely T802-797C

HFS 1/2-13X2 1/4 GR5 PLT

$

$

Not available

13

Gravely T802-811C

HFS 1/4-20X5/8 GR5 YLW

$

$

Not available

14

Gravely 803-019C

NUT LOCK 1/2-13 PLT

$

$

Not available

15

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

18

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 804-036C

WASHER FLAT 5/16 SAE PLT

$

$

Not available

20

Gravely 06730120

PIN HAIR COTTER .059W 15/16LG

$

$

Not available

21

Gravely T807-250C

SPRING COMP .734ODX2.06X.072W

$

$

Not available

22

Gravely T816-492C

RUBBER TAILGATE LATCH SLEEVE

$

$

Not available

23

Gravely T816-560C

RUB. STOP 2" W/ 3/8X1.25 STUD

$

$

Not available

24

Gravely T817-559C

BUSHING 1/2IDX5/8ODX1/2 FLANGE

$

$

Not available

25

Gravely T817-616C

BSHG FLG .63IDX.75ODX1.50L

$

$

Not available

26

Gravely T840-122C

FENDER, REAR UNIVERSAL

$

$

Not available

27

Gravely T840-289C

TRUCK TAILGATE CABLE

$

$

Not available

28

Gravely T840-318C

HEAT SHIELD / INSUL BED

$

$

Not available

29

Gravely T840-320C

HEAT SHIELD / INSUL BED FRONT

$

$

Not available

30

Gravely T990-235R

SPONGE RUBBER, 1/4X3/4 W/PSA

$

$

Not available

Gravely T816-556C

BUMPER, CYLINDRICAL

$

$

Not available
