996122 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Drive Belt Components Parts Diagram

Treker Utility Vehicle, 4x2, Red

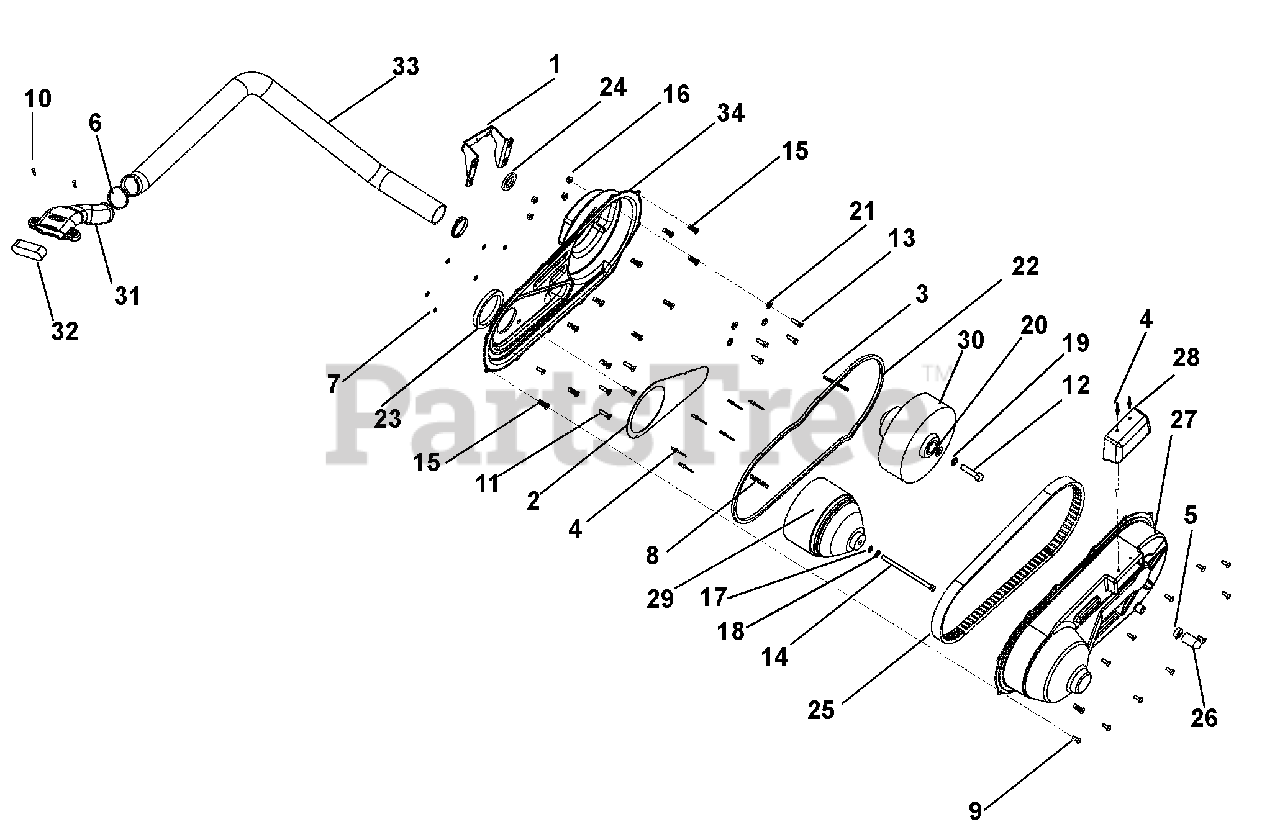

Drive Belt Components Parts Diagram

  • Title

1

Gravely T700-286D

BRACKET, CVT COVER TO TRANS.

$

$

Not available

2

Gravely 04070000

INLET DUCT, CVT

$

$

Not available

3

Gravely T710-097D

KEY 3/16 X 3

$

$

Not available

4

Gravely T800-219C

RIVET POP 3/16 .126-.250

$

$

Not available

5

Gravely T800-235C

SPRING CLAMP 1" OD HOSE

$

$

Not available

6

Gravely T800-259C

CLAMP,HOSE,WRM DRV,1.81X2.75

Note: (1.81-2.75)

$

$

Not available

7

Gravely T800-271C

RIVET POP WASHER 3/16

$

$

Not available

8

Gravely T800-350C

KEY .187 X .247 X 2.25 LG

$

$

Not available

9

Gravely T801-180C

TTHMS 1/4-20X3/4 ZNYCR

$

$

Not available

10

Gravely 07430104

SCR SELF TAP #10 X 3/4

$

$

Not available

11

Gravely T801-215C

SHFHCS 5/16-24 X 1 1/4, BLK

$

$

Not available

12

Gravely T802-320C

HHCS 1/2-20X2 GR5

$

$

Not available

13

Gravely 802-738C

BOLT, HEX 5/16-18 X 1 GR5 YWZC

$

$

Not available

14

Gravely T802-823C

HHCS 3/8-24X6 1/2 GR5 PLT

$

$

Not available

15

Gravely T803-131C

INSERT, 1/4-20 ARS4-420-280

$

$

Not available

16

Gravely 803-177C

NUT, TOP LOCK FLANGE .31-18

$

$

Not available

17

Gravely 804-012C

WASHER FLAT 3/8 SAE PLT

$

$

Not available

18

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

21

Gravely T804-135C

WASHER FLAT 5/16 NEOPRENE PLT

$

$

Not available

22

Gravely T816-469C

SEAL, MAIN TRUCK CVT HOUSING

$

$

Not available

23

Gravely 04062600

GASKET, CVT, FOAM

$

$

Not available

24

Gravely T816-471C

SEAL, CVT TO TRANSAXLE

$

$

Not available

25

Gravely T816-546C

BELT, CVT -LP3

$

$

Not available

26

Gravely T817-621C

CAP, DRAIN 7/8 OD PORT

$

$

Not available

27

Gravely T817-711C

ENCLOSURE, CVT OUTER

$

$

Not available

28

Gravely T817-712C

OUTLET DIVERTER, CVT

$

$

Not available

29

Gravely T826-523C

DRIVER, POWERBLOC - LP3

$

$

Not available

30

Gravely T826-525C

DRIVEN, CVTECH POWERBLOC-LP3

$

$

Not available

31

Gravely T840-266C

SNORKEL AIR INTAKE

$

$

Not available

32

Gravely T840-268C

FILTER, AIR INTAKE

$

$

Not available

33

Gravely T840-323C

HOSE, CVT AIR INTAKE

$

$

Not available

34

Gravely T817-710C

ENCLOSURE, CVT INNER

$

$

Not available
