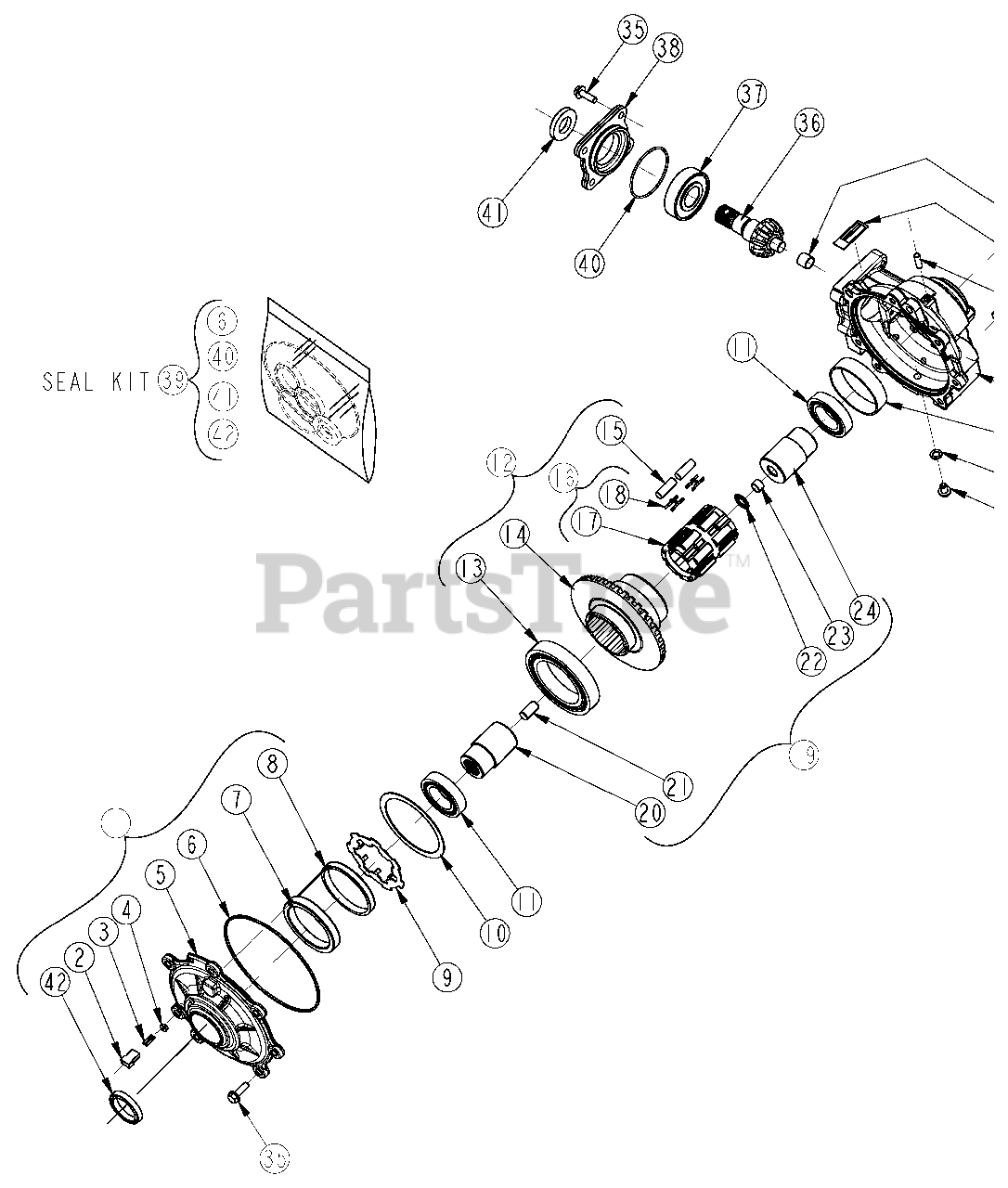

996122 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Front Differential Components Parts Diagram

Treker Utility Vehicle, 4x2, Red

Front Differential Components Parts Diagram

  • Title

Gravely T826-398C

FRONT DIFFERENTIAL W/ELE CLTCH

$

$

Not available

2

MATE-N-LOK- HOUSING Sold with #1 kit

$

$

Not available

3

MATE-N-LOK PIN Sold with #1 kit

$

$

Not available

4

GROMMET, OUTPUT COVER Sold with #1 kit

$

$

Not available

5

COVER PLATE, OUTPUT-MACHINED Sold with #1 kit

$

$

Not available

6

O-RING, OUTPUT-164S (SQ. RING) Sold with #1 kit & #39 kit

Note: (SQ. RING) Sold with #1 kit & #39 kit

$

$

Not available

7

COIL POCKET INSERT Sold with #1 kit

$

$

Not available

8

COIL W/PRESS FIT BOBBIN Sold with #1 kit

$

$

Not available

9

Gravely T6203-59-032-B

ARMATURE PLATE

$

$

Not available

10

Gravely T6203-26-020-A

SHIM, ARMATURE PLATE

$

$

Not available

11

Gravely T1215-02-038-T

6008-C3DEP.GRVE.ROLLER BEARING

$

$

Not available

12

Gravely T6203-01-166

CLUTCH ASSEMBLY

$

$

Not available

13

Gravely T1215-02-141-T

6015-C3 DP.GRV RLLR BAL BEARNG

$

$

Not available

14

Gravely T6203-13-124-D

CLTCH.HSG./RNG GR.,42T 6.75DP

$

$

Not available

15

Gravely T6203-29-010-0

ROLL KIT

$

$

Not available

16

Gravely T6203-20-072

ROLL CAGE ASSEMBLY

$

$

Not available

17

ROLL CAGE, PLASTIC-MACHINED Sold separately & with #16 kit

$

$

Not available

18

Gravely T6203-35-024-0

SPRING KIT,H-CLIP .008 THK

$

$

Not available

19

Gravely T6203-27-017-B

RACE/OUTPUT HUB ASSEMBLY

$

$

Not available

20

RACE/OUTPUT HUB, FEMALE Sold with #19 kit

$

$

Not available

21

Gravely PAP0806

PERMIGLIDE BUSHING Sold with #19 kit

$

$

Not available

22

Gravely T1242-00-009-T

TC815 NDLE.RLLER.THRST BEARING

$

$

Not available

23

Gravely T0430-01-002-T

1/2 DIA X 1 LG. DOWEL PIN

$

$

Not available

24

RACE/OUTPUT HUB, MALE Sold with #19 kit

$

$

Not available

25

Gravely T6203-13-165

GEARCASE ASSEMBLY

$

$

Not available

26

Gravely MB1615

DU BUSHING Sold with #25 kit

$

$

Not available

27

LABEL, BAR CODE Sold with #25 kit

$

$

Not available

28

TUBE, VENT 1/2 HOSE Sold with #25 kit

$

$

Not available

29

Gravely T0518-03-009-T

PLUG OIL FILL 3/4-16 HOLLOW HD

$

$

Not available

OIL FILL 3/4-16 HOLLOW HD) Tighten to 10 ft-lbs.

Note: OIL FILL 3/4-16 HOLLOW HD) Tighten to 10 ft-lbs.

$

$

Not available

30

GEARCASE, LH-MACHINED Sold with #25 kit

$

$

Not available

31

BUSHNG, SELF LUBRICATING 80X85X20 Sold with #25 kit

$

$

Not available

32

Gravely T6203-95-001-0

DRAIN PLUG ASSEMBLY

$

$

Not available

33

WASHER, .625X.06, NYLON 6/6 Sold with #32 kit

$

$

Not available

34

PLUG, OIL DRAIN, 3/8-16HH FLANGE W/MAG. TIP Sold with #32 kit; Torque item #34

$

$

Not available

(PLG,OIL DRAIN,3/8-16HH FLNGE W/M) Tighten to 9 ft-lbs.

Note: (PLG,OIL DRAIN,3/8-16HH FLNGE W/M) Tighten to 9 ft-lbs.

$

$

Not available

35

Gravely T6203-93-001-0

BOLT KIT

Note: (5/16" x 1" Hex Head Bolts) Tighten to17 ft-bs

$

$

Not available

36

Gravely T6203-47-024-B

PINION SHAFT HILLIARD

$

$

Not available

37

Gravely T1215-02-154-T

6306-03-C3 DP GRV RLLR BL BRG

$

$

Not available

38

Gravely T6203-12-064-B

COVER PLATE,INPUT-MACHINED

$

$

Not available

39

Gravely T6203-56-001-0

MINOR REPAIR KIT

$

$

Not available

40

0-RING, INPUT, 148S Sold with #39 kit

$

$

Not available

41

Gravely 25X47X8

TRIPLE LIP OIL SEAL Sold with #1 kit & #39 kit

$

$

Not available

42

Gravely 40X52X7TC

OIL SEAL, OUTPUT Sold with #39 kit

$

$

Not available
