996122 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Lower Control Arm Parts Diagram

Treker Utility Vehicle, 4x2, Red

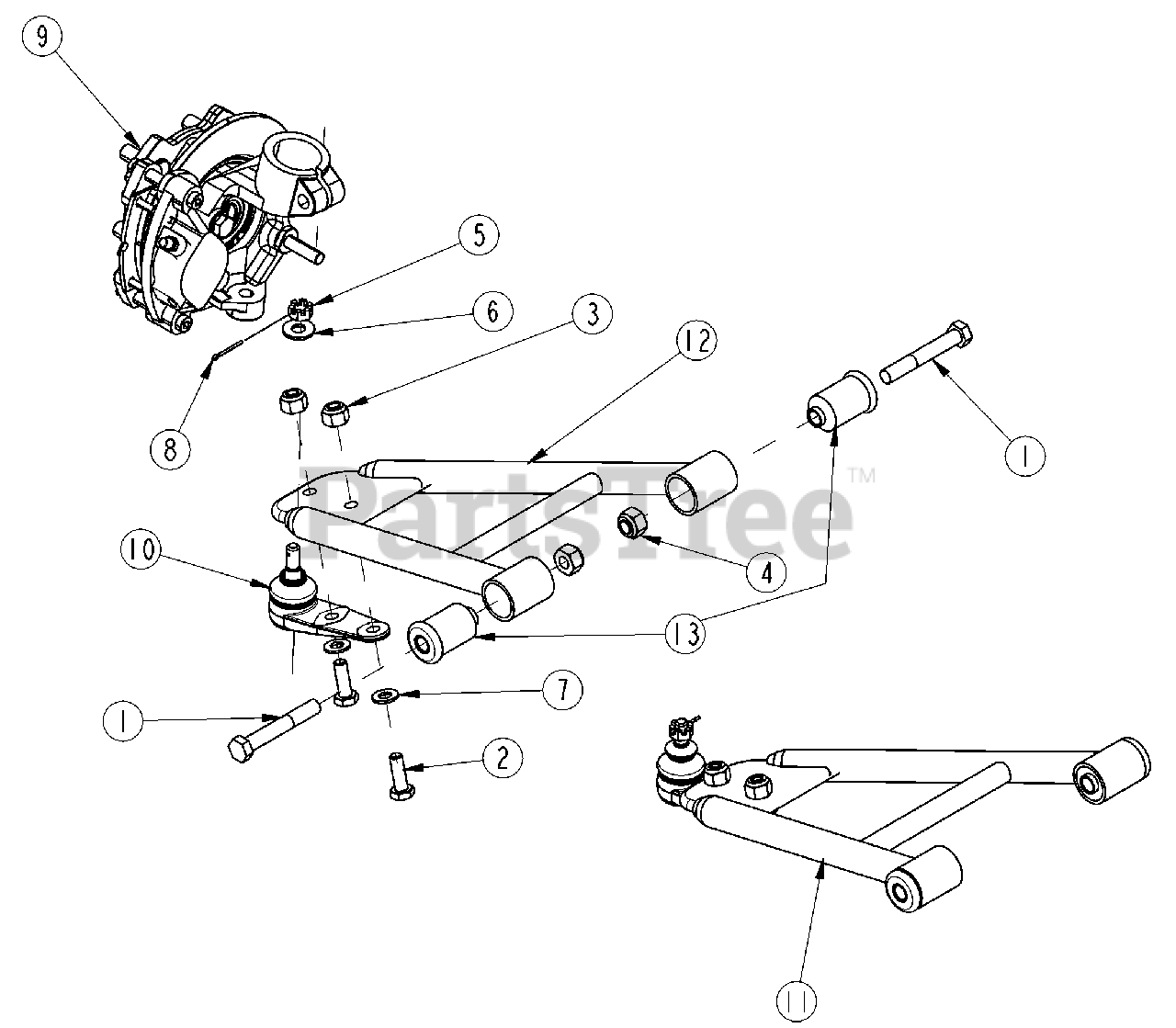

Lower Control Arm Parts Diagram

  • Title

1

Gravely T802-486C

HHCS M12X1.75X80 GR8.8 PLT

$

$

Not available

2

Gravely 05929100

BLT-HEX M10 X 1.5X30 YWZC GR5

$

$

Not available

3

Gravely T803-280C

NUT HEX NYLOCK M10X1.5 PLT

$

$

Not available

4

Gravely T803-281C

NUT HEX NYLOCK M12X1.75 PLT

$

$

Not available

5

Gravely 06520001

NUT-HEX-SLOTTED M10-1.25 YWZC

$

$

Not available

6

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06700117

COTTER PIN 3/32 X 1-1/4

$

$

Not available

9

Gravely T815-143C

RH DISC BRAKE ASM 172MM W/JNT

$

$

Not available

9

Gravely T815-144C

LH DISC BRAKE ASM 172MM W/JNT

$

$

Not available

10

Gravely T840-137C

BALL JOINT BOLT ON SIR

$

$

Not available

11

Gravely 04067200

CONTROL ARM ASM, LH

$

$

Not available

11

Gravely 04067100

CONTROL ARM ASM, RH

$

$

Not available

12

Gravely 04066000

CONTROL ARM WLDT, LH

$

$

Not available

13

Gravely 04067000

CONTROL ARM WLDT, RH

$

$

Not available
