996122 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Parking Brake and Shifter Dash Mount Parts Diagram

Treker Utility Vehicle, 4x2, Red

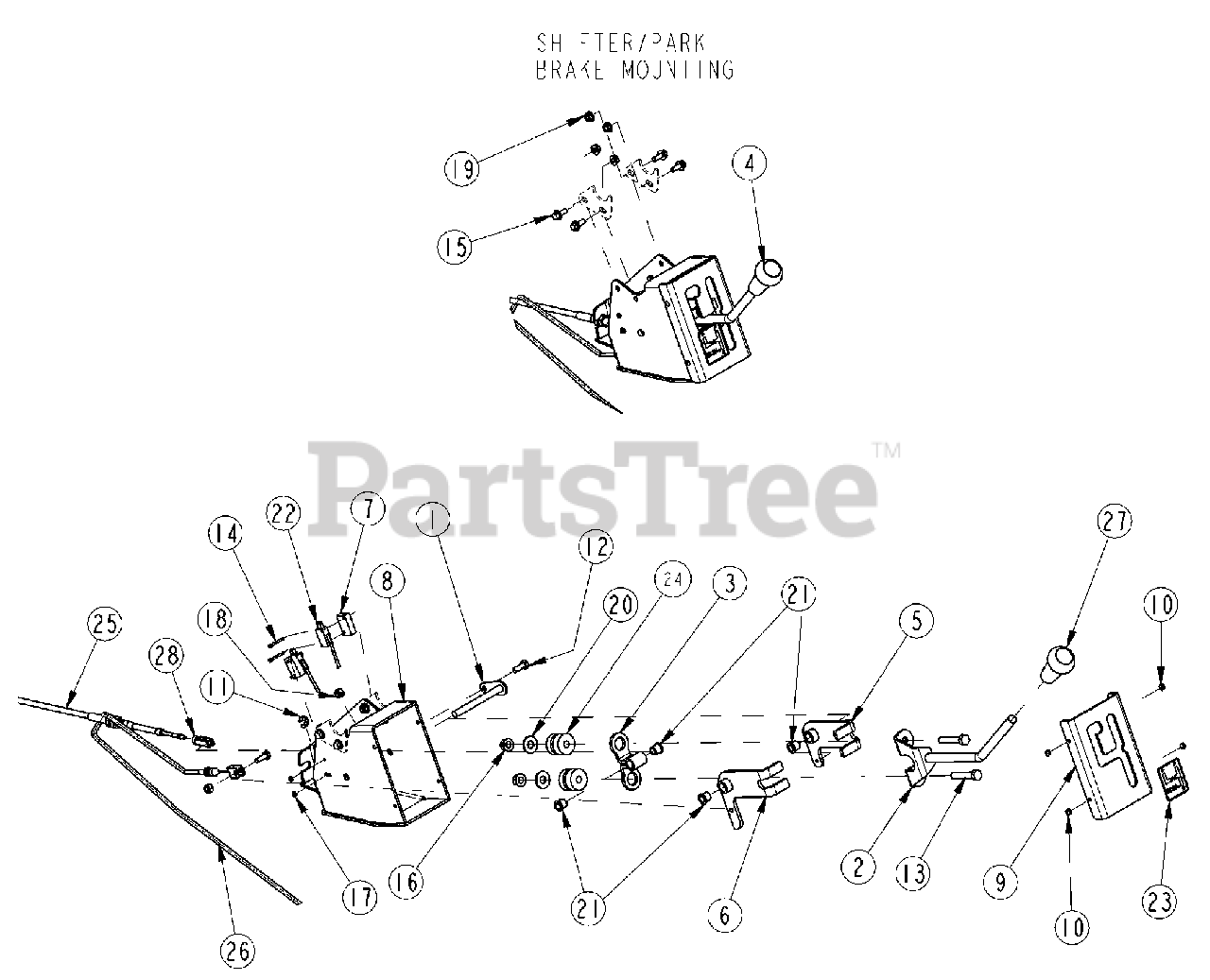

Parking Brake and Shifter Dash Mount Parts Diagram

  • Title

1

Gravely T700-255H

PIN WELDMENT

$

$

Not available

2

Gravely T700-271H

SHIFT LEVER WLDMNT

$

$

Not available

3

Gravely T700-272H

SHIFT LEVER LOWER WLDMNT

$

$

Not available

4

Gravely T700-273S

SHIFTER ASSEMBLY

$

$

Not available

5

Gravely T700-414H

WELDMENT, F-N-R LEVER

$

$

Not available

6

Gravely T700-415H

WELDMENT, PARK BRAKE LEVER

$

$

Not available

7

Gravely T700-419D

SPACER PLATE

$

$

Not available

8

Gravely T700-449H

WELDMENT, SHIFTER HOUSING

$

$

Not available

9

Gravely T700-450D

PLATE, SHIFTER GATE

$

$

Not available

10

Gravely T800-128C

RIVET POP 3/16 .375 SSD66BS

$

$

Not available

11

Gravely 05700191

3/8" E RETAINING RING EXTERNAL

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

13

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

14

Gravely T802-788C

HSHCS #4-40X1

$

$

Not available

15

Gravely T802-811C

HFS 1/4-20X5/8 GR5 YLW

$

$

Not available

16

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06545700

NUT-HEX 4-40 YWZC GR5

$

$

Not available

18

Gravely 803-255C

NUT HEX NYLOCK 1/4-20

$

$

Not available

19

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

20

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

21

Gravely T817-019C

BUSHING 1/2ODX3/8IDX1/2 FLG

$

$

Not available

22

Gravely T833-330C

PARK BRAKE MICRO-SWITCH

$

$

Not available

23

Gravely T838-777C

DASH SHIFTER DECAL

$

$

Not available

24

Gravely T840-080C

MOUNT MOTOR H SYTLE

$

$

Not available

25

Gravely T840-270C

SHIFT CABLE (DASH)

Note: (DASH)

$

$

Not available

26

Gravely T840-271C

PARK BRAKE CABLE 106.50" LG

$

$

Not available

27

Gravely T840-288C

DASH SHIFTER KNOB

$

$

Not available

28

Gravely T890-884C

YOKE 10-32 W/ LOCK

$

$

Not available
