996122 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Shock Front Parts Diagram

Treker Utility Vehicle, 4x2, Red

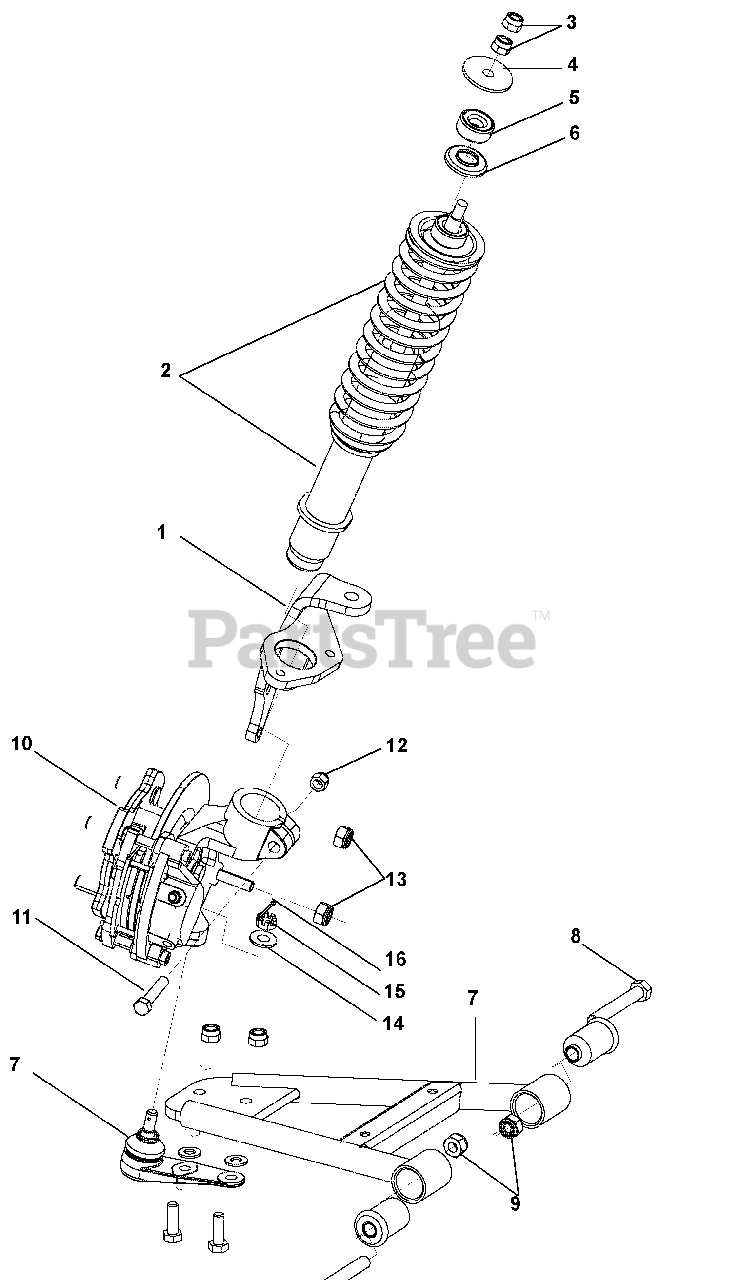

Shock Front Parts Diagram

  • Title

1

Gravely T700-055H

STEERING BRACKET RIGHT

$

$

Not available

Gravely T700-054H

STEERING BRACKET LEFT

$

$

Not available

2

Gravely T840-100C

STRUT/COIL SPRING

$

$

Not available

3

Gravely T803-344C

NUT HEX JAM M10X1,25 6MTHK YLW

$

$

Not available

4

Gravely T804-220C

WASHER FLT 1.92ODX.413IDX.118T

$

$

Not available

5

Gravely T816-531C

GROMMET, RUBBER MOUNT

$

$

Not available

6

Gravely T840-314C

WASHER, STRUT MOUNT

$

$

Not available

7

Gravely 04067200

CONTROL ARM ASM, LH

$

$

Not available

8

Gravely T802-486C

HHCS M12X1.75X80 GR8.8 PLT

$

$

Not available

9

Gravely T803-281C

NUT HEX NYLOCK M12X1.75 PLT

$

$

Not available

10

Gravely T815-143C

RH DISC BRAKE ASM 172MM W/JNT

$

$

Not available

11

Gravely 05963100

BLT-HEX .38-16X2.00 GR8 YWZC
(Superseded to 05901810)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 803-078C

NUT LOCK 3/8-16 NYLON INSERT

$

$

Not available

13

Gravely T803-280C

NUT HEX NYLOCK M10X1.5 PLT

$

$

Not available

14

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06520001

NUT-HEX-SLOTTED M10-1.25 YWZC

$

$

Not available

16

Gravely 06707000

PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

In Stock, Qty 11

0
