996122 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Shock Rear Parts Diagram

Treker Utility Vehicle, 4x2, Red

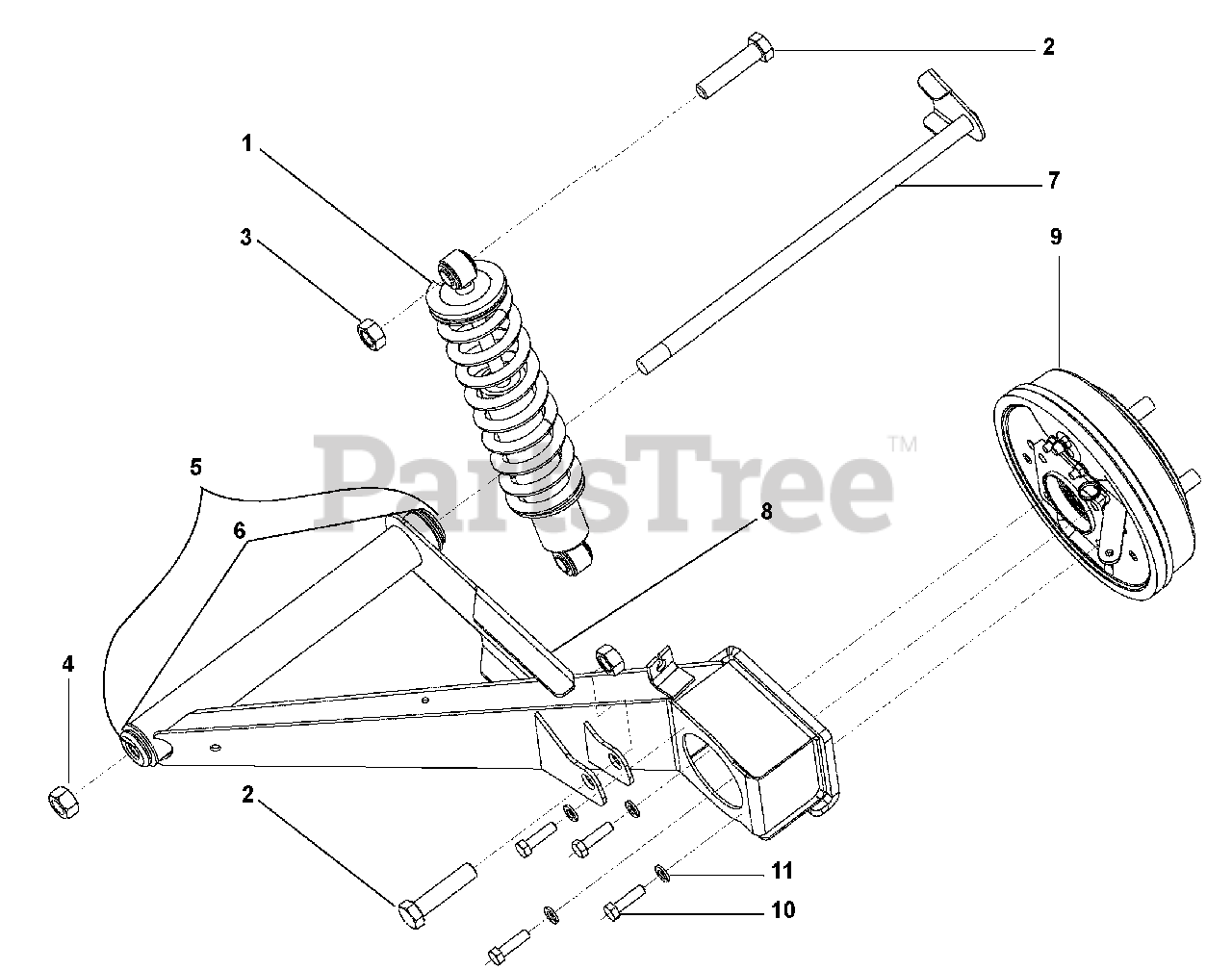

Shock Rear Parts Diagram

  • Title

1

840-101C

SHOCK COIL REAR TRUCK

$

$

Not available

2

Gravely 802-751C

HHCS M14X2.00X60 GR8.8

$

$

Not available

3

Gravely 803-334C

NUT HEX NYLOCK M14X2.00

$

$

Currently unavailable

4

803-319C

NUT HEX TOP LOCK 9/16-12 YLW

$

$

Not available

5

700-262H

TRAILING ARM RH WELDMENT

$

$

Not available

6

817-517C

BUSHING IDLER ARM RUBBER

$

$

Not available

7

700-371H

CENTER PIVOT TUBE WELDMENT

$

$

Not available

8

700-422H

TRAILING ARM PIVOT BOLT WELDMENT

$

$

Not available

9

815-145C

RH DRUM ASM 18 OMM 4 ON 4" BC

$

$

Not available

10

802-731C

HHCS M8 X 1.25 X 30 GR 10.9 YLW PLT

$

$

Not available

11

804-157C

WASHER SPRING LOCK M8 PLT

$

$

Not available
