996122 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Shock Rear Parts Diagram
Treker Utility Vehicle, 4x2, Red

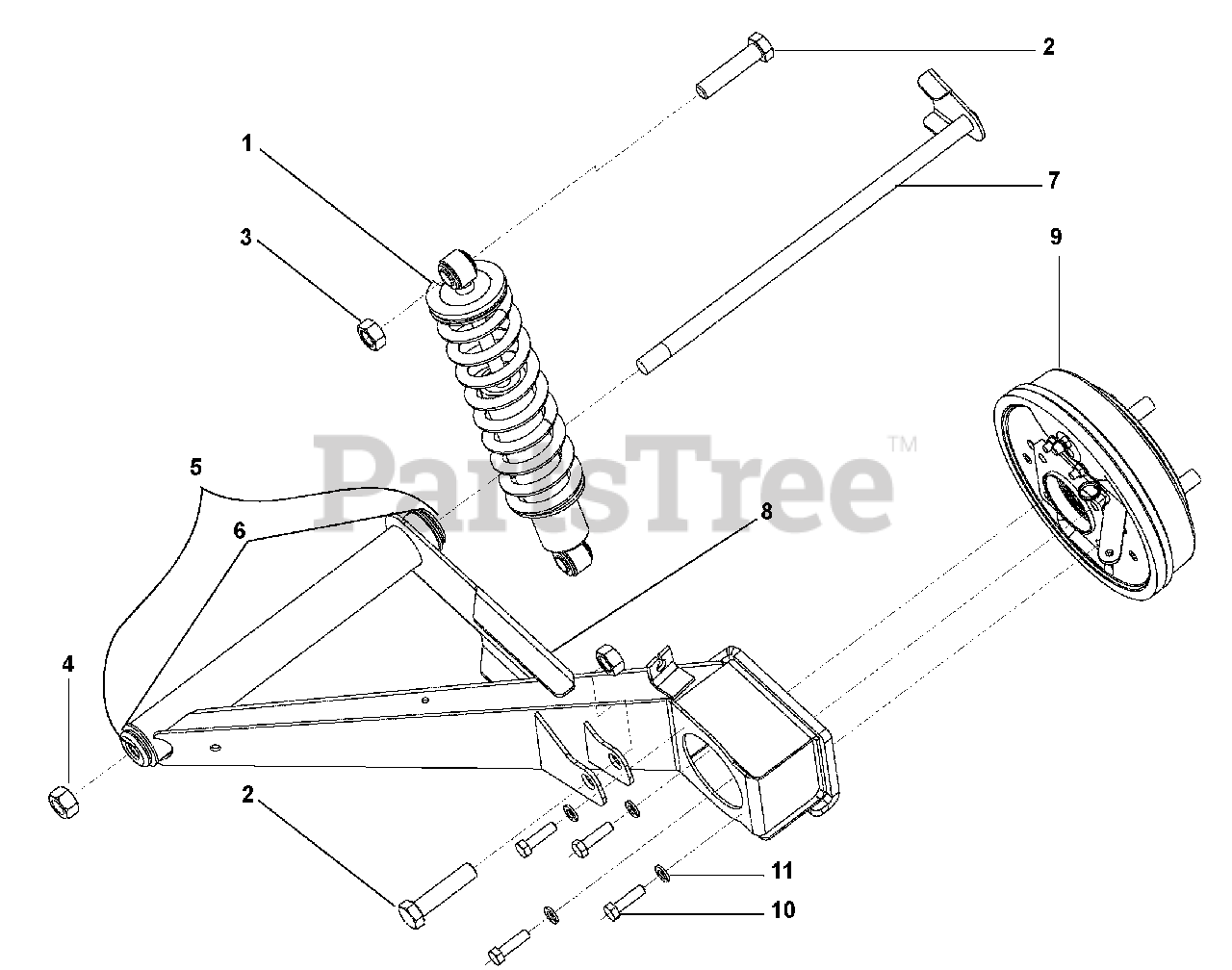

Shock Rear Parts Diagram
Gravely T840-101C
SHOCK COIL REAR TRUCK
$
$
Not available
Gravely T802-751C
HHCS M14X2.00X60 GR8.8
$
$
Not available
Gravely T803-334C
NUT HEX NYLOCK M14X2.00
$
$
Not available
Gravely 06549100
NUT-LK-TOP .563-12 GR5 YWZC
$
$
Not available
Gravely T700-262H
TRAILING ARM RH WELDMENT
$
$
Not available
Gravely T817-517C
BUSHING IDLER ARM RUBBER
$
$
Not available
Gravely T700-371H
CENTER PIVOT TUBE WELDMENT
$
$
Not available
Gravely T700-422H
TRAILING ARM PIVOT BOLT WLDMNT
$
$
Not available
Gravely T815-145C
RH DRUM ASM 180MM 4 ON 4" BC
$
$
Not available
Gravely T802-731C
HHCS M8X1.25X30 GR10.9 YLW PLT
$
$
Not available
Gravely 06318200
WSHR-LK M8 YWZC
$0.99
$
Usually ships in 4-12 days
