996122 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Trailing Arm Parts Diagram

Treker Utility Vehicle, 4x2, Red

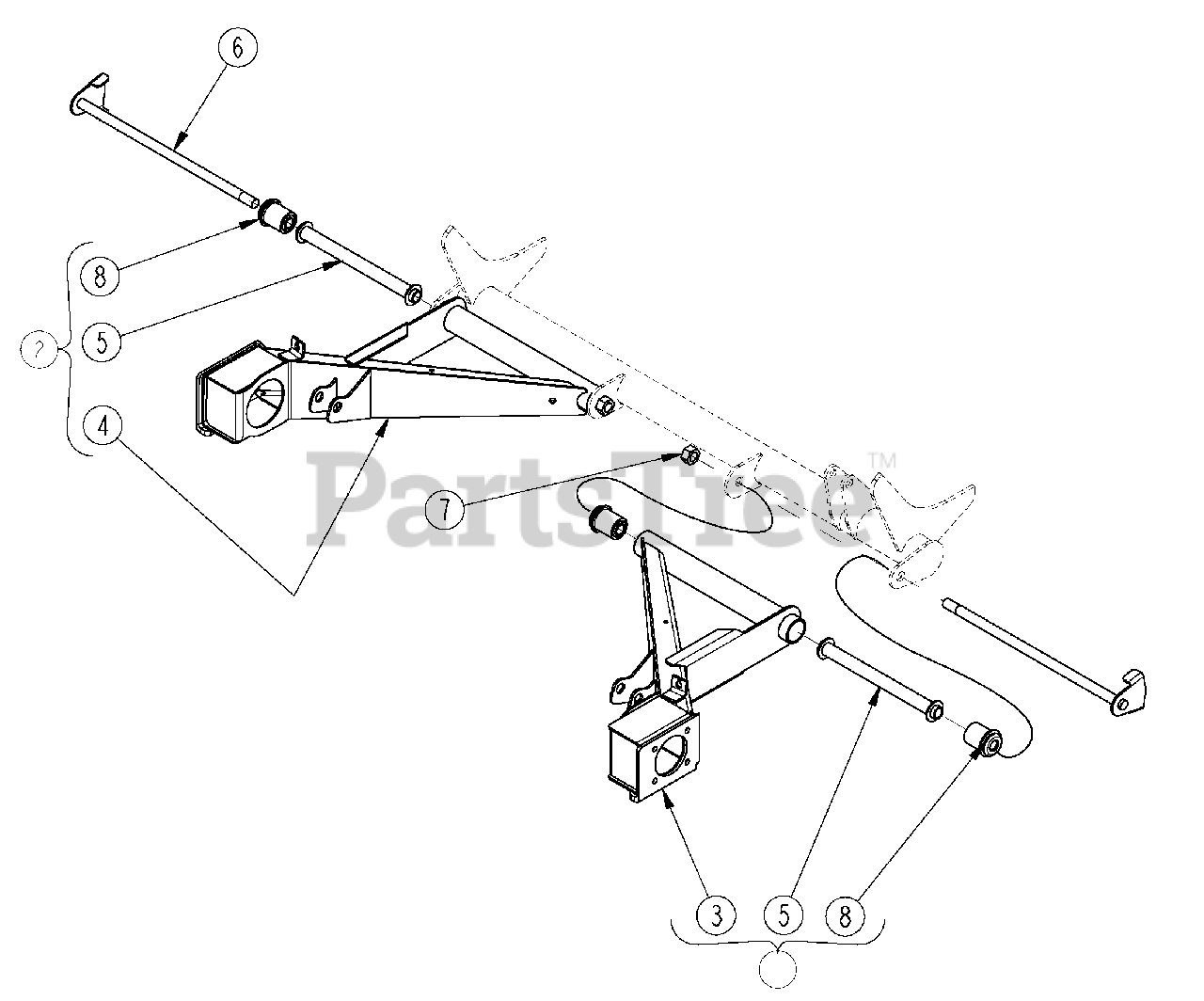

Trailing Arm Parts Diagram

  • Title

1

Gravely T700-256S

TRAILING ARM RH ASSY

$

$

Not available

2

Gravely T700-257S

TRAILING ARM LH ASSY

$

$

Not available

3

Gravely T700-262H

TRAILING ARM RH WELDMENT

$

$

Not available

4

Gravely T700-263H

TRAILING ARM LH WELDMENT

$

$

Not available

5

Gravely T700-371H

CENTER PIVOT TUBE WELDMENT

$

$

Not available

6

Gravely T700-422H

TRAILING ARM PIVOT BOLT WLDMNT

$

$

Not available

7

Gravely 06549100

NUT-LK-TOP .563-12 GR5 YWZC

$

$

Not available

8

Gravely T817-517C

BUSHING IDLER ARM RUBBER

$

$

Not available
