996122 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Transaxle Rear Components Parts Diagram

Treker Utility Vehicle, 4x2, Red

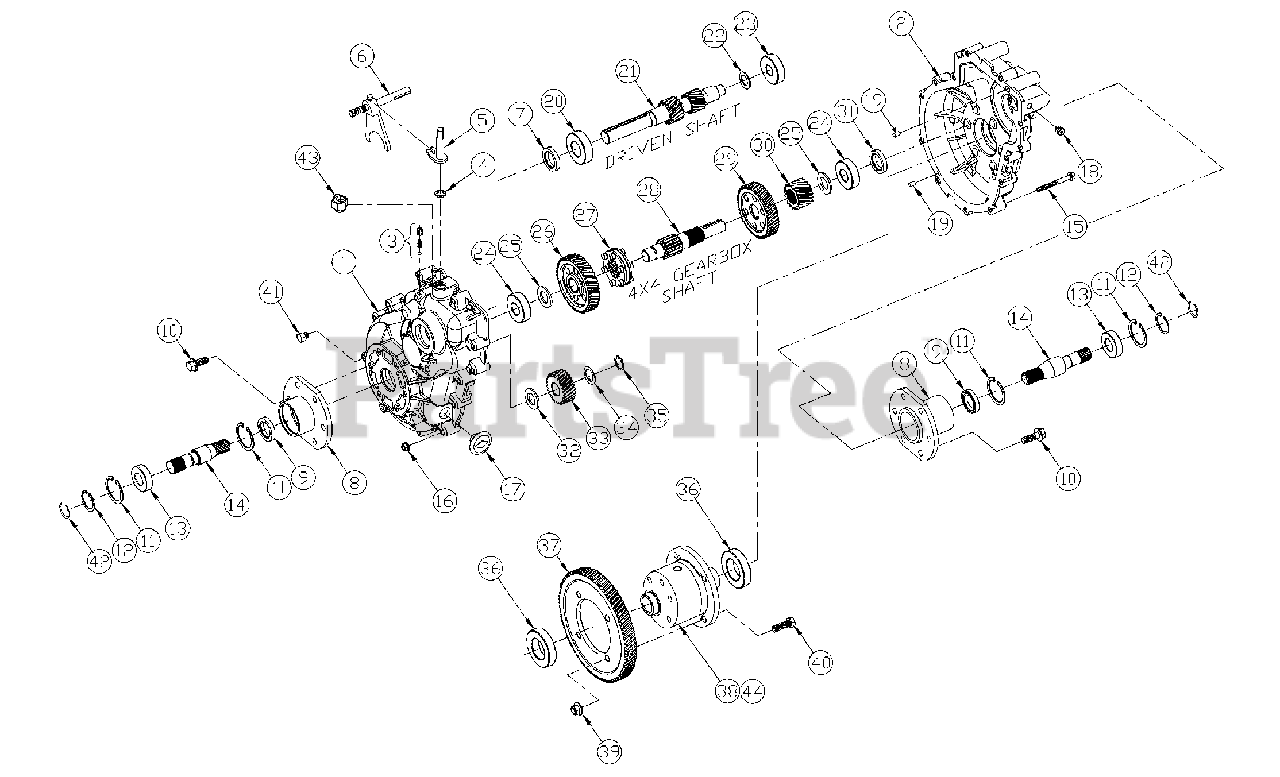

Transaxle Rear Components Parts Diagram

  • Title

Gravely T826-454C

TRANSAXLE, DANA

$

$

Not available

1

Gravely T012CH291-2X

DANA HOUSING AND SHAFT ASSBLY

$

$

Not available

2

Gravely T012CH289

DANA HOUSING-AXLE FIN

$

$

Not available

3

Gravely T012LK133

DANA KIT, DETENT

$

$

Not available

4

Gravely T012HH122

DANA SEAL - OIL

$

$

Not available

5

Gravely T012GV164-X

DANA ACTUATOR ASSY

$

$

Not available

6

Gravely T012SV118-X

DANA SHIFT ROD SUB-ASSY

$

$

Not available

7

Gravely T012HH128

DANA SEAL - OIL

$

$

Not available

8

Gravely T012TA378

REAR TUBE ASSY

$

$

Not available

9

Gravely T012HH107

SEAL - OIL

$

$

Not available

10

Gravely T026HM107

DANA SCREW - FLG HEAD

$

$

Not available

11

Gravely T840293

DANA RING, RETAINING

$

$

Not available

12

Gravely T012HR133

RING - RETAINER

$

$

Not available

13

Gravely T012HD106

BEARING - BALL SINGLE

$

$

Not available

14

Gravely T012SR172

SHAFT - AXLE, FIN

$

$

Not available

15

Gravely T012HM110-1

DANA SCREW - FLG HEAD

$

$

Not available

16

Gravely T012HN120

DANA NUT - LOCK

$

$

Not available

17

Gravely 041356

PAD,BATTERY
(Superseded to 07525900)

$

$

Not available

18

Gravely T012HN140

DANA VENT PLUG

$

$

Not available

19

Gravely T012HP120

DANA PIN - DOWEL

$

$

Not available

20

Gravely T585965

DANA BEARING 6205

$

$

Not available

21

Gravely T012GS307

DANA SHAFT - INPUT FIN

$

$

Not available

22

Gravely T012LK134

DANA KIT, SHIM

$

$

Not available

23

Gravely T012HD111

DANA BEARING -6303 BALL SINGLE

$

$

Not available

24

Gravely T012HD129

DANA BEARING -6204 BALL SINGLE

$

$

Not available

25

Gravely T012HS121

DANA SPACER - FLAT

$

$

Not available

26

Gravely T012GS202-X

DANA GEAR ASSY - FORWARD

$

$

Not available

27

Gravely T012GS302

DANA GEAR - CLUTCH

$

$

Not available

28

Gravely T012GS337

DANA SHAFT - INTERMEDIATE FIN

$

$

Not available

29

Gravely T012GS204-X

DANA GEAR ASSY - REVERSE

$

$

Not available

30

Gravely T012GS215

DANA GEAR - HELICAL FIN

$

$

Not available

31

Gravely T012HH140

DANA SEAL - OIL

$

$

Not available

32

Gravely T012HS125

DANA WASHER - THRUST

$

$

Not available

33

Gravely T012GS207-X

DANA GEAR ASSY - IDLER

$

$

Not available

34

Gravely T012HS126

DANA WASHER - THRUST

$

$

Not available

35

Gravely T012HR128

DANA RING - SNAP

$

$

Not available

36

Gravely T585994

DANA BEARING 6007

$

$

Not available

37

Gravely T012GS216

DANA GEAR - HELICAL FIN

$

$

Not available

38

Gravely T826-458C

DIFFERENTIAL, AUTO-LOCK

$

$

Not available

39

Gravely T012HN138

RPBY 35704

$

$

Not available

40

Gravely T012HM129

DANA BOLT - HEX

$

$

Not available

41

Gravely T012HG145

DANA DRAIN PLUG

$

$

Not available

42

Gravely T012HR132

RETAINER - SHAFT, AXLE

$

$

Not available

43

Gravely T5803

SWITCH, NEUTRAL, DANA GBOX

$

$

Not available

44

Gravely T700-518A

AUTO-LOK KIT

$

$

Not available
