996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Bench Seat Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

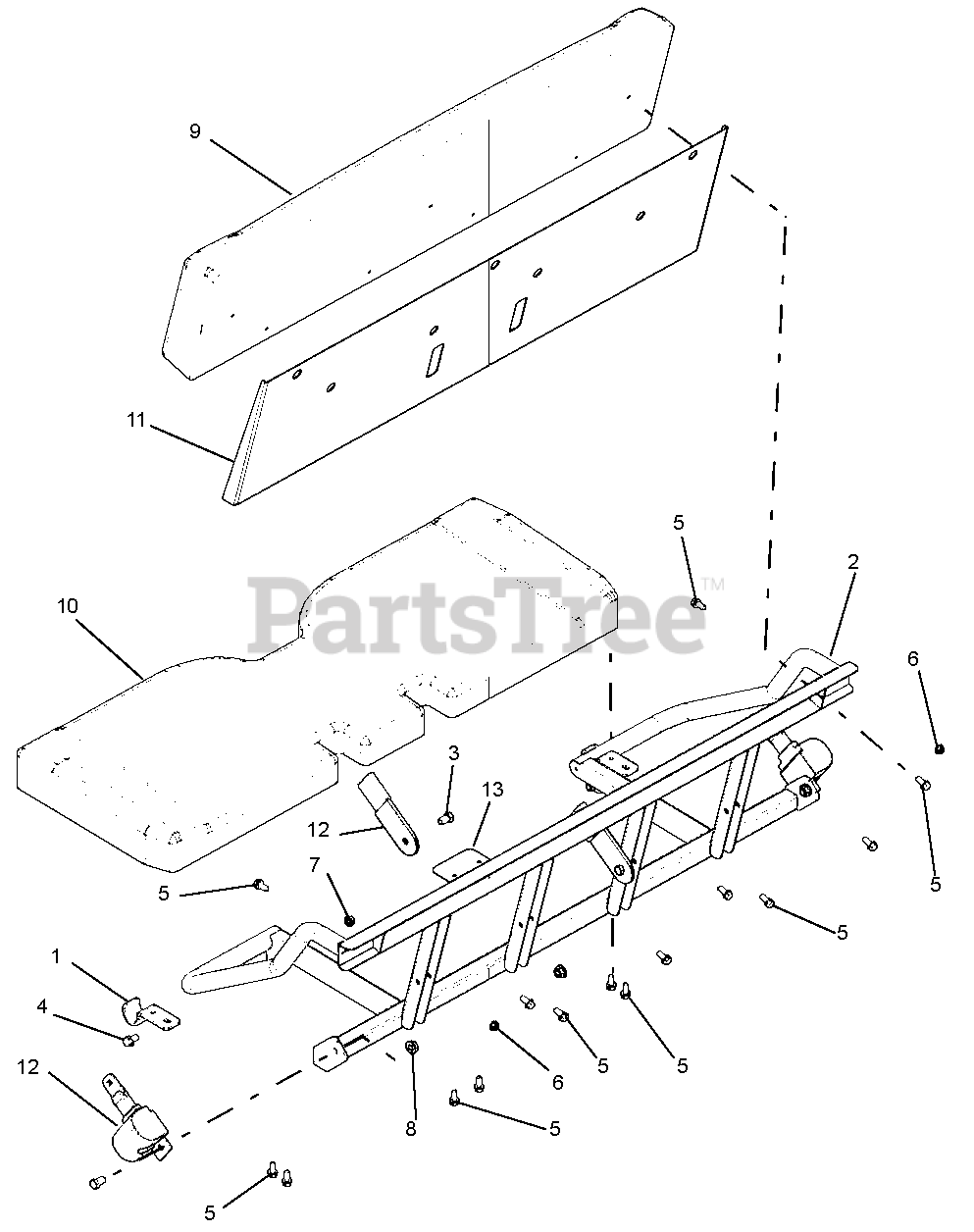

Bench Seat Parts Diagram

  • Title

1

Gravely T700-389D

SEAT PIVOT PLATE

$

$

Not available

2

Gravely 04054351

BENCH SEAT WELDMENT

$

$

Not available

3

Gravely 05958700

BOLT, HEX .44-14 X 1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

4

802-185C

HFSS 3/8-16 X 3/4 LG

$

$

Not available

5

Gravely 07049600

BOLT, SERRATED HEX FLANGE WASHER HEAD .312-18 x .75

$2.99

$

In Stock, Qty 5

0

6

Gravely 06543100

NUT, LOCKING TOP FLANGE .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06542000

NUT, HEX TOP FLANGE LOCK .38-16 PLT YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06501900

NUT, LOCKING TOP .437-14 GRC PL
(Superseded to 06536400)

$3.49

$

In Stock, Qty 10

0

9

Gravely 04313400

BENCH SEAT BACK

$

$

Not available

10

Gravely 04265200

BENCH SEAT BOTTOM

$

$

Not available

11

Gravely 04214851

SEAT BACK PANEL

$

$

Not available

12

Gravely 00181572

ASSEMBLY, SEATBELT

$111.99

$

Usually ships in 4-12 days

0

13

Gravely 04247151

SEAT BOTTOM PLATE

$

$

Not available
