996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Drive Belt Assembly Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

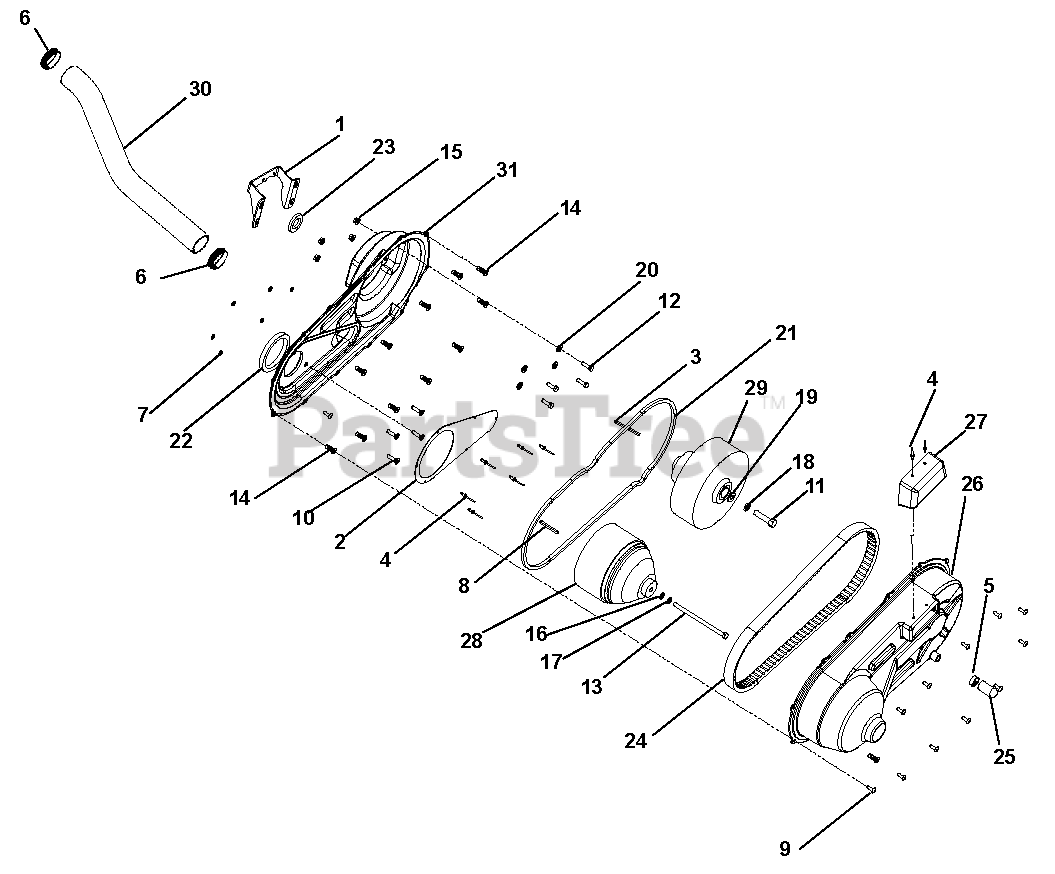

Drive Belt Assembly Parts Diagram

  • Title

1

Gravely T700-286D

BRACKET, CVT COVER TO TRANS.

$

$

Not available

2

Gravely 04070051

COVER, CVT INLET DUCT

$

$

Not available

3

Gravely T710-097D

KEY 3/16 X 3

$

$

Not available

4

Gravely T800-219C

RIVET POP 3/16 .126-.250

$

$

Not available

5

Gravely T800-235C

SPRING CLAMP 1" OD HOSE

$

$

Not available

6

Gravely T800-259C

CLAMP, HOSE,WRM DRV,1.81 X 2.75

$

$

Not available

7

Gravely T800-271C

RIVET POP WASHER 3/16

$

$

Not available

8

Gravely T800-350C

KEY, .187 X .247 X 2.5 LG

$

$

Not available

9

Gravely 06114400

SCREW, MCH .25-20 X .75 TXTR

$1.49

$

In Stock, only 2 left!

0

10

Gravely 05901425

BOLT, 5/16-24 X .75 HSFHCS (Apply Loc-Tite?)

Note: (Apply Loc-Tite?)

$

$

Not available

11

Gravely 05959800

BOLT, HEX .50-20 X 2.00 GR5 YWZC

$5.49

$

Usually ships in 4-12 days

0

12

Gravely 05946900

BOLT, HEX .31-18 X 1 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

13

Gravely T802-823C

HHCS 3/8-24 X 6 1/2 GR5 PLT

$

$

Not available

14

Gravely T803-131C

INSERT, 1/4-20 ARS4-420-280

$

$

Not available

15

Gravely 06543100

NUT, TOP LOCK FLANGE .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06436200

WASHER, FLAT .406 X .812 X .065 YWZC
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06308800

WASHER, LOCK .38 X .094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

18

Gravely 06307300

WASHER, LOCK .50 X .125 YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 10

0

19

Gravely 06441900

WASHER, FLAT .531 X 1.06 X .095 YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

20

Gravely T804-135C

WASHER, FLAT 5/16 NEOPRENE PLT

$

$

Not available

21

Gravely T816-469C

SEAL, MAIN TRUCK CVT HOUSING

$

$

Not available

22

Gravely 04062600

GASKET, CVT, FOAM

$

$

Not available

23

Gravely T816-471C

SEAL, CVT TO TRANSAXLE

$

$

Not available

24

Gravely T816-546C

BELT, CVT Ð LP3

$

$

Not available

25

Gravely T817-621C

CAP, DRAIN 7/8 OD PORT

$

$

Not available

26

Gravely T817-711C

ENCLOSURE, CVT OUTER

$201.99

$

Usually ships in 4-12 days

0

27

Gravely T817-712C

OUTLET DIVERTER, CVT

$

$

Not available

28

Gravely 04324900

DRIVER, POWERBLOC Ð LP3

$

$

Not available

29

Gravely T826-525C

DRIVEN, CVTECH POWERBLOC Ð LP3

$

$

Not available

30

Gravely 04235300

HOSE, CVT AIR INTAKE

$

$

Not available

31

Gravely T817-710C

CVT SHROUD, INNER

$118.99

$

Usually ships in 4-12 days

0
