996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Dump Bed Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

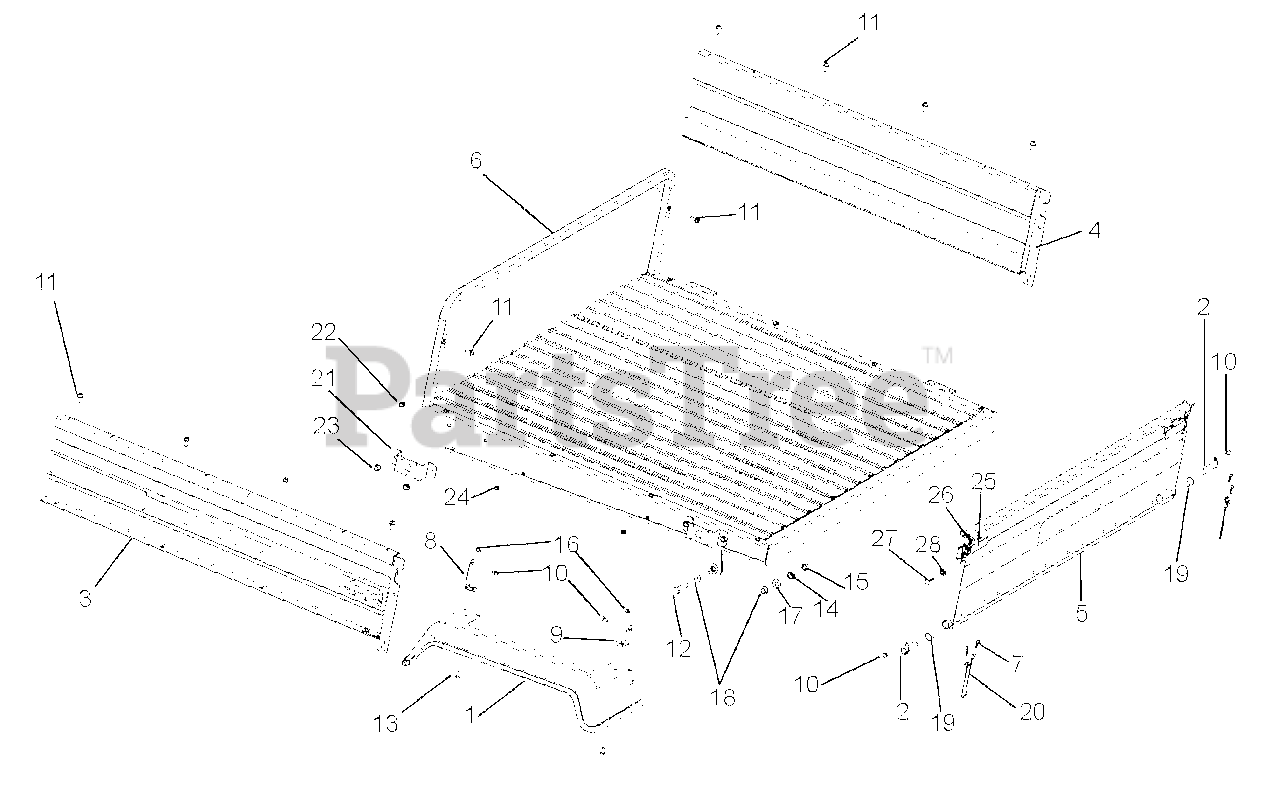

Dump Bed Parts Diagram

  • Title

1

Gravely T840-122C

FENDER BLACK UNIVERSAL TRUCK

$

$

Not available

2

Gravely T700-461H

WELDMENT, TAILGATE PIVOT

$

$

Not available

3

Gravely 50528011

KIT, LEFT HAND BED SIDE 4 X 2 Includes Decals (996123, 125)

Note: (996123, 125)

$

$

Not available

Gravely 50528001

KIT, LEFT HAND BED SIDE Includes Decals (996146)

Note: (996146)

$

$

Not available

Gravely 50528008

KIT, LEFT HAND BED SIDE CAMO Includes Camo Panel & Decals (996147)

Note: (996147)

$

$

Not available

4

Gravely 50528012

KIT, RIGHT HAND BED SIDE 4 X 2 Includes Decals (996123, 125)

Note: (996123, 125)

$

$

Not available

Gravely 50528002

KIT, RIGHT HAND BED SIDE Includes Decals (996146)

Note: (996146)

$

$

Not available

Gravely 50528009

KIT, RIGHT HAND BED SIDE CAMO Includes Camo Panel & Decals (996147)

Note: (996147)

$

$

Not available

5

Gravely 50528003

KIT, TAILGATE Includes Decals, Latch & Bushings (996123, 125, 146)

Note: (996123, 125, 146)

$

$

Not available

Gravely 50528010

KIT, TAILGATE Includes Decals, Latch & Bushings (996147)

Note: (996147)

$

$

Not available

6

04419051

BED BASE SUB-ASSEMBLY, BLACK

$

$

Not available

7

Gravely 06713500

PIN, HAIR INTERNAL .08 X .18 X 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

8

Gravely T700-588D

BRACKET, FENDER MOUNT FRONT

$

$

Not available

9

Gravely T700-590D

BRACKET, FENDER MOUNT REAR

$

$

Not available

10

Gravely 07430103

SCREW HEX SELF-TAP 1/4-20 X 1/2

$

$

Not available

11

Gravely 07049600

BOLT, SERHFWH .312-18 X .75 YWZC

$2.99

$

In Stock, Qty 5

0

12

Gravely T802-797C

HFS 1/2-13 X 2 1/4 GR5 PLT

$

$

Not available

13

Gravely 07051300

BOLT, SERHFWH .312-18 X .75 YWZC

$

$

Not available

14

Gravely 06536300

NUT, LOCK CENTER .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 16

0

15

Gravely 06529300

NUT, JAM .50-13 GR5
(Superseded to 06500911)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06543500

NUT, LOCKING TOP FLANGE .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 11

0

17

Gravely 06441900

WASHER, FLAT STEEL .531 X 1.06 X .095 YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

18

Gravely T817-559C

BUSHING, 1/2ID X 5/8OD X 1/2 FLANGE

$

$

Not available

19

Gravely T817-616C

BUSHING, .75D X .625ID X 1.5L WITH FLG

$

$

Not available

20

Gravely 04225300

TAILGATE CABLE

$

$

Not available

21

Gravely 04397500

BRACKET, TREKER, STAKE POCKET

$29.99

$

Usually ships in 4-12 days

0

22

Gravely 06535800

NUT, LOCKING NYLON .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 07028500

BOLT, SERRATED HEX FLANGE WASHER HEAD .38-16 X .75
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

24

Gravely 07051300

BOLT, SCREW HEX FLANGED WHIZ LOCK HEAD .25-20 X .62

$

$

Not available

25

Gravely 04215500

LATCH, TAILGATE

$

$

Not available

26

Gravely 04146751

SPACER, LATCH

$

$

Not available

27

Gravely 06200201

BOLT-ROUND HEAD SQUARE NECK 10-24X.75 GRADE 5 Y

$

$

Not available

28

Gravely 06536000

NUT-LOCKING-NYLON 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
