996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Parking Brake Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

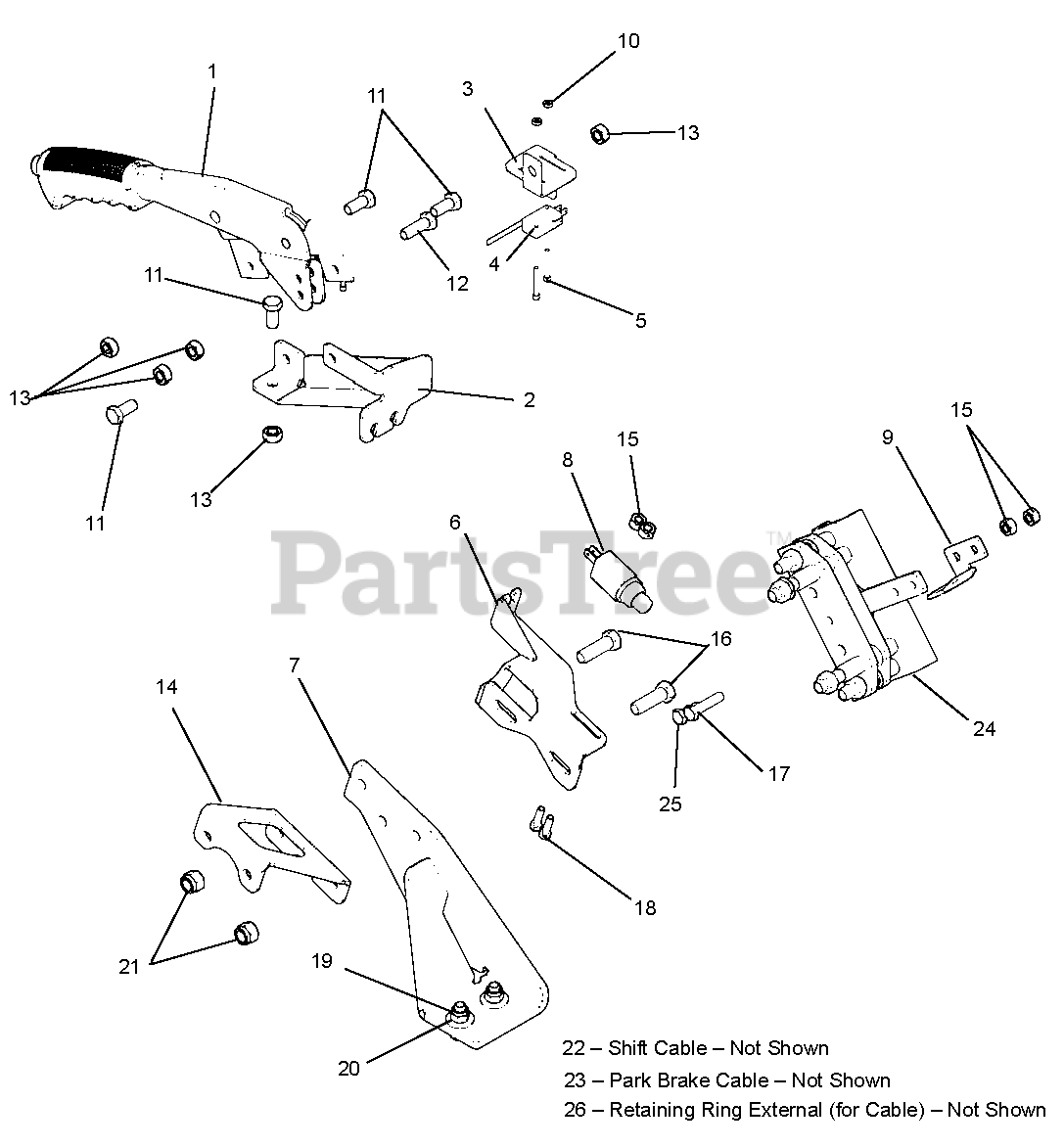

Parking Brake Parts Diagram

  • Title

1

Gravely T815-153C

PARK BRAKE LEVER

$83.99

$

Usually ships in 4-12 days

0

2

Gravely 04237551

BRACKET, E-BRAKE MNT

$

$

Not available

3

Gravely 04285851

BRACKET, PARK SWITCH

$

$

Not available

4

Gravely T833-330C

PARK BRAKE MICRO-SWITCH

$

$

Not available

5

Gravely T802-788C

HSHCS #4-40 X 1

$

$

Not available

6

Gravely 04282851

CABLE MNT, PARK BRAKE

$

$

Not available

7

Gravely 04274551

BRACKET, CALIPER MNT

$

$

Not available

8

Gravely 09251900

SWITCH, (N.O.) RUBBER SEALED

Note: (N.O.) RUBBER SEALED

$23.99

$

Usually ships in 4-12 days

0

9

Gravely 04314351

MOUNT, SWITCH, PARK BRAKE

$

$

Not available

10

Gravely 06545700

NUT, HEX 4-40 GR5 YWZC

$

$

Not available

11

Gravely 05947000

BOLT, HEX .31-18 X .75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05946900

BOLT, HEX .31-18 X 1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

13

Gravely 06529800

NUT, HEX CENTER LOCK .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 04274651

BRACE, CALIPER MNT, P-BRAKE

$

$

Not available

15

Gravely 06540500

NUT, LOCK CENTER H10-24 YWZC

$

$

Not available

16

Gravely 05958000

BOLT, HEX .38-16 X 1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

17

Gravely 05947400

BOLT, HEX .25-20 X 1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, Qty 7

0

18

Gravely 05920700

BOLT, HEX 10-24 X .75 PL GR2

$

$

Not available

19

Gravely 06530200

NUT, HEX NYLOCK .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06435700

WASHER, FLAT STEEL .38 X .875 X .083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06535800

NUT, HEX NYLOCK .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

22

Gravely T840-270C

SHIFT CABLE (Not Shown)

Note: (Not Shown)

$148.99

$

Usually ships in 4-12 days

0

23

Gravely T840-119C

PARK BRAKE CABLE 51.5" LG (Not Shown)

Note: (Not Shown)

$101.99

$

Usually ships in 4-12 days

0

24

Gravely T840-312C

BRAKE CALIPER

$

$

Not available

25

Gravely 05946800

BOLT, HEX .25-20 X .75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

26

Gravely T800-351C

RETAINING RING EXTERNAL

$

$

Not available
