996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Parking Brake Caliper Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

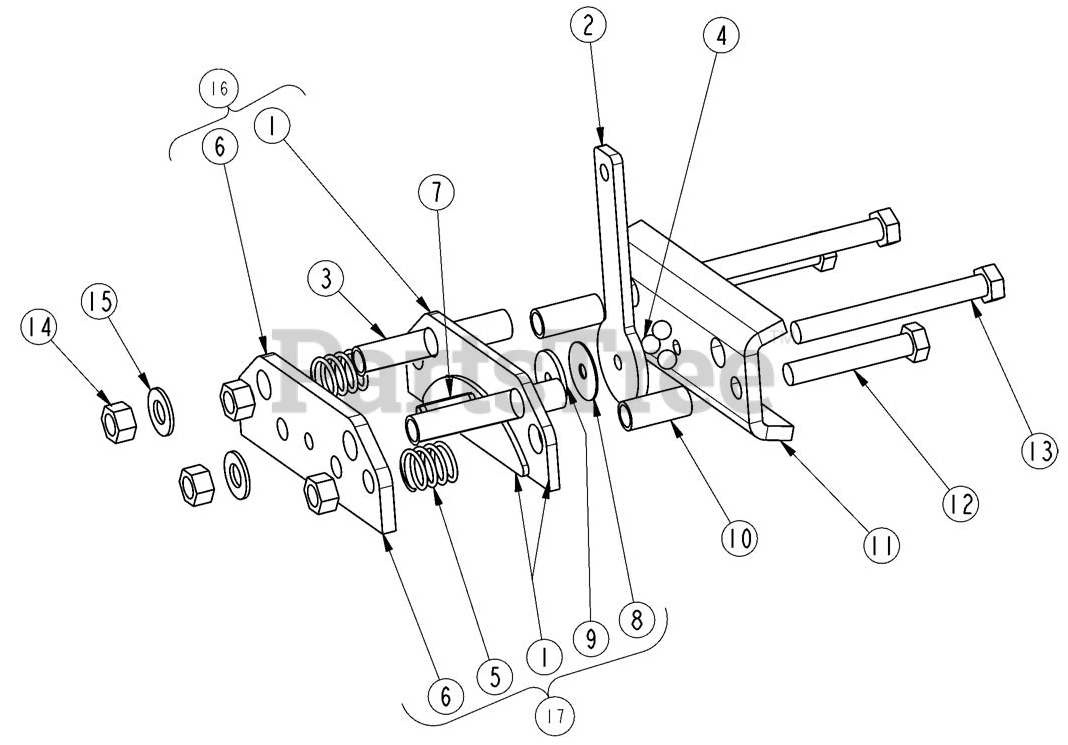

Parking Brake Caliper Parts Diagram

  • Title

--

Gravely T840-312C

BRAKE CALIPER

$

$

Not available

1

Gravely T82775

STATOR ASSEMBLY

$

$

Not available

2

Gravely T82779

LEVER

$

$

Not available

3

Gravely T82781

SLEEVE

$

$

Not available

4

Gravely T82785

STEEL BALL

$

$

Not available

5

Gravely T82788

COMPRESSION SPRING

$

$

Not available

6

Gravely T82960

STATOR ASSEMBLY

$

$

Not available

7

Gravely T82967

SPRING PIN SLOTTED

$

$

Not available

8

Gravely T82968

SHIM

$

$

Not available

9

Gravely T83113

THRUST WASHER

$

$

Not available

10

Gravely T83465

SLEEVE

$

$

Not available

11

Gravely T85578

STATIONARY ACTUATOR

$

$

Not available

12

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

13

Gravely T802-781C

HHCS 3/8-16X3 1/2 GR8 PLT

$

$

Not available

14

Gravely T803-123C

NUT HEX TOP LOCK 3/8-16 PLT

$

$

Not available

15

Gravely 06400216

WASHER, FLAT 3/8 SAE 02403

$

$

Not available

16

Gravely TPK-1660

BRAKE PAD REPLACEMENT KIT

Note: (Includes 1 and 6)

$

$

Not available

17

Gravely TPK-1584

CALIPER REPAIR KIT

Note: (Includes 1, 5, 6, 8 and 9)

$

$

Not available
