996124 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Bench Seat Parts Diagram

Treker Utility Vehicle, 4x2, Red

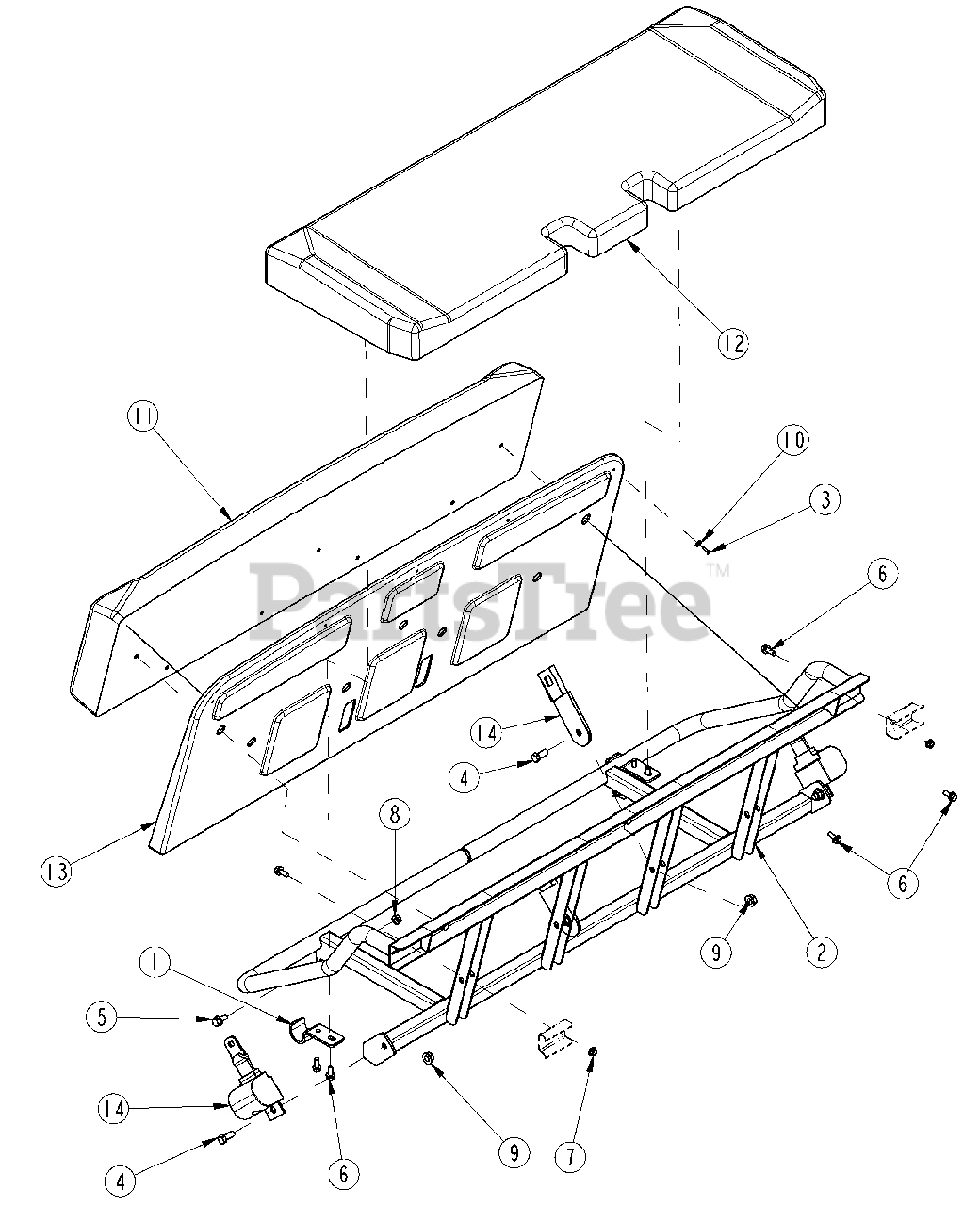

Bench Seat Parts Diagram

  • Title

1

700-389D

SEAT PIVOT PLATE

$

$

Not available

2

700-460H

BENCH SEAT WELDMENT

$

$

Not available

3

801-214C

SCREW, OVPH SM 8 X 3/4 SS

$

$

Not available

4

Gravely 05958700

BOLT, HEX 7/16-14 X 1 GR5
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

5

802-185C

HFSS 3/8-16X3/4 LG

$

$

Not available

6

802-387C

HFS 5/16-18X3/4 GR5

$

$

Not available

7

Gravely 803-177C

NUT HEX FLG TP LK 5/16-18ZNYCR

$

$

Not available

8

803-209C

NUT FLANGE LOCK 3/8-16 PLT

$

$

Not available

9

803-229C

NUT HEX FLANGE LOC 7/16-14 PLT

$

$

Not available

10

804-223C

WASHER, #8 FINISH CUP

$

$

Not available

11

839-409C

BENCH SEAT BACK TAN (ST)

Note: (ST)

$

$

Not available

12

840-317C

BENCH SEAT BACK CUSH, BLACK

$

$

Not available

13

839-410C

BENCH SEAT BOTTOM TAN (ST)

Note: (ST)

$

$

Not available

14

840-316C

BENCH SEAT BOTTOM CUSH, BLACK

$

$

Not available
