996124 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Brake System Rear Parts Diagram

Treker Utility Vehicle, 4x2, Red

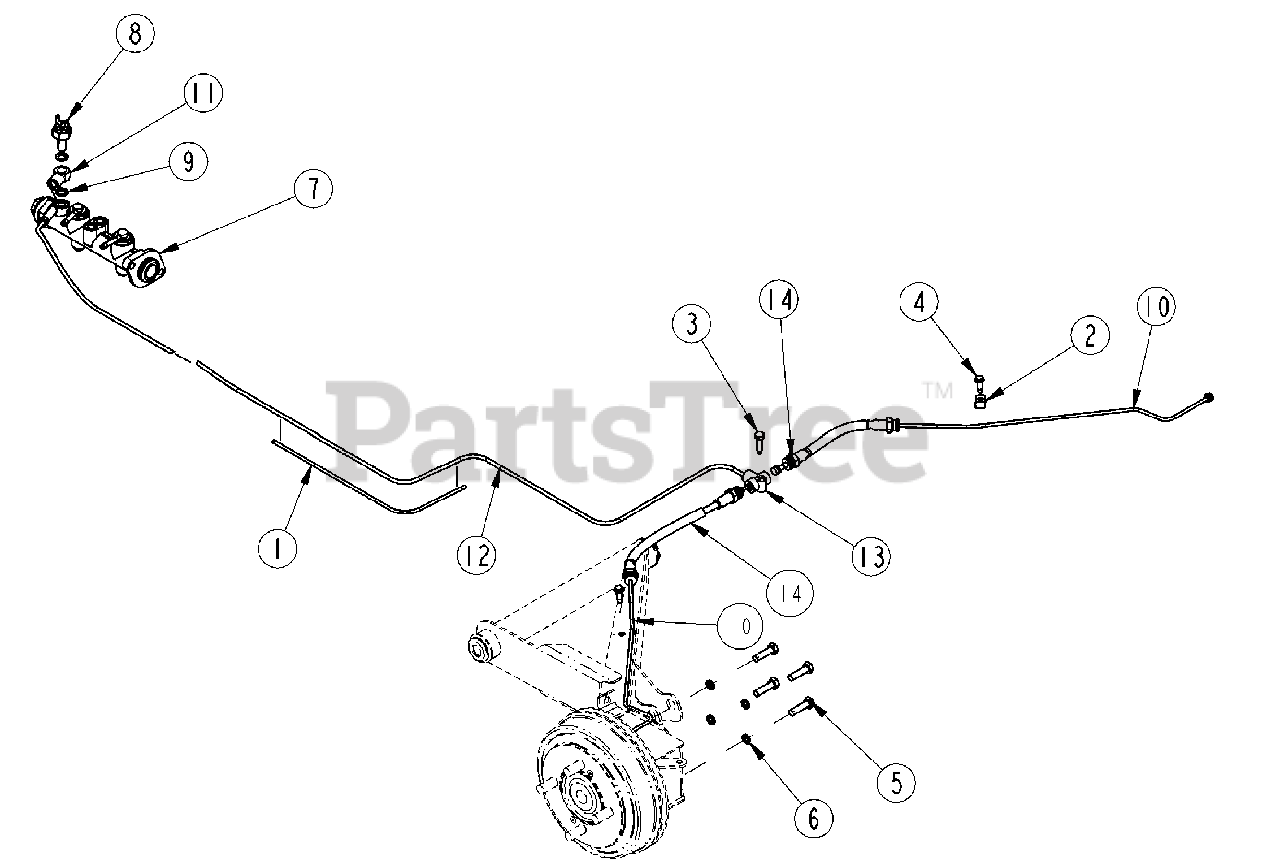

Brake System Rear Parts Diagram

  • Title

1

Gravely T700-454D

COVER, BRAKE LINE 13.5"

$

$

Not available

2

Gravely T800-347C

WIRING/TUBE CLIP FOR 1/4 OD

$

$

Not available

3

Gravely 07430102

SCREW HHC SELF-TAP 1/4-20X 1

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 06120224

HH DRILL SCREW 1/4 X 3/4LG

$

$

Not available

5

Gravely T802-731C

HHCS M8X1.25X30 GR10.9 YLW PLT

$

$

Not available

6

Gravely 06318200

WSHR-LK M8 YWZC

$0.99

$

Usually ships in 4-12 days

0

7

Gravely T815-156C

DUAL MASTER CYLINDER

$

$

Not available

8

Gravely T815-157C

MASTER CYLINDER PRESS. SWITCH

$

$

Not available

9

Gravely T815-158C

MSTR CYL CPPR WSHR 16X10X1.5MM

$

$

Not available

10

Gravely T815-165C

REAR, BRAKE HARD LINE

$

$

Not available

11

Gravely T815-167C

BULK HEAD FLOW THROUGH

$

$

Not available

12

Gravely T815-175C

BRAKE, LINE MAIN

$

$

Not available

13

Gravely T815-178C

FITTING 3 WAY HYD.

$

$

Not available

14

Gravely T815-211C

REAR RUBBER BRAKE LINE

$

$

Not available
