996124 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Cargo Box Components Parts Diagram

Treker Utility Vehicle, 4x2, Red

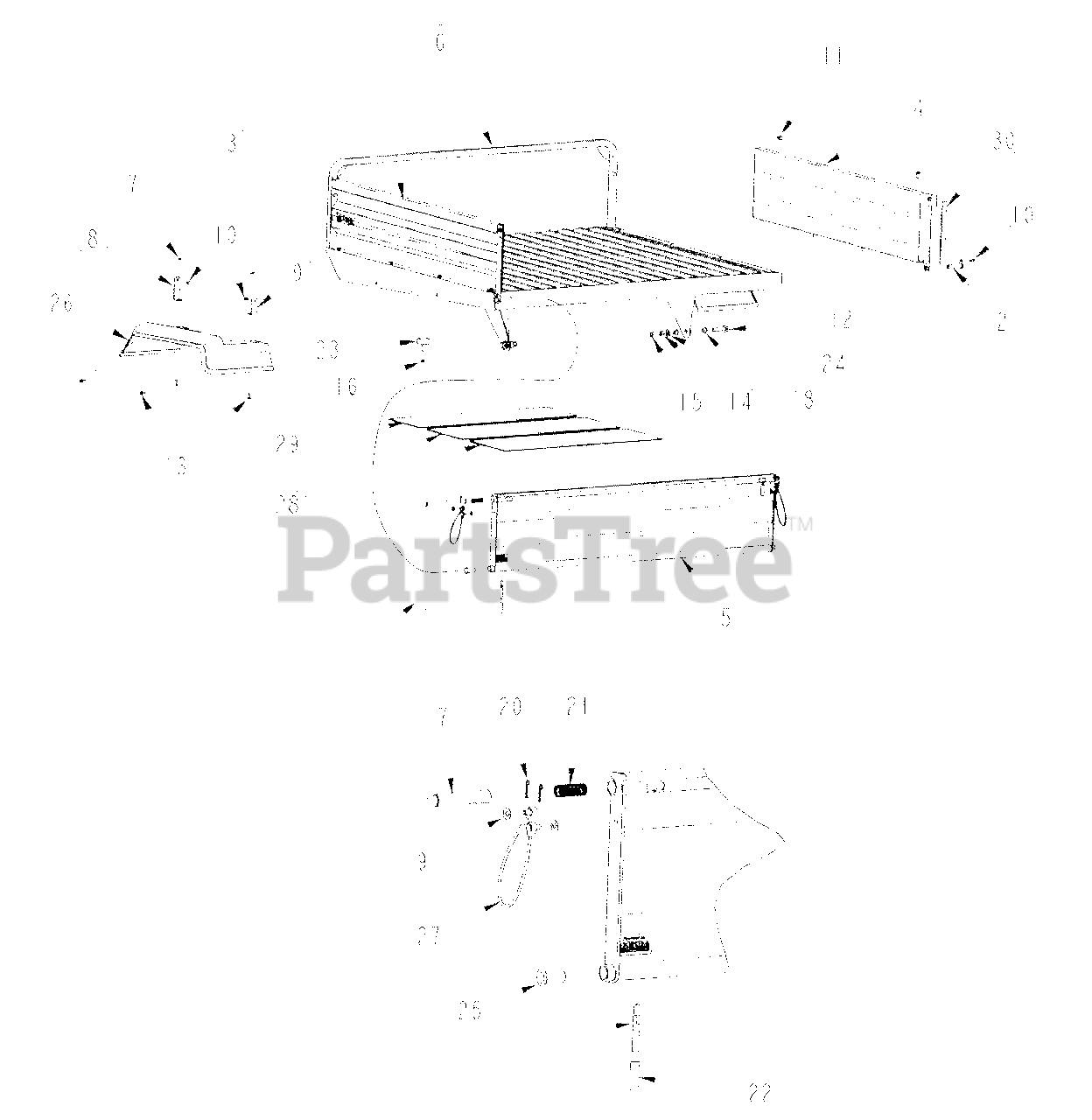

Cargo Box Components Parts Diagram

  • Title

1

700-318D

TAILGATE LATCH HANDLE

$

$

Not available

2

700-461H

WELDMENT, TAILGATE PIVOT

$

$

Not available

3

700-479V

LH BED SIDE ASSY, RED 4220 Includes Decals

$

$

Not available

700-480V

LH BED SIDE ASSY, RED 4420 Includes Decals

$

$

Not available

700-481V

LH BED SIDE ASSY, CAMO Includes Camo Panel & Decals

$

$

Not available

4

700-487V

RH BED SIDE ASSY, RED 4220 Includes Decals

$

$

Not available

700-488V

RH BED SIDE ASSY, RED 4420 Includes Decals

$

$

Not available

700-489V

RH BED SIDE ASSY, CAMO Includes Camo Panel & Decals

$

$

Not available

5

700-493V

TAILGATE ASSEMBLY, RED Includes Decals, Latch & Bushings

$

$

Not available

700-495V

TAILGATE ASSEMBLY, CAMO 4420 Includes Camo Panels, Decals, Latch & Bushings

$

$

Not available

6

700-499V

BED BASE SUB-ASSY, BLACK Includes Decals, Inserts & Heat Shielding

$

$

Not available

7

700-573D

LATCH PIN

$

$

Not available

8

700-588D

BRACKET, FENDER MOUNT FRONT

$

$

Not available

9

700-590D

BRACKET, FENDER MOUNT REAR

$

$

Not available

10

801-032C

SCREW HEX SELF-TAP 1/4-20X 1/2

$

$

Not available

11

802-387C

HFS 5/16-18X3/4 GR5

$

$

Not available

12

802-797C

HFS 1/2-13X2 1/4 GR5 PLT

$

$

Not available

13

802-811C

HFS 1/4-20X5/8 GR5 YLW

$

$

Not available

14

Gravely 803-019C

NUT LOCK 1/2-13 PLT

$

$

Not available

15

803-036C

NUT HEX JAM 1/2-13 PLT

$

$

Not available

16

803-068C

NUT HEX FLANGE 3/8-16 PLT

$

$

Not available

17

803-293C

NUT HEX FLNG T-LOCK 1/4-20 YLW

$

$

Not available

18

804-016C

WASHER FLAT 1/2 SAE PLT

$

$

Not available

19

Gravely 804-036C

WASHER FLAT 5/16 SAE PLT

$

$

Not available

20

805-302C

PIN HAIR COTTER .059W 15/16LG

$

$

Not available

21

807-250C

SPRING COMP .734ODX2.06X.072W

$

$

Not available

22

816-492C

RUBBER TAILGATE LATCH SLEEVE

$

$

Not available

23

816-560C

RUB. STOP 2" W/ 3/8X1.25 STUD

$

$

Not available

24

817-559C

BUSHING 1/2IDX5/8ODX1/2 FLANGE

$

$

Not available

25

817-616C

BEARING .75DX.625IDX1.5L W/FLG

$

$

Not available

26

840-122C

FENDER BLACK UNIVERSAL TRUCK

$

$

Not available

27

Gravely 840-289C

TRUCK TAILGATE CABLE

$

$

Not available

28

840-318C

HEAT SHIELD / INSUL BED

$

$

Not available

29

840-320C

HEAT SHIELD / INSUL BED FRONT

$

$

Not available

30

990-235R

SPONGE RUBBER, 1/4X3/4 W/PSA X 10" LG. Sold By The Foot

$

$

Not available

816-556C

BUMPER, CYLINDRICAL

$

$

Not available
