996125 (420 RT) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Rear Transaxle And Axle Shafts Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

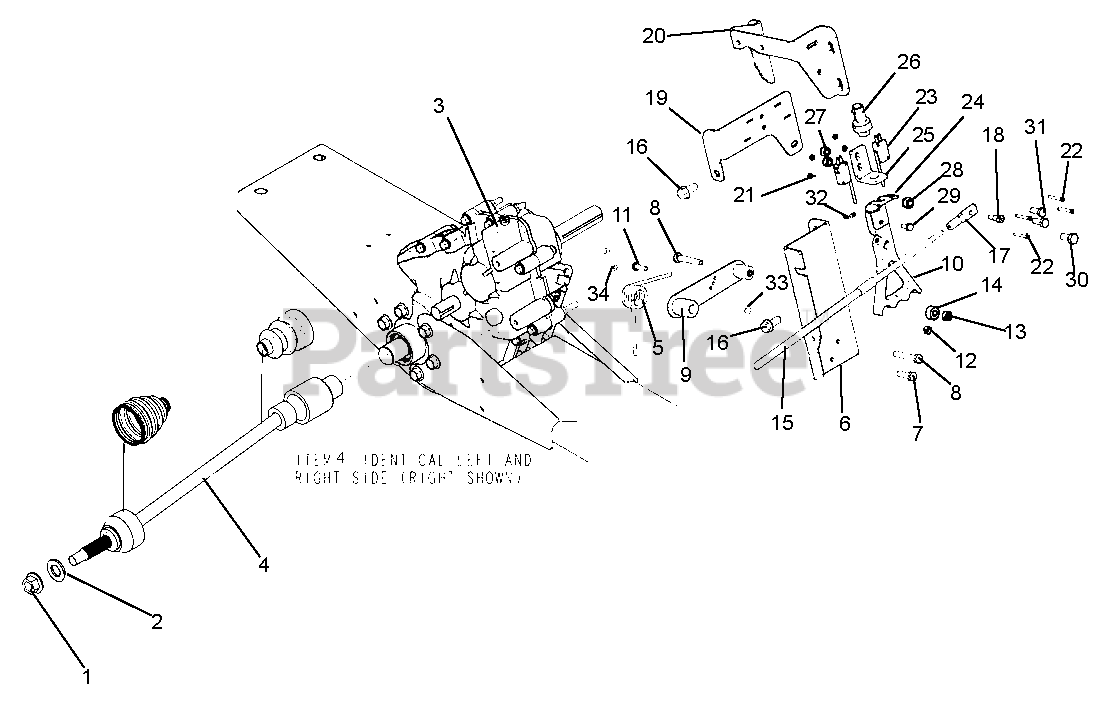

Rear Transaxle And Axle Shafts Parts Diagram

  • Title

1

Gravely T803-332C

NUT, HEX M16 X 1.5 TOP LOCK PLT

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 06439000

WASHER, FLAT STEEL .812 X 1.50 X .135 YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 17

0

3

Gravely T826-454C

TRANSAXLE WITH AUTO-LOCK DIFF.

$

$

Not available

4

Gravely T826-456C

REAR AXLE SHFT ST, 24T INT.SPL

$

$

Not available

5

Gravely 04261900

SPRING, TORSION, 1.058 X .777

$

$

Not available

6

Gravely 04264151

BRACKET, SHIFT

$

$

Not available

7

Gravely 05947700

BOLT, HEX .25-20 X 1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

8

Gravely 05964700

BOLT, HEX .25-20 X 1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 5

0

9

Gravely 04264651

FOLLOWER WLDT

$

$

Not available

10

Gravely 04263900

SHIFT CAM, TRANS SIDE

$

$

Not available

11

Gravely 06116900

SCREW, MCH 10-24 X .75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

12

Gravely 00964028

LOCKNUT, 10-24 CENTER
(Superseded to 06540500)

$

$

Not available

13

Gravely 06529700

NUT, LOCKING CENTER .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 00191185

BEARING, BALL .250 X .688 X .313

$10.99

$

Usually ships in 4-12 days

0

15

Gravely T840-270C

SHIFT CABLE (DASH)

Note: (DASH)

$148.99

$

Usually ships in 4-12 days

0

16

Gravely T802-387C

HFS 5/16-18 X 3/4 GR5

$

$

Not available

17

Gravely 04187200

CABLE END

$40.99

$

Usually ships in 4-12 days

0

18

Gravely 07070101

BOLT, SHOULDER .25 X .375

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 04226851

BRACKET, MNT, SWITCH

$

$

Not available

20

Gravely T700-286D

BRACKET, CVT COVER TO TRANS.

$

$

Not available

21

Gravely 06545700

NUT, HEX 4-40 YWZC GR5

$

$

Not available

22

Gravely T802-788C

HSHCS #4-40 X 1

$

$

Not available

23

Gravely T833-330C

PARK BRAKE MICRO-SWITCH

$

$

Not available

24

Gravely 04314151

BRACKET, SWITCH ACTIVATING

$

$

Not available

25

Gravely 04314251

MOUNT, PLUNGER SWITCH

$

$

Not available

26

Gravely 00200412

SWITCH, NEUTRAL

$

$

Not available

27

Gravely 06531000

NUT, LOCKING NYLON .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

28

Gravely 06530200

NUT, LOCKING NYLON .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06116700

SCREW, MCH 10-24 X .50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 05947000

BOLT, HEX .31-18 X .75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 05946800

BOLT, HEX .25-20 X .75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

32

Gravely 06006000

SCREW, SET .25-28 X .375 SK CUP

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 04264300

BUSHING, 0253 X .495 X 1.0625

$

$

Not available

34

Gravely 06529700

NUT, LOCKING CENTER .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
