996126 - Ariens Contractor 2WD Utility Vehicle, Subaru EH65 (SN: 000101 - 019999) Instrument Panel Parts Diagram

Contractor 2WD Utility Vehicle, Subaru EH65

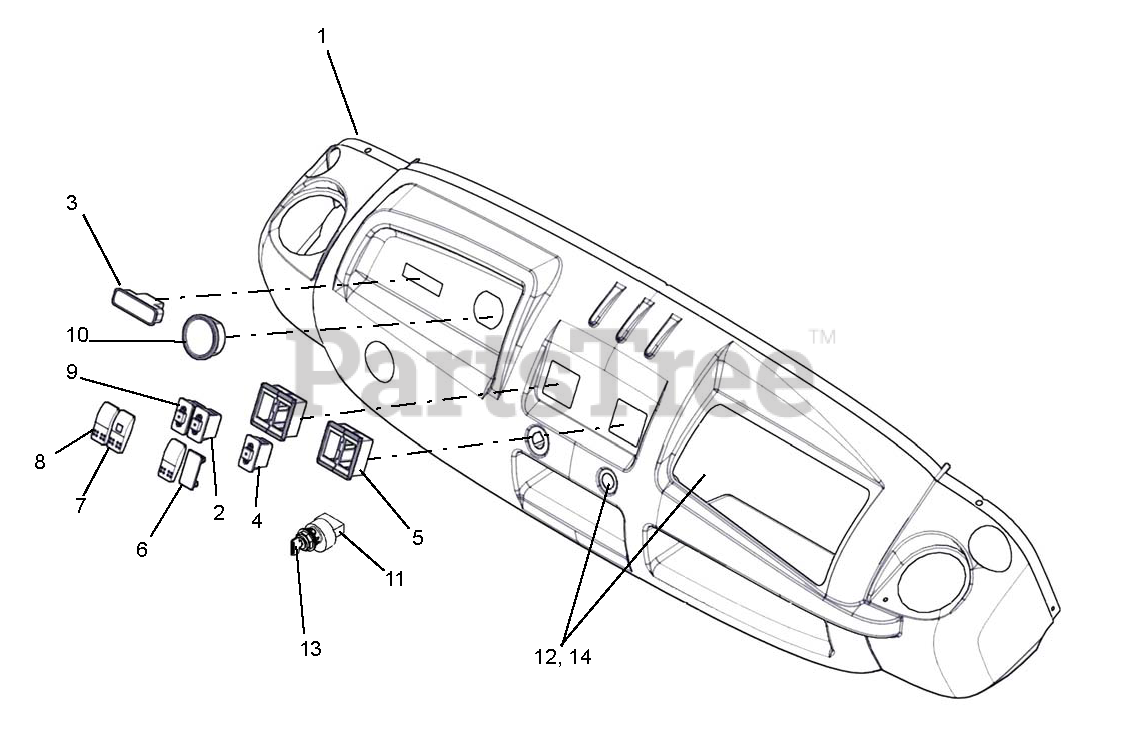

Instrument Panel Parts Diagram

  • Title

1

Ariens 04351100

ASSEMBLY,DASH/GLOVEBOX

$

$

Not available

2

Ariens 04322200

SWITCH,4X4,LIGHTED

Note: (996148)

$22.99

$

Usually ships in 4-12 days

0

3

Ariens 04198500

INDICATOR LAMP, 6 LENS

$73.99

$

Usually ships in 4-12 days

0

4

Ariens T833-254C

DUMP SWITCH WAYTEK 44304

$

$

Not available

5

Ariens T833-267C

SWITCH MOUNT END

$

$

Not available

6

Ariens T833-268C

PANEL PLUG

$

$

Not available

7

Ariens 04322300

ACTUATOR,SWITCH,4X4

Note: (996148)

$9.99

$

Usually ships in 4-12 days

0

8

Ariens T833-271C

SWITCH ACTUATOR

$

$

Not available

9

Ariens 04322500

SWITCH,HEADLIGHT

$

$

Not available

10

Ariens 04053800

GAUGE, FUEL/HOUR METER

$

$

Not available

11

Ariens T833-336C

IGNITION SWITCH W/2 KEYS(6PIN)

Note: (6PIN)

$83.99

$

In Stock, only 2 left!

0

12

Ariens 04345600

POWER OUTLET, 12VOLT

$

$

Not available

13

Ariens T833-342C

KEY W/SHIELD

Note: (RP FOR T833-336C)

$26.99

$

Usually ships in 4-12 days

0

14

Ariens 04345610

CAP, 12V OUTLET

$

$

Not available
