996126 - Ariens Contractor 2WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Drive Belt Assembly Parts Diagram

Contractor 2WD Utility Vehicle, Subaru EH65

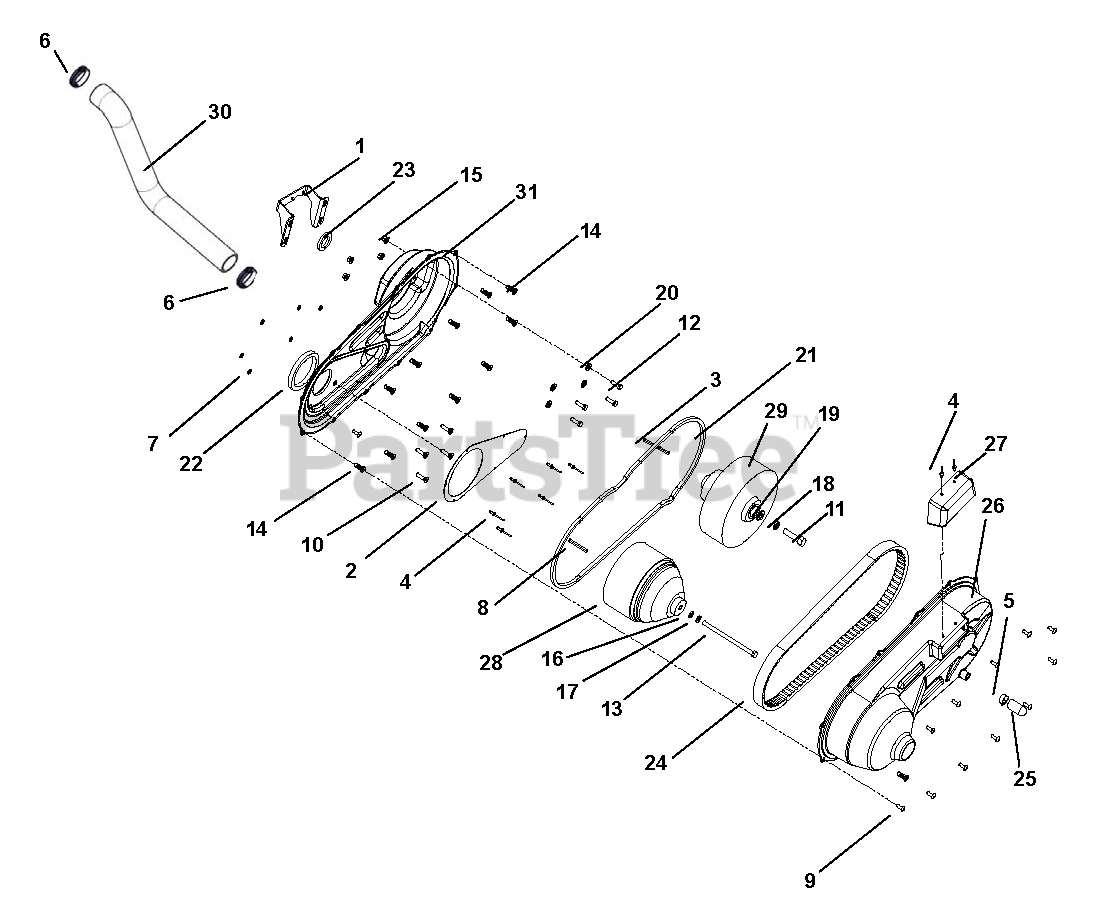

Drive Belt Assembly Parts Diagram

  • Title

1

Ariens T700-286D

BRACKET, CVT COVER TO TRANS.

$

$

Not available

2

Ariens 04070051

INLET DUCT, CVT

$

$

Not available

3

Ariens T710-097D

KEY 3/16 X 3

$

$

Not available

4

Ariens T800-219C

RIVET POP 3/16 .126-.250

$

$

Not available

5

Ariens T800-235C

SPRING CLAMP 1" OD HOSE

$

$

Not available

6

Ariens T800-259C

CLAMP,HOSE,WRM DRV,1.81X2.75

$

$

Not available

7

Ariens T800-271C

RIVET POP WASHER 3/16

$

$

Not available

8

Ariens T800-350C

KEY .187 X .247 X 2.25 LG

$

$

Not available

9

Ariens 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$0.99

$

In Stock, Qty 17

0

10

Ariens 05901425

BOLT, 5/16-24 X .75 HSFHCS

Note: (Apply Loc-Tite?)

$

$

Not available

11

Ariens 05959800

BLT-HEX .50-20X2.0 GR5 YWZC

$4.99

$

Usually ships in 4-12 days

0

12

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

13

Ariens T802-823C

HHCS 3/8-24X6 1/2 GR5 PLT

$

$

Not available

14

Ariens T803-131C

INSERT, 1/4-20 ARS4-420-280

$

$

Not available

15

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

18

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

19

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

20

Ariens T804-135C

WASHER FLAT 5/16 NEOPRENE PLT

$

$

Not available

21

Ariens T816-469C

SEAL, MAIN TRUCK CVT HOUSING

$

$

Not available

22

Ariens 04062600

GASKET, CVT, FOAM

$

$

Not available

23

Ariens T816-471C

SEAL, CVT TO TRANSAXLE

$

$

Not available

24

Ariens T816-546C

BELT, CVT -LP3

$

$

Not available

25

Ariens T817-621C

CAP, DRAIN 7/8 OD PORT

$

$

Not available

26

Ariens T817-711C

ENCLOSURE, CVT OUTER

$188.99

$

Usually ships in 4-12 days

0

27

Ariens T817-712C

OUTLET DIVERTER, CVT

$

$

Not available

28

Ariens 04324900

CLUTCH,DRIVER,25MPH

$

$

Not available

29

Ariens T826-525C

DRIVEN, CVTECH POWERBLOC-LP3

$

$

Not available

30

Ariens 04235300

INTAKE TUBE, CVT ENCLOSURE

$

$

Not available

31

Ariens T817-710C

ENCLOSURE, CVT INNER

$113.99

$

Usually ships in 4-12 days

0
