996140 (440 R) - Gravely Treker Utility Vehicle, 4x4, Red (SN: 000101 - 019999) Engine Mount Parts Diagram

Treker Utility Vehicle, 4x4, Red

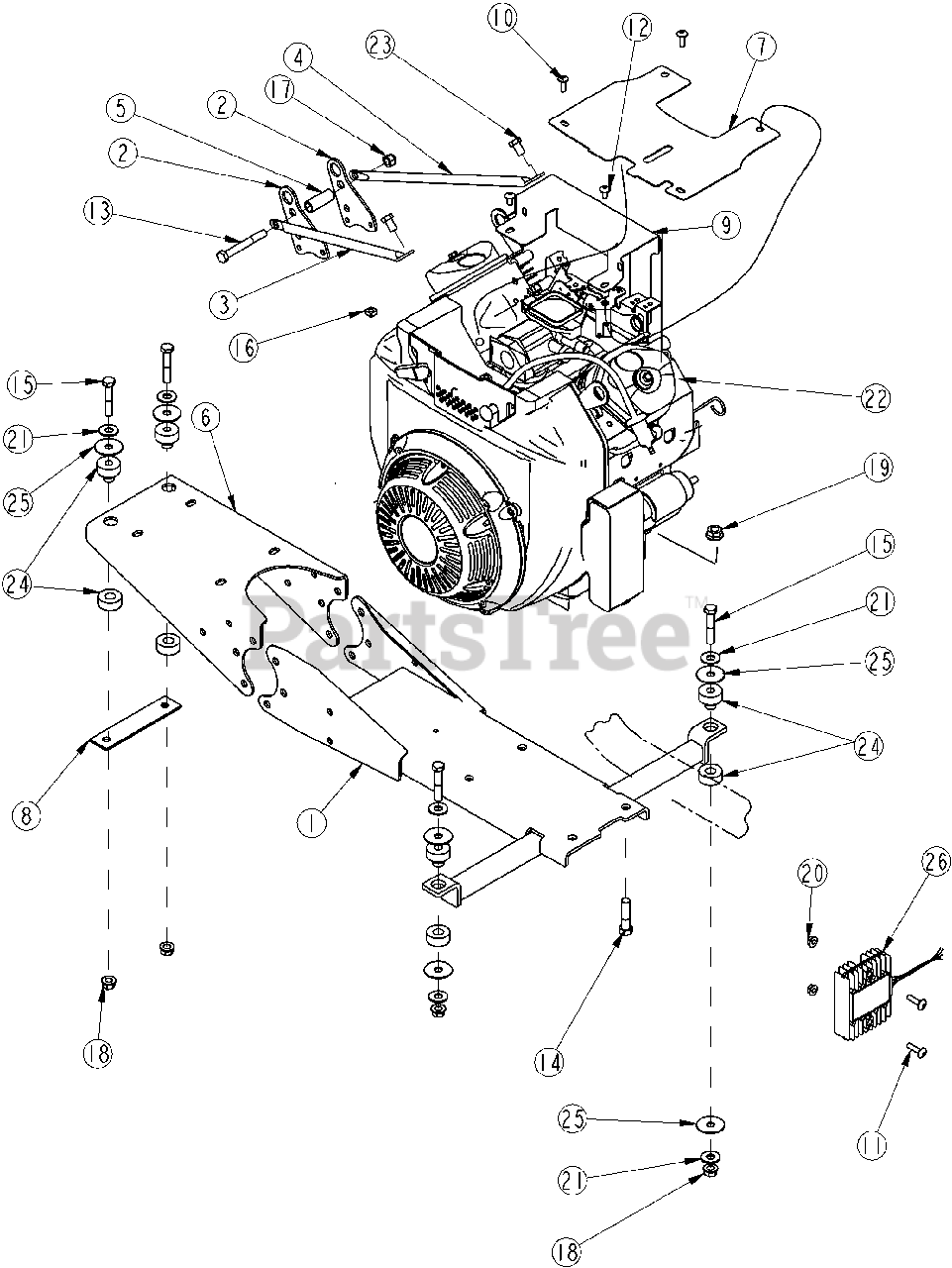

Engine Mount Parts Diagram

  • Title

1

700-059H

ENGINE MOUNT WELDMENT

$

$

Not available

2

700-074D

TRANS SUPPORT PLATE

$

$

Not available

3

700-075D

ENGINE SUPPORT TUBE, RIGHT

$

$

Not available

4

700-076D

ENGINE SUPPORT TUBE, LEFT

$

$

Not available

5

700-078D

SPACER

$

$

Not available

6

700-099D

TRANS MNT SUPPORT BRACKET ST

$

$

Not available

7

700-207S

COVER/ENGINE TOP ASSEMBLY

$

$

Not available

8

700-274D

SPACER PLATE, MOTOR MOUNT

$

$

Not available

9

700-356D

COVER THROTTLE LINKAGE

$

$

Not available

10

801-180C

TPHMS Y 1/4-20X3/4 YELLOW DIE

$

$

Not available

11

801-181C

TPHMS Y 1/4-20X1 YELLOW DIE

$

$

Not available

12

801-198C

TPHMS Y 1/4-20X1/2 YELLOW DIE

$

$

Not available

13

802-024C

HHCS 3/8-16X3 GR5

$

$

Not available

14

802-113C

HHCS 7/16-14X1 3/4 GR5

$

$

Not available

15

802-143C

HHCS 3/8-16X2 GR5

$

$

Not available

16

803-005C

NUT SQ 1/4-20 PLT

$

$

Not available

17

Gravely 803-078C

NUT LOCK 3/8-16 NYLON INSERT

$

$

Not available

18

803-209C

NUT FLANGE LOCK 3/8-16 PLT

$

$

Not available

19

803-229C

NUT HEX FLANGE LOC 7/16-14 PLT

$

$

Not available

20

803-293C

NUT HEX FLNG T-LOCK 1/4-20 YLW

$

$

Not available

21

804-011C

WASHER FLAT 3/8 USS PLT

$

$

Not available

22

826-413C

HONDA ENGINE 20HP TRUCK Non Warranty Replacement Part

$

$

Not available

23

839-122C

HFCS M8-1.25X20 10.9 HX FL ZN

$

$

Not available

24

840-080C

MOUNT MOTOR H SYTLE

$

$

Not available

25

Gravely 840-108C

WASHER FENDER 1.5OD X.4IDX.06T

$

$

Not available

26

840-142C

VOLTAGE REGULATOR FOR 826-41

$

$

Not available

--

--

Honda Engine Informatiom

$

$

Not available

--

--

NKG Spark Plug (Purchase Locally) BPR2ES NGK2015

Note: (Purchase Locally) BPR2ES NGK2015

$

$

Not available

--

--

Honda Snap Ring (Throttle Cable) 90605-230-000

Note: (Throttle Cable) 90605-230-000

$

$

Not available

--

--

Honda Jet Kit (Elevation 0-4,999 ft. (Factory 99201-ZG8-1050 Installed)

Note: (Elevation 0-4,999 ft. (Factory 99201-ZG8-1050 Installed)

$

$

Not available

--

--

Honda Jet Kit (Elevation 5,000-7,999 ft. 99201-ZG8-1020

$

$

Not available

--

--

Honda Jet Kit (Elevation 8,000 ft and up) 99201-ZG8-1000

Note: (Elevation 8,000 ft and up) 99201-ZG8-1000

$

$

Not available

--

831-038C

Honda Oil Filter *

$

$

Not available

--

700-245K

TREKER TUNE-UP KIT (5" FILTER)

Note: (5" FILTER)

$

$

Not available
