996140 (440 R) - Gravely Treker Utility Vehicle, 4x4, Red (SN: 000101 - 019999) Lower Control Arm Parts Diagram

Treker Utility Vehicle, 4x4, Red

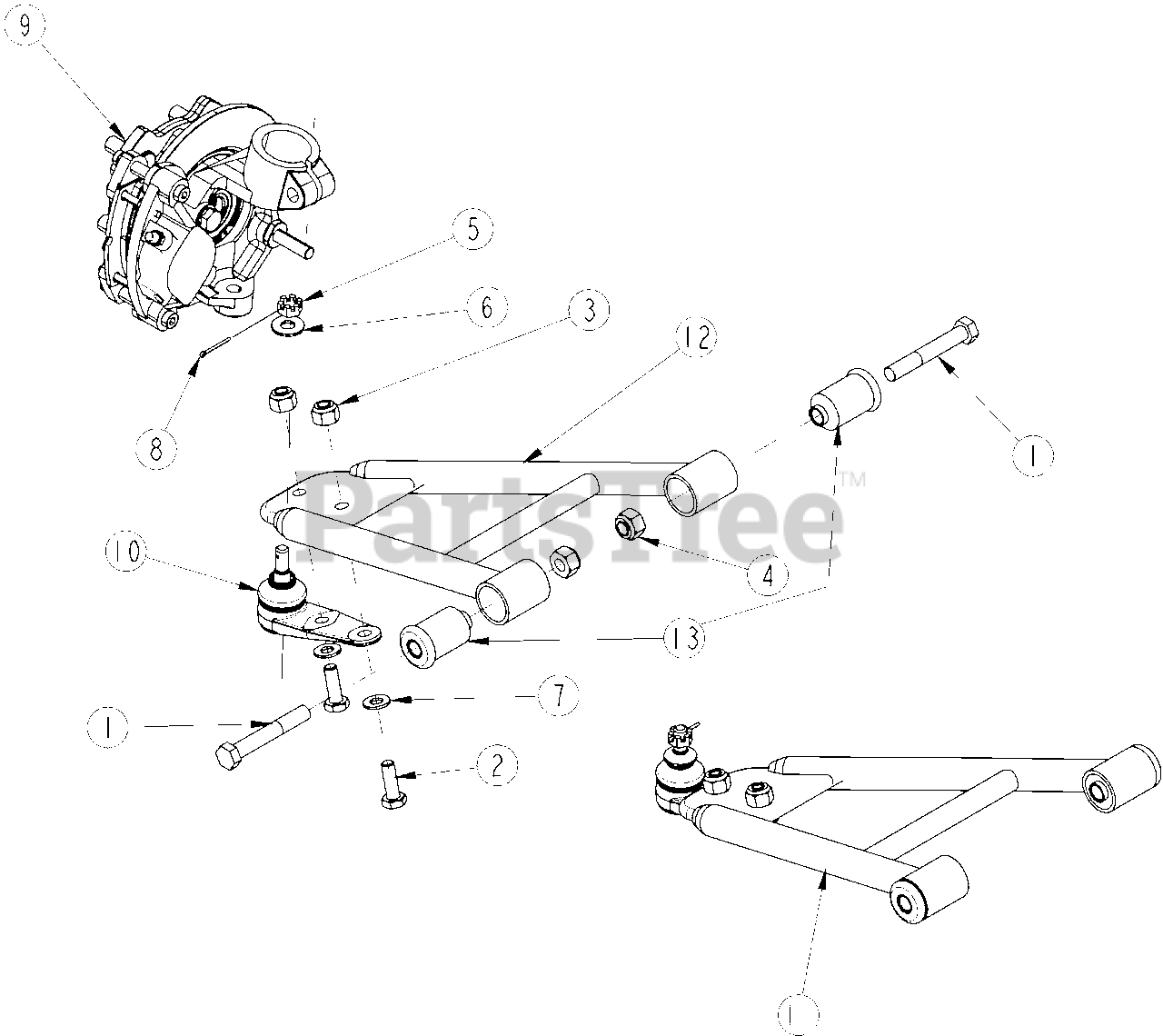

Lower Control Arm Parts Diagram

  • Title

1

Gravely 802-486C

HHCS M12X1.75X80 GR8.8 PLT

$

$

Not available

2

Gravely 05929100

HHCS M10X1.5X30 GR8.8

$

$

Not available

3

803-280C

NUT HEX NYLOCK M10X1.5 PLT

$

$

Not available

4

Gravely 803-281C

NUT HEX NYLOCK M12X1.75 PLT

$

$

Not available

5

803-341C

NUT HEX SLOTTED M10X1.25 PLT

$

$

Not available

6

804-011C

WASHER FLAT 3/8 USS PLT

$

$

Not available

7

Gravely 06435900

WASHER, FLAT STEEL .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

8

Gravely 06700117

PIN COTTER 3/32 X 1 LONG

$

$

Not available

9

815-143C

RH DISC BRAKE ASM 172mm W/JNT

$

$

Not available

9

815-144C

LH DISC BRAKE ASM 172mm W/JNT

$

$

Not available

10

840-137C

BALL JOINT BOLT ON SIR Includes No. 2, 3, 5, 6, 7, 8, 10, 11, 12 & 13

$

$

Not available

11

840-227C

A-ARM, RIGHT ASSEMBLY Includes No. 2, 3, 5, 6, 7, 8, 10, 11, 12 & 13

$

$

Not available

11

840-226C

A-ARM, LEFT ASSEMBLY

$

$

Not available

12

840-228C

A-ARM, NEW BUSHING

$

$

Not available

13

Gravely 840-229C

BUSHING, A-ARM

$14.99

$

Usually ships in 4-12 days

0
