996140 (440 R) - Gravely Treker Utility Vehicle, 4x4, Red (SN: 000101 - 019999) Parking Brake and Shifter Transaxle Parts Diagram

Treker Utility Vehicle, 4x4, Red

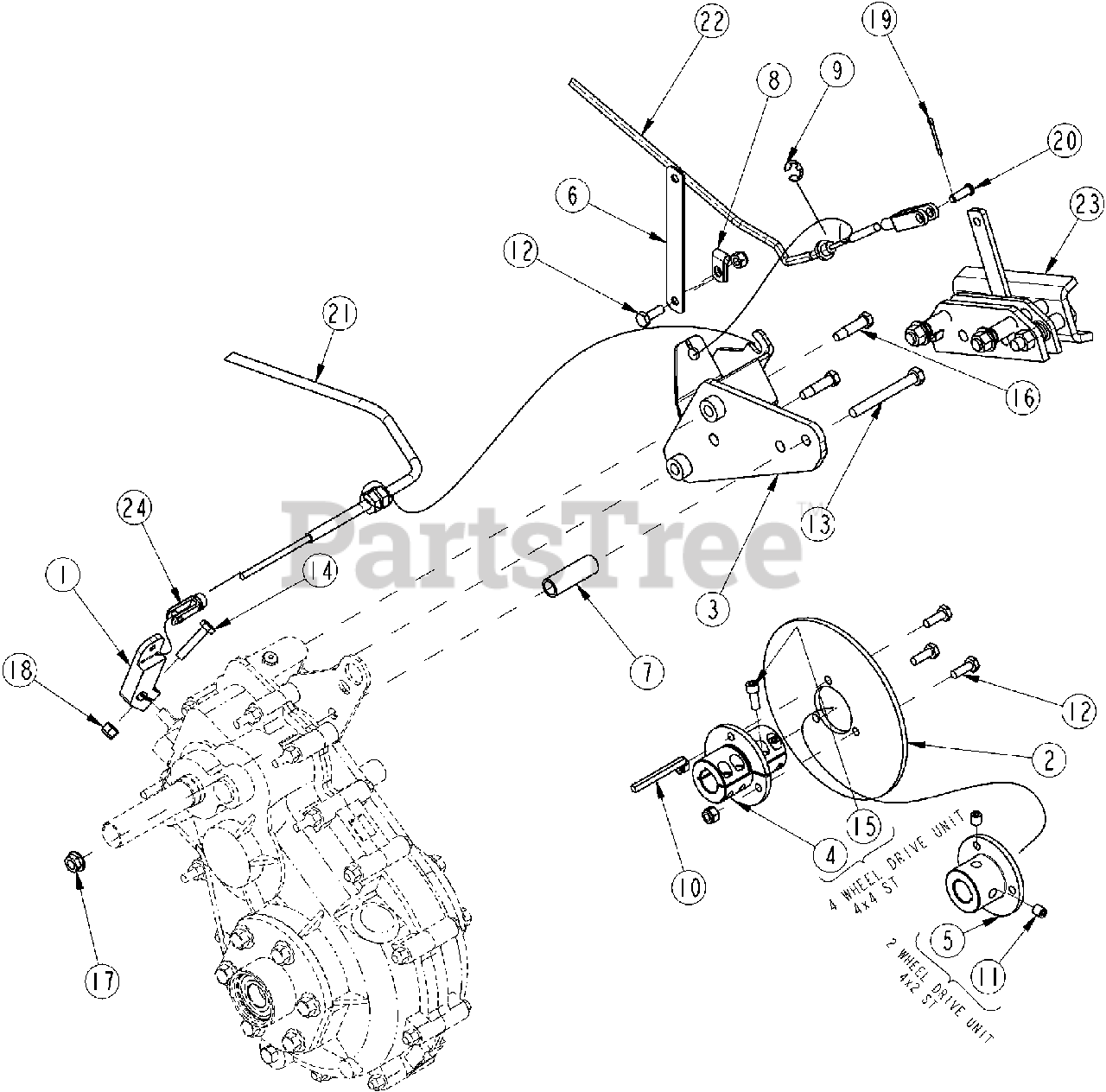

Parking Brake and Shifter Transaxle Parts Diagram

  • Title

1

Gravely 700-378D

SHIFT LEVER

$45.99

$

In Stock, only 1 left!

0

2

700-418D

BRAKE DISC

$

$

Not available

3

700-423H

CALIPER MOUNT BRACKET

$

$

Not available

4

700-446D

CLAMP COUPLING

$

$

Not available

5

700-449D

BRAKE HUB ADAPTER

$

$

Not available

6

700-524D

BRAKE CABLE CLIP PLATE

$

$

Not available

7

700-525D

CALIPER SPACER TUBE

$

$

Not available

8

800-347C

WIRING/TUBE CLIP FOR 1/4 OD

$

$

Not available

9

800-351C

E RETAINING RING EXTERNAL

$

$

Not available

10

800-366C

KEY .187 X .187 X 2.25 LG

$

$

Not available

11

801-035C

SCREW SET 5/16-18 SKT KP X 3/8

$

$

Not available

12

802-004C

HHCS 1/4-20X3/4 GR5

$

$

Not available

13

802-197C

HHCS 5/16-18X2 3/4 GR5

$

$

Not available

14

802-769C

HHCS 1/4-20X1 1/4 GR8

$

$

Not available

15

802-774C

HSHCS 1/4-28X5/8

$

$

Not available

16

802-809C

HWH 5/16-18X1 1/4 THREAD-ROLL

$

$

Not available

17

Gravely 803-177C

NUT HEX FLG TOP LK 5/16-18 YLW

$

$

Not available

18

Gravely 803-255C

NUT HEX NYLOCK 1/4-20

$

$

Not available

19

805-063C

PIN COTTER 3/32 X 1 LONG

$

$

Not available

20

805-342C

PIN CLEVIS 1/4 X 3/4

$

$

Not available

21

Gravely 840-270C

SHIFT CABLE (DASH)

Note: (DASH)

$

$

Not available

22

840-271C

PARK BRAKE CABLE 105.00" LG

$

$

Not available

23

840-312C

BRAKE CALIPER

$

$

Not available

24

890-884C

YOKE 10-32 W/ LOCK

$

$

Not available
